Issues following example docs
See original GitHub issueHi @anitagraser
I have been working through the examples at https://anitagraser.github.io/movingpandas/
It all works well except for the last couple of examples embedded in the images at the end of the page (for calculating stops and splits):
import pandas as pd
import geopandas as gp
import psycopg2
import movingpandas as mpd
from datetime import timedelta
con = psycopg2.connect(database="gis", user="docker", password="xxxxxxxxx",
host="db", sslmode="require")
sql = "select geom, id, device, event_datetime from owntracks.event order by event_datetime ASC"
df = gp.GeoDataFrame.from_postgis(sql, con, geom_col='geom' )
df.plot()
<AxesSubplot:>
traj = mpd.Trajectory(df, 1)
traj.plot()
<AxesSubplot:>

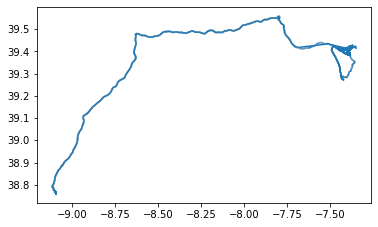

![output_6_1](https://user-images.githubusercontent.com/178003/136838243-33b1d04c-b6d5-43f7-9a3b-9be060c6d7b6.png)
traj.hvplot(geo=True, tiles=‘OSM’, line_width=5, frame_width=300, frame_height=300)
df.columns
Index(['geom', 'id', 'device', 'event_datetime'], dtype='object')
df
<div>
<style scoped>
.dataframe tbody tr th:only-of-type {
vertical-align: middle;
}
.dataframe tbody tr th {
vertical-align: top;
}
.dataframe thead th {
text-align: right;
}
</style>
geom | id | device | event_datetime | |
---|---|---|---|---|
0 | POINT (xxx,yyy) | 8807 | TP | 2021-09-21 18:41:26 |
1 | POINT (xxx,yyy) | 8814 | TP | 2021-09-21 18:41:26 |
2 | POINT (xxx,yyy) | 59819 | TP | 2021-09-21 18:41:26 |
3 | POINT (xxx,yyy) | 8849 | TP | 2021-09-21 18:41:26 |
4 | POINT (xxx,yyy) | 8869 | TP | 2021-09-21 18:41:26 |
... | ... | ... | ... | ... |
67954 | POINT (xxx,yyy) | 68106 | TP | 2021-10-11 19:18:44 |
67955 | POINT (xxx,yyy) | 68107 | TP | 2021-10-11 19:18:52 |
67956 | POINT (xxx,yyy) | 68108 | TP | 2021-10-11 19:18:57 |
67957 | POINT (xxx,yyy) | 68109 | TP | 2021-10-11 19:19:19 |
67958 | POINT (xxx,yyy) | 68110 | TP | 2021-10-11 19:19:19 |
67959 rows × 4 columns
</div>df = df.set_index('event_datetime')
tc = mpd.TrajectoryCollection(df, 'device')
daily = mpd.TemporalSplitter(tc).split(mode='day')
daily_lengths = [traj.get_length() for traj in daily]
daily_t = [traj.get_start_time() for traj in daily]
daily_lengths = pd.DataFrame(daily_lengths, index=daily_t, columns=['length'])
daily_lengths.hvplot(title='Daily trajectory length')
stops = mpd.TrajectoryStopDetector(traj).get_stop_segments(min_duration=timedelta(seconds=60), max_diameter=100)
---------------------------------------------------------------------------
TypeError Traceback (most recent call last)
![output_6_1](https://user-images.githubusercontent.com/178003/136837828-7e33ee95-99a4-4ceb-b414-f26ddb4051a7.png)

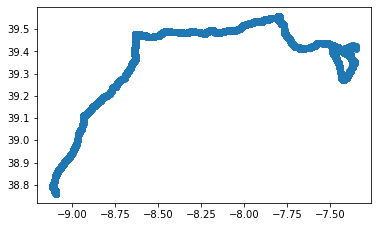

![output_4_1](https://user-images.githubusercontent.com/178003/136837832-2fa3cd33-ac43-43b3-a0b4-3411f83b84f4.png)
/tmp/ipykernel_235/1649748576.py in <module>
----> 1 stops = mpd.TrajectoryStopDetector(traj).get_stop_segments(min_duration=timedelta(seconds=60), max_diameter=100)
/opt/conda/lib/python3.9/site-packages/movingpandas/trajectory_stop_detector.py in get_stop_segments(self, max_diameter, min_duration)
113 >>> mpd.TrajectoryStopDetector(traj).get_stop_segments(min_duration=timedelta(seconds=60), max_diameter=100)
114 """
--> 115 stop_time_ranges = self.get_stop_time_ranges(max_diameter, min_duration)
116 return TrajectoryCollection(convert_time_ranges_to_segments(self.traj, stop_time_ranges))
117
/opt/conda/lib/python3.9/site-packages/movingpandas/trajectory_stop_detector.py in get_stop_time_ranges(self, max_diameter, min_duration)
41 """
42 if isinstance(self.traj, Trajectory):
---> 43 return self._process_traj(self.traj, max_diameter, min_duration)
44 elif isinstance(self.traj, TrajectoryCollection):
45 return self._process_traj_collection(max_diameter, min_duration)
/opt/conda/lib/python3.9/site-packages/movingpandas/trajectory_stop_detector.py in _process_traj(self, traj, max_diameter, min_duration)
80 segment_begin = segment_times[0]
81 if not is_stopped and previously_stopped:
---> 82 if segment_end - segment_begin >= min_duration: # detected end of a stop
83 detected_stops.append(TemporalRangeWithTrajId(segment_begin, segment_end, traj.id))
84 segment_geoms = []
TypeError: '>=' not supported between instances of 'int' and 'datetime.timedelta'
split = mpd.StopSplitter(traj).split(min_duration=timedelta(seconds=60), max_diameter=100)
---------------------------------------------------------------------------
TypeError Traceback (most recent call last)
/tmp/ipykernel_235/971365991.py in <module>
----> 1 split = mpd.StopSplitter(traj).split(min_duration=timedelta(seconds=60), max_diameter=100)
/opt/conda/lib/python3.9/site-packages/movingpandas/trajectory_splitter.py in split(self, **kwargs)
41 """
42 if isinstance(self.traj, Trajectory):
---> 43 return self._split_traj(self.traj, **kwargs)
44 elif isinstance(self.traj, TrajectoryCollection):
45 return self._split_traj_collection(**kwargs)
/opt/conda/lib/python3.9/site-packages/movingpandas/trajectory_splitter.py in _split_traj(self, traj, max_diameter, min_duration, min_length)
175 def _split_traj(self, traj, max_diameter, min_duration, min_length=0):
176 stop_detector = TrajectoryStopDetector(traj)
--> 177 stop_time_ranges = stop_detector.get_stop_time_ranges(max_diameter, min_duration)
178 between_stops = self.get_time_ranges_between_stops(traj, stop_time_ranges)
179 result = convert_time_ranges_to_segments(traj, between_stops)
/opt/conda/lib/python3.9/site-packages/movingpandas/trajectory_stop_detector.py in get_stop_time_ranges(self, max_diameter, min_duration)
41 """
42 if isinstance(self.traj, Trajectory):
---> 43 return self._process_traj(self.traj, max_diameter, min_duration)
44 elif isinstance(self.traj, TrajectoryCollection):
45 return self._process_traj_collection(max_diameter, min_duration)
/opt/conda/lib/python3.9/site-packages/movingpandas/trajectory_stop_detector.py in _process_traj(self, traj, max_diameter, min_duration)
80 segment_begin = segment_times[0]
81 if not is_stopped and previously_stopped:
---> 82 if segment_end - segment_begin >= min_duration: # detected end of a stop
83 detected_stops.append(TemporalRangeWithTrajId(segment_begin, segment_end, traj.id))
84 segment_geoms = []
TypeError: '>=' not supported between instances of 'int' and 'datetime.timedelta'
In terms of the data, the table schema looks like this:
Table "owntracks.event"
Column | Type | Collation | Nullable | Default
-----------------+-----------------------------+-----------+----------+---------------------------------------------
id | integer | | not null | nextval('owntracks.event_id_seq'::regclass)
geom | geometry(Point,4326) | | |
battery | integer | | not null |
velocity | double precision | | |
altitude | double precision | | not null |
course | double precision | | |
device | character varying(2) | | not null |
insert_datetime | timestamp without time zone | | not null | now()
event_datetime | timestamp without time zone | | |
trigger | character varying(1) | | |
battery_status | integer | | |
in_regions | text | | |
ssid | text | | |
bssid | text | | |
topic | text | | not null | 'none'::text
osm_road_id | integer | | |
has_road | boolean | | not null | false
Indexes:
"osm__geom_idx" gist (geom)
"owntracks_event_geom_idx" gist (geom)
Triggers:
nearest_road_to_event_trigger BEFORE INSERT OR UPDATE ON owntracks.event FOR EACH ROW EXECUTE FUNCTION nearest_road_to_event_trigger()
Issue Analytics
- State:
- Created 2 years ago
- Comments:5 (2 by maintainers)
Top Results From Across the Web
Common Problems with Google Docs - Zapier Help
Common Problems with Google Docs · My settings in Google Docs are not being respected when using the Create Document actions · My...
Read more >Troubleshoot Google Docs, Sheets, Slides & Forms error ...
If you get an error message such as "Something went wrong. Reload" or "Unable to load file" preventing you from making edits on...
Read more >Configuring issue templates for your repository - GitHub Docs
Under your repository name, click Settings. Repository settings button; In the "Features" section, under "Issues," click Set up templates. Start template setup ...
Read more >Issues API - GitLab Docs
Interact with GitLab Issues using the REST API. If a user is not a member of a private project, a GET request on...
Read more >Customer Care procedures & support activities - Google Cloud
Google Cloud posts information about known issues affecting its services as ... The following examples demonstrate possible reasons for escalating a case:.
Read more >Top Related Medium Post
No results found
Top Related StackOverflow Question
No results found
Troubleshoot Live Code
Lightrun enables developers to add logs, metrics and snapshots to live code - no restarts or redeploys required.
Start FreeTop Related Reddit Thread
No results found
Top Related Hackernoon Post
No results found
Top Related Tweet
No results found
Top Related Dev.to Post
No results found
Top Related Hashnode Post
No results found
Top GitHub Comments
Hello Anitagraser,
This has solved my issues thank you!
I think the input DataFrame may be missing the required DateTimeIndex. Can you double-check if you did to_datetime and set_index, as shown in the tutorials?
