`OP_INVOKEDYNAMIC` is not be handled correctly in `CallResolver`

I’m using CallResolver to make a call graph for CPA algorithm.

My Java source code:

List<String> names = new ArrayList();
names.add(request.getParameter("as"));
names.forEach(System.out::println);

Compiled bytecodes:

       200: getstatic     #214                // Field java/lang/System.out:Ljava/io/PrintStream;
       203: dup
       204: invokevirtual #220                // Method java/lang/Object.getClass:()Ljava/lang/Class;
       207: pop
       208: invokedynamic #229,  0            // InvokeDynamic #0:accept:(Ljava/io/PrintStream;)Ljava/util/function/Consumer;
       213: invokeinterface #230,  2          // InterfaceMethod java/util/List.forEach:(Ljava/util/function/Consumer;)V

When CallResolver run into line 208, it is handled in handleInvokeDynamic as follows:

    private void handleInvokeDynamic(CodeLocation location, InvokeDynamicConstant constant)
    {
        if (lambdaExpressionMap.containsKey(constant))
        {
            LambdaExpression target = lambdaExpressionMap.get(constant);
            addCall(location,
                    target.invokedClassName,
                    target.invokedMethodName,
                    target.invokedMethodDesc,
                    Value.NEVER,
                    Instruction.OP_INVOKEDYNAMIC,
                    false
            );
        }
        else
        {
            log.debug("invokedynamic without matching lambda expression at {}", location);
        }
    }

Notice that it using the target method and class info to create a call node instead of bootstrap method (factoryMethodDescriptor).

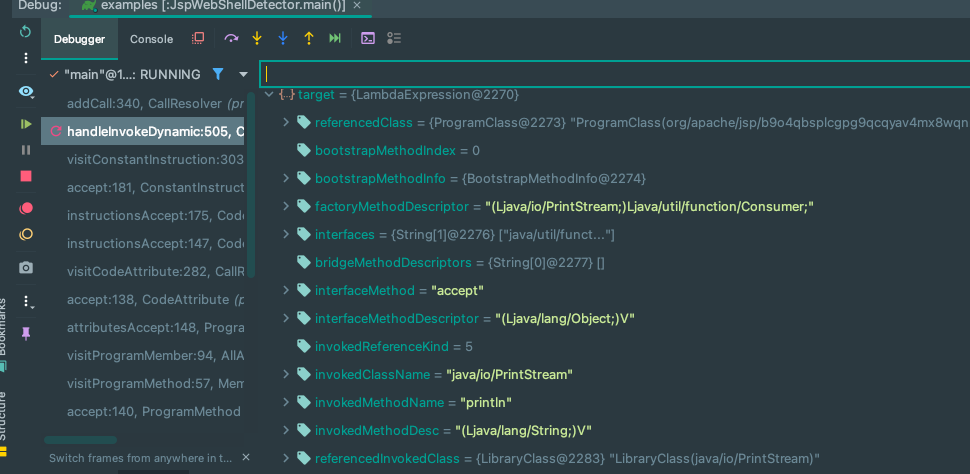

In my case:

And the problem is, when we taking this wrong call node to transfer state in CPA algorithm,

since the target invokedMethod returned the type V, so no callSite will be pushed in the frame. (makes the stack unbalanced)

Finally when arriving to JvmTransferRelation:processCall

operands.add(state.pop()); will pop from a null operands, so get CPA run stopped for the following error: null …

[Masrepus]

I see. For the time being, we use the CFA for modeling control flow information in CPA, which can be constructed e.g. with this utility method. But semantically it is equivalent to general control flow information, so you could theoretically also create the CFA inside your PartialEvaluator execution.

[t3ls]

Yes, I’m using PartialEvaluator not only for collecting particular values, but collecting control flow information in the meantime. So I prefer to reuse it in CPA.
