Creating own VMobjects

See original GitHub issue

I want to create an own VMobject. My code looks like this:

from manimlib.imports import *

class Myobject(VMobject):
    def __init__(self, offset, **kwargs):
        self.offset= offset
        VMobject.__init__(self, **kwargs)

    def generate_points(self):
        self.term = Square()
        self.term.set_style(fill_color=GREEN, fill_opacity=1)
        self.term.move_to(RIGHT*self.offset)
        self.add(self.term)


class MyExample(Scene):
    def construct(self):
        d1 = Square()
        d1.set_style(fill_color=GREEN, fill_opacity=1)
        self.add(d1)

        d2= Myobject(offset=3)
        self.add(d2)

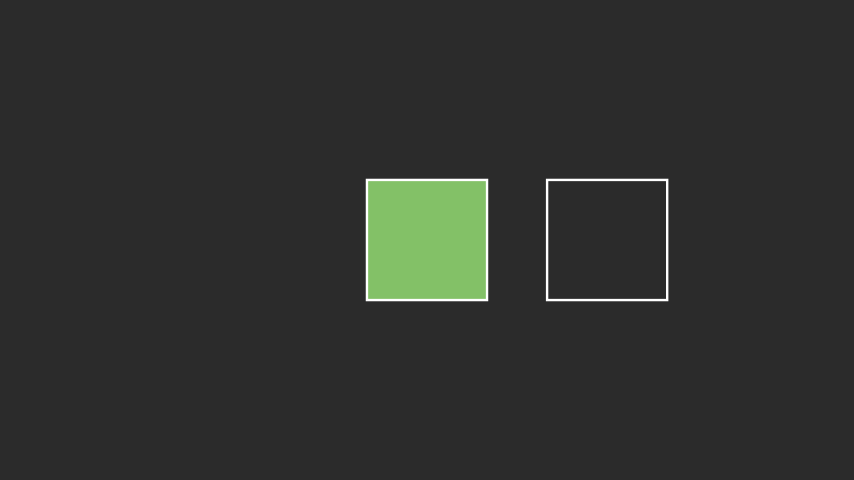

but the image looks like this Myexample Problem: The color is lost. I guess I have to add something like init_colors(). I am grateful for any advice

Issue Analytics

  • State:closed
  • Created 4 years ago
  • Comments:5 (4 by maintainers)

github_iconTop GitHub Comments

2reactions
Elteoremadebeethovencommented, Jul 9, 2019

I correct my previous comment, the reason why it does not recognize the color is due to the structure of Mobject (manimlib/mobject/mobject.py):

class Mobject(Container):
    """
    Mathematical Object
    """
    CONFIG = {
        "color": WHITE,
        "name": None,
        "dim": 3,
        "target": None,
    }

    def __init__(self, *submobjects, **kwargs):
        Container.__init__(self, *submobjects, **kwargs)
        if not all([isinstance(m, Mobject) for m in submobjects]):
            raise Exception("All submobjects must be of type Mobject")
        self.submobjects = list(submobjects)
        self.color = Color(self.color)
        if self.name is None:
            self.name = self.__class__.__name__
        self.updaters = []
        self.updating_suspended = False
        self.reset_points()
        self.generate_points()  # <- generate_points it is before init_colors
        self.init_colors()

Then, the correct way is:

class Myobject(VMobject):
    def __init__(self, offset, **kwargs):
        self.offset= offset
        VMobject.__init__(self, **kwargs)

    def generate_points(self):
        self.term = Square()
        self.term.move_to(RIGHT*self.offset)
        self.add(self.term)

    def init_colors(self):
        self.set_style(fill_color=GREEN, fill_opacity=1)

Please close the issue.

1reaction
Elteoremadebeethovencommented, Jul 9, 2019
class Myobject(VMobject):
    def __init__(self, offset, **kwargs):
        self.offset= offset
        VMobject.__init__(self, **kwargs)
        self.generate_points() #<- You forgot to add this line

    def generate_points(self):
        self.term = Square()
        self.term.set_style(fill_color=GREEN, fill_opacity=1)
        self.term.move_to(RIGHT*self.offset)
        self.add(self.term)

However, a more correct way to do this is:

class Myobject(Square):
    CONFIG={
        "fill_color":GREEN,
        "fill_opacity":1
    }
    def __init__(self, offset, **kwargs):
        Square.__init__(self, **kwargs)
        self.move_to(RIGHT*offset)


class MyExample(Scene):
    def construct(self):
        d1 = Square()
        d1.set_style(fill_color=GREEN, fill_opacity=1)
        self.add(d1)

        d2= Myobject(offset=3)
        self.add(d2)
