Shapes broken in Bodymovin

Tell us about your environment

macOS Mojave 10.14.5

• Browser and Browser Version:

Firefox 67.0.2 (64-bit)

• After Effects Version:

16.1.1 (Build 4)

What did you do? Please explain the steps you took before you encountered the problem.

• Installed Bodymovin via https://www.adobeexchange.com/creativecloud.details.12557.html (also tried from GitHub repo at https://github.com/airbnb/lottie-web/tree/master/build/extension)

• Opened stock animation teamwork_13.aep in After Effects

• Selected teamwork_13 in Bodymovin, selected Desktop as destination

• Pressed Render (using Demo setting)

• Realized shapes are broken opening demo.html in Firefox

• Looked at preview in Bodymovin, same issue

What did you expect to happen?

I expected the demo would look the same as exporting to video

What actually happened? Please include as much relevant detail as possible.

What it should look like:

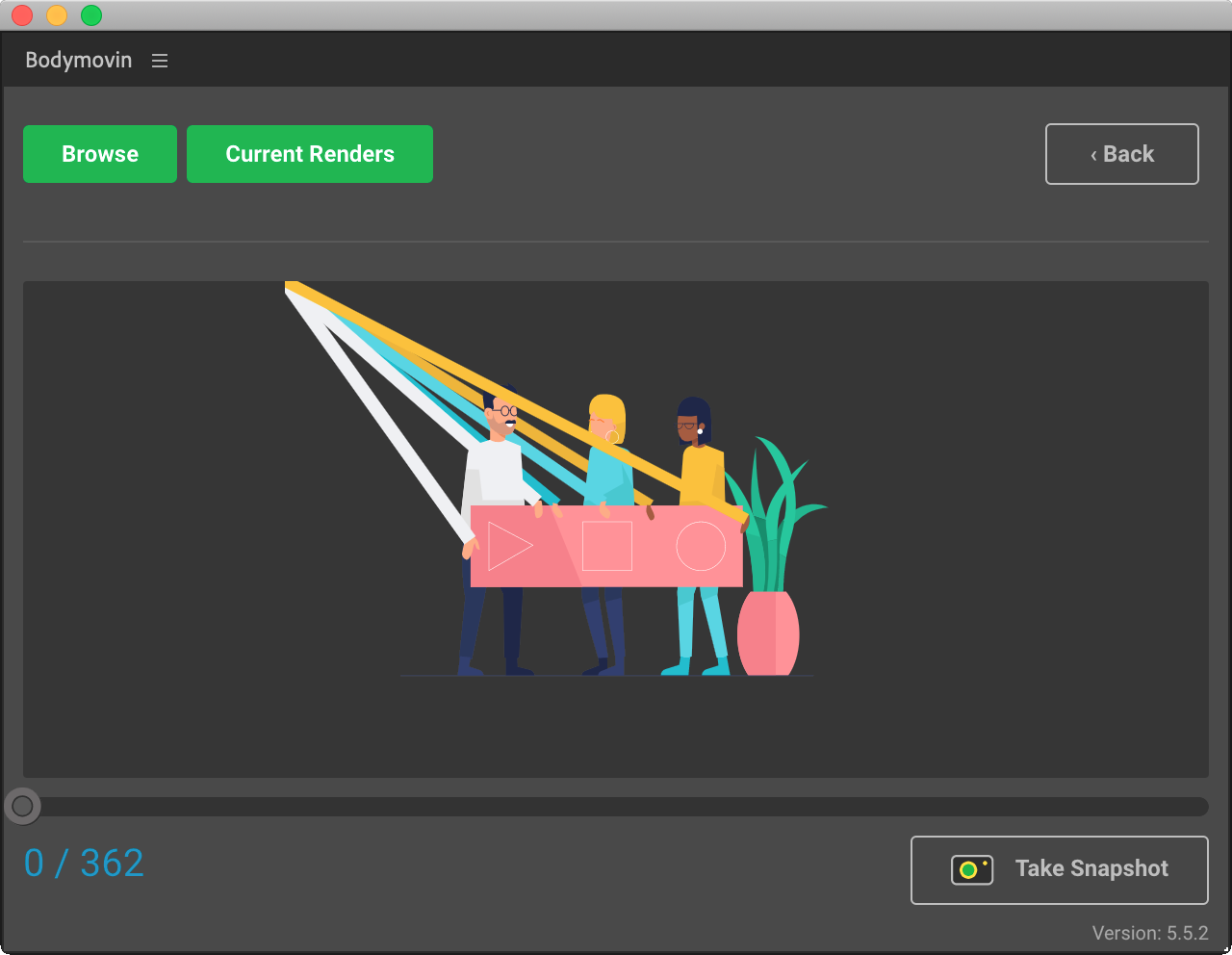

What it looks like in preview:

Probably a newbie config error but can’t figure it out after spending half an hour searching the web. Hope someone can help.

Please provide a download link to the After Effects file that demonstrates the problem.

https://sunknudsen.com/teamwork_13.aep

[Inventsable]

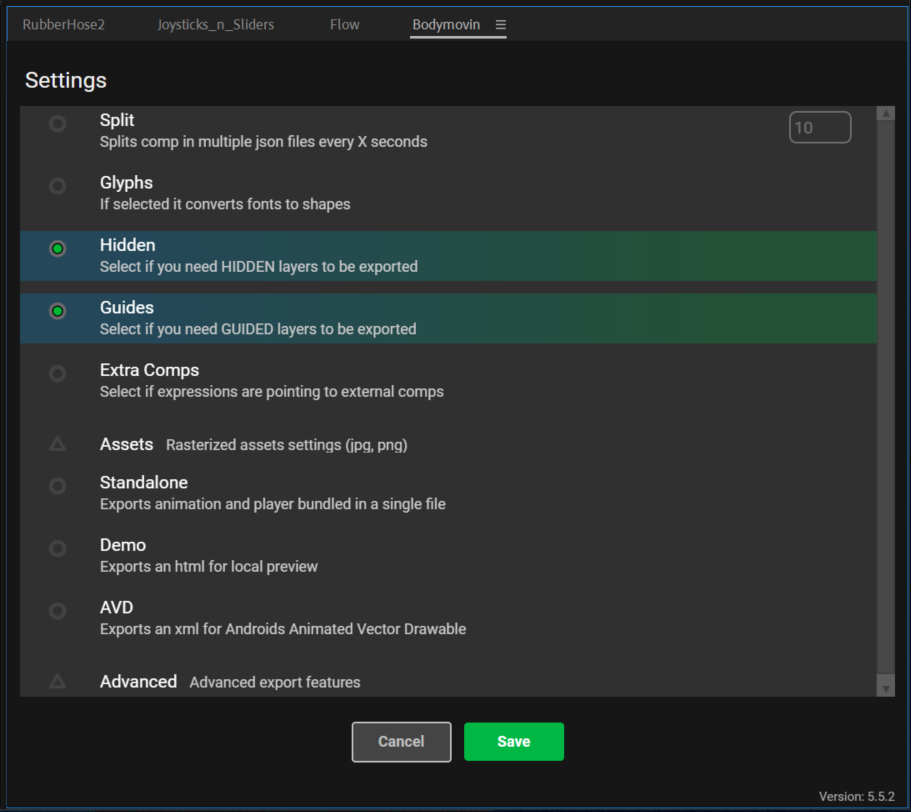

Hello, great art, and good news! It is indeed a very simple config error. Make sure that “Hidden” and “Guides” are enabled in your config:

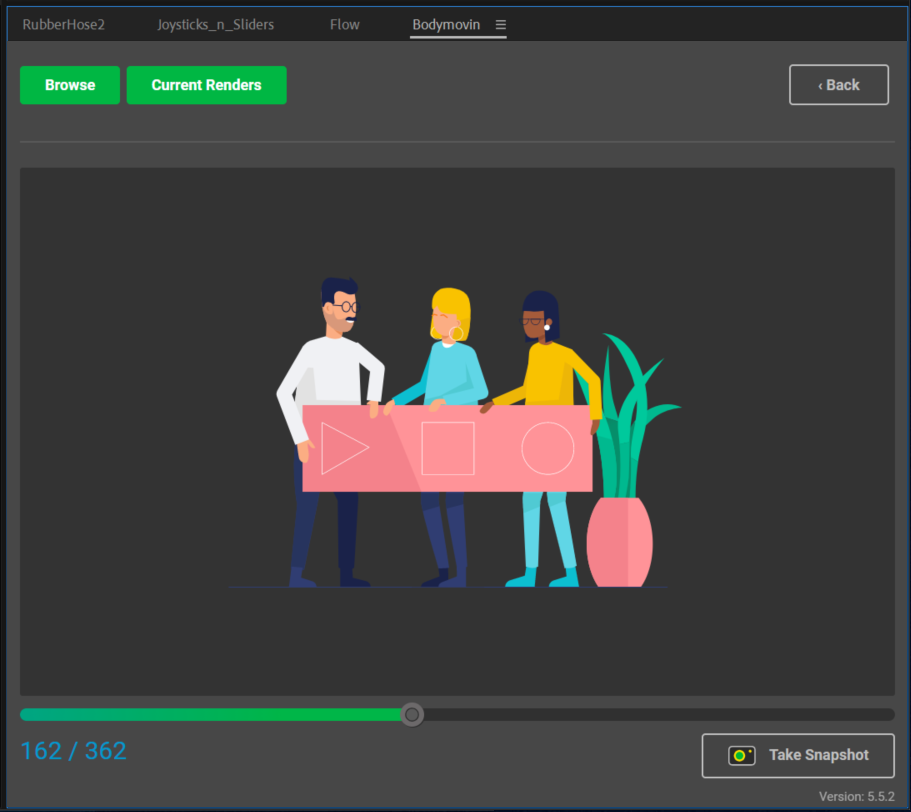

Which produces the correct positioning for limbs:

As a general rule of thumb, I’ve noticed that whenever I have layers/shapes unexpectedly going to the top left of the screen, it’s because I’m missing a layer in my parenting chain so it’s position defaults at [0,0]. In this instance, the BaseHose of a Rubberhose arm (the actual stroke) is trying to find two guide layers (Wrists and Shoulders) and use their positioning as a reference – but unless the config includes Guided layers, the Basehose doesn’t find any layer to correctly reference and defaults to [0,0] (which is the exact top-left corner of the animation).

[d-korolkov]

Hello, great art, and good news! It is indeed a very simple config error. Make sure that “Hidden” and “Guides” are enabled in your config:

Oh gush! Thanks a lot! Thought to open a new RubberHose/Lottie export issue topic but have found this one 😃
