amp-story: "lower-third" grid area incorrectly positioned

See original GitHub issue

This only appears to affect beta versions of Safari.

The “lower-third” grid area of the “thirds” template is not positioned in the bottom third of the viewport in beta versions of Safari. (Screenshots are from desktop Safari Technology Preview Release 49 (Safari 11.2, WebKit 13606.1.3.3); it has been reported that the version of Safari that ships with the beta version of iOS exhibits the same behavior.)

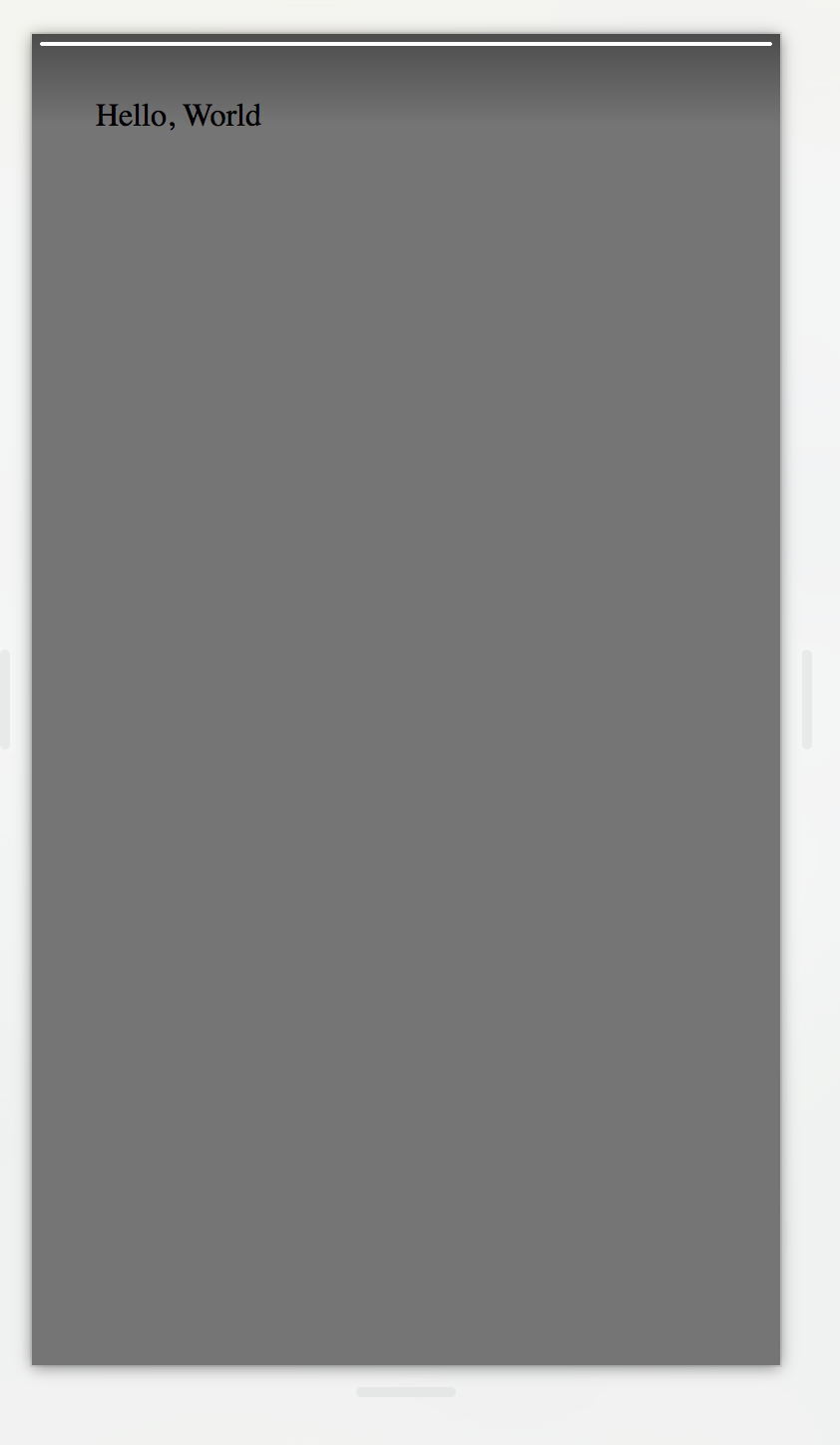

Actual (beta Safari):

Expected (stable Safari):

Source code:

<!doctype html>
<html amp lang="en">

<head>
  <meta charset="utf-8">
  <script async src="https://cdn.ampproject.org/v0.js"></script>
  <script async custom-element="amp-story" src="https://cdn.ampproject.org/v0/amp-story-0.1.js"></script>
  <link rel="canonical" href="http://foo.com/">
  <title>Hello, World</title>

  <meta name="viewport" content="width=device-width,minimum-scale=1,initial-scale=1">
  <style amp-boilerplate>body{-webkit-animation:-amp-start 8s steps(1,end) 0s 1 normal both;-moz-animation:-amp-start 8s steps(1,end) 0s 1 normal both;-ms-animation:-amp-start 8s steps(1,end) 0s 1 normal both;animation:-amp-start 8s steps(1,end) 0s 1 normal both}@-webkit-keyframes -amp-start{from{visibility:hidden}to{visibility:visible}}@-moz-keyframes -amp-start{from{visibility:hidden}to{visibility:visible}}@-ms-keyframes -amp-start{from{visibility:hidden}to{visibility:visible}}@-o-keyframes -amp-start{from{visibility:hidden}to{visibility:visible}}@keyframes -amp-start{from{visibility:hidden}to{visibility:visible}}</style><noscript><style amp-boilerplate>body{-webkit-animation:none;-moz-animation:none;-ms-animation:none;animation:none}</style></noscript>
</head>

<body>
  <amp-story standalone>
    <amp-story-page id="page0">
      <amp-story-grid-layer template="thirds">
        <div grid-area="lower-third">
          <p>Hello, World</p>
        </div>
      </amp-story-grid-layer>
    </amp-story-page>
  </amp-story>
</body>

</html>

Issue Analytics

State:
Created 6 years ago
Comments:12 (6 by maintainers)

Top GitHub Comments

4reactions

newmuiscommented, Oct 22, 2018

I’m sending a fix in #18871 that uses @droob’s solution (setting an explicit height) that appears to work. It will likely take a little over a week to make it to production.

Thanks @droob!

2reactions

matthewgcallahancommented, May 10, 2018

@newmuis I’m noticing this in production on stories like https://www.washingtonpost.com/graphics/2018/opinions/amp-stories/ann-telnaes-trump-russia/ with iOS 11.3.1

Are there any updates on this? We’ve often moved to just using vertical templates
