Media queries that contain `calc()` creates erroneous validation error

See original GitHub issue

Description

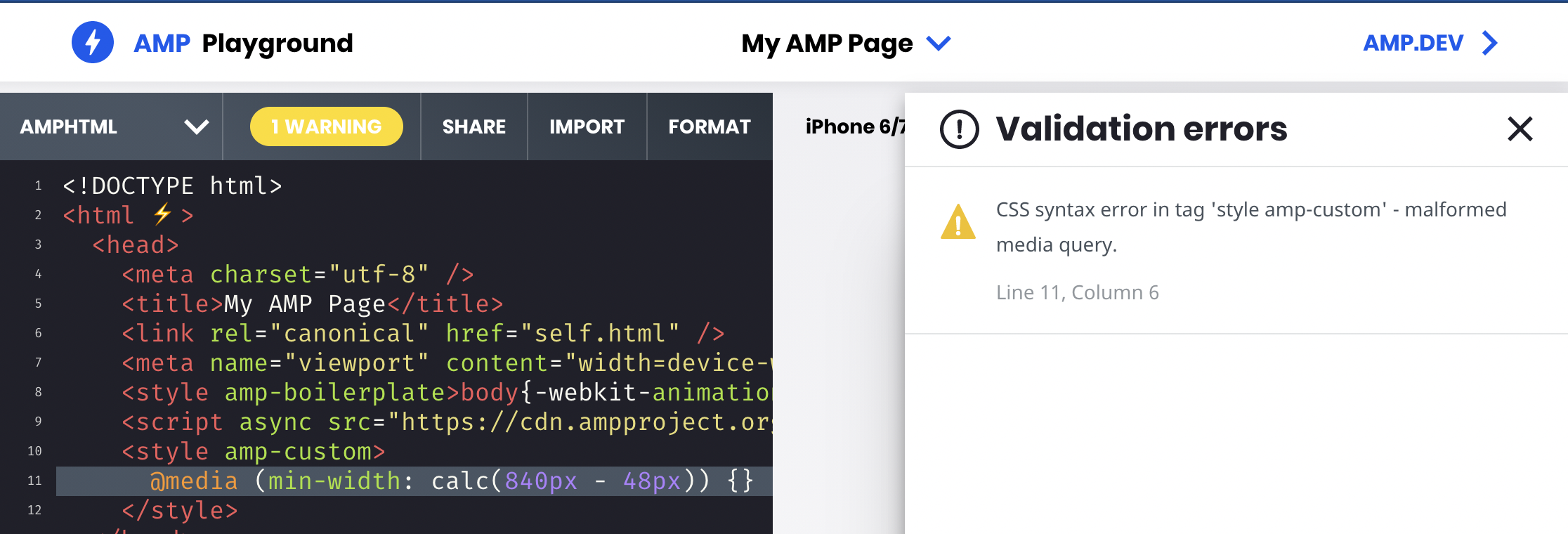

Whenever the AMP validator comes across a media query containing an instance calc() a validation error is thrown. Here’s an example in AMP Playground with the media query @media (min-width: calc(840px - 48px)) {}:

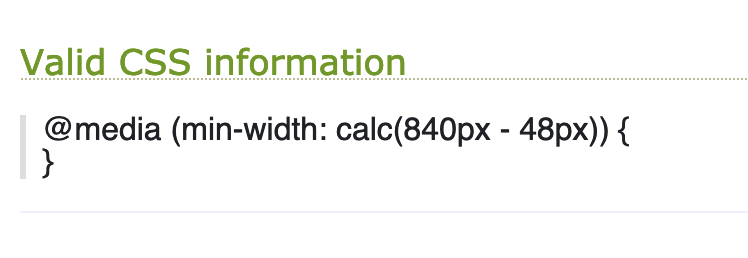

That same media query is considered valid by the W3C CSS validator, however:

After doing some debugging I’ve pinpointed the issue to this block of code where it parses the media feature (in this case calc(840px - 48px)):

https://github.com/ampproject/amphtml/blob/7a3474dfea23101d9f039f86a6c5e86be885d66a/validator/js/engine/parse-css.js#L1321-L1338

As you can see it consumes the media feature until it reaches the end of the line or encounters a closing parenthesis, which means it would stop at the last dimension in the media feature (48px). Right after the closing parenthesis is consumed and it does a check to see if it has reached the end of the media query:

https://github.com/ampproject/amphtml/blob/7a3474dfea23101d9f039f86a6c5e86be885d66a/validator/js/engine/parse-css.js#L1229

In this case however the media query is not finished being parsed as the closing parenthesis of the media query has not been consumed, and therefore the validation error is raised:

https://github.com/ampproject/amphtml/blob/7a3474dfea23101d9f039f86a6c5e86be885d66a/validator/js/engine/parse-css.js#L1186-L1189

Now going back to the parsing of the media feature, the CSS 3 Media Queries spec states:

Media features only accept single values: one keyword, one number, or a number with a unit identifier. (The only exceptions are the ‘aspect-ratio’ and ‘device-aspect-ratio’ media features.)

That may be misinterpreted as calc() not being accepted as a media feature value, but according to the CSS 3 Values and Units spec it can be used wherever a number or dimension is allowed:

The calc() expression represents the result of the mathematical calculation it contains, using standard operator precedence rules. It can be used wherever <length>, <frequency>, <angle>, <time>, <percentage>, <number>, or <integer> values are allowed.

Not related to the bug, but here are some browser bug issues related to calc() and media queries for completeness:

https://bugs.chromium.org/p/chromium/issues/detail?id=421909 https://bugzilla.mozilla.org/show_bug.cgi?id=1256575

Reproduction Steps

Create a file called test.html with the following contents:

<!doctype html>
<html ⚡>
<head>
  <meta charset="utf-8">
  <link rel="canonical" href="self.html">
  <meta name="viewport" content="width=device-width,minimum-scale=1">
  <style amp-boilerplate>body{-webkit-animation:-amp-start 8s steps(1,end) 0s 1 normal both;-moz-animation:-amp-start 8s steps(1,end) 0s 1 normal both;-ms-animation:-amp-start 8s steps(1,end) 0s 1 normal both;animation:-amp-start 8s steps(1,end) 0s 1 normal both}@-webkit-keyframes -amp-start{from{visibility:hidden}to{visibility:visible}}@-moz-keyframes -amp-start{from{visibility:hidden}to{visibility:visible}}@-ms-keyframes -amp-start{from{visibility:hidden}to{visibility:visible}}@-o-keyframes -amp-start{from{visibility:hidden}to{visibility:visible}}@keyframes -amp-start{from{visibility:hidden}to{visibility:visible}}</style><noscript><style amp-boilerplate>body{-webkit-animation:none;-moz-animation:none;-ms-animation:none;animation:none}</style></noscript>
  <style amp-custom>
    @media (min-width: calc(840px - 48px)){}
  </style>
  <script async src="https://cdn.ampproject.org/v0.js"></script>
</head>
<body>Hello, AMP world.</body>
</html>

Valiate the HTML file with the AMP JS validator:

amphtml-validator test.html

See the following result:

test.html: PASS
test.html:9:4 CSS syntax error in tag 'style amp-custom' - malformed media query.

Relevant Logs

No response

Browser(s) Affected

No response

OS(s) Affected

No response

Device(s) Affected

No response

AMP Version Affected

2108132216000

Issue Analytics

State:
Created 2 years ago
Reactions:3
Comments:5 (5 by maintainers)

Top GitHub Comments

3reactions

Gregablecommented, Sep 1, 2021

@pierlon First let me start by saying thank you for writing such an incredibly well researched and described issue report.

@honeybadgerdontcare is right, this is only a warning but it’s still also a valid bug in the parsing routine. I think it should be very easy to fix though, especially given the analysis you’ve already done. I’ll take it on myself to try to resolve this relatively soon. I believe I was the original author who made the mistake of ignoring calc() in the media expression parsing and taking a shortcut here.

1reaction

Gregablecommented, Sep 7, 2021

This is now fixed. You may or may not see it in tooling for up to an hour or so while the release goes live.
