Ivy doesn’t deallocate memory of destroyed components correctly

🐞 bug report

Affected Package

The issue is caused by package @angular/core@9.0.0-rc.14, earlier versions probably as well.

Is this a regression?

This issue does not occur in Angular 8 + View Engine.

Description

Ivy does not seem to correctly deallocate memory of destroyed components in all cases. We’ve noticed an issue that when navigating away from a route, at least some of the loaded components are getting destroyed but not deallocated and garbage collected. (The issue might not be restricted to routing.)

The problem is that unnecessary memory is not deallocated, which might lead to problems on mobile and other low-memory devices and might also have security implications (e.g. when sensitive state remains in memory, even after a user has logged out).

🔬 Minimal Reproduction

Here is a minimal repo of the problem. It’s a plain Angular CLI application with three routes and four components:

• /#/route1 (Route1Component) includes the ContentComponent as a child that loads the contents of a large file retrieved via the network into a field of its class during ngOnInit, consuming some memory. This component logs to the console when it’s being initialized or destroyed.
• /#/route2 (Route2Component) and route3 (Route3Component) don’t include this component.

Repro steps:

git clone https://github.com/thinktecture-labs/ivy-mem-leak.git
cd ivy-mem-leak
npm i
npm start

• Open http://localhost:4200/#/route3
• Open Chrome dev tools > Memory
• Click 🔴 Take Heap Snapshot
• Open http://localhost:4200/#/route2
• Take a snapshot (size should stay roughly the same)
• Open http://localhost:4200/#/route1, wait until the large file has been downloaded (check the Network tab)
• Take a snapshot (size should be larger than before)
• Open http://localhost:4200/#/route2
• Take a snapshot (size should not significantly change, even though the ContentComponent was destroyed, check the Console tab)

Stop ng serve and compare this with the behavior of Angular 8:

git checkout ng8
npm i
npm start

• Click 🚫 Clear All Profiles
• Open http://localhost:4200/#/route3
• Take a snapshot
• Open http://localhost:4200/#/route2
• Take a snapshot (size should stay roughly the same)
• Open http://localhost:4200/#/route1
• Take a snapshot (should be larger than before)
• Open http://localhost:4200/#/route2
• Take a snapshot (should be similar to the first two snapshots again)

🔥 Exception or Error

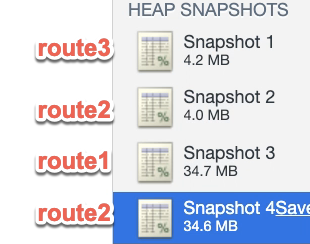

The memory of route1’s components doesn’t seem to be correctly deallocated when leaving route1 for route2 on Angular 9/Ivy:

Angular 9/Ivy	Angular 8/View Engine

As per DevTools, (at least) the component instance of the ContentComponent seems to be retained by a contextLView array even after it has been destroyed:

Is this behavior intended or is this a bug?

Researched by @ManuelRauber, @thomashilzendegen and me.

🌍 Your Environment

Angular Version:

     _                      _                 ____ _     ___
    / \   _ __   __ _ _   _| | __ _ _ __     / ___| |   |_ _|
   / △ \ | '_ \ / _` | | | | |/ _` | '__|   | |   | |    | |
  / ___ \| | | | (_| | |_| | | (_| | |      | |___| |___ | |
 /_/   \_\_| |_|\__, |\__,_|_|\__,_|_|       \____|_____|___|
                |___/


Angular CLI: 9.0.0-rc.12
Node: 12.14.1
OS: darwin x64

Angular: 9.0.0-rc.14
... animations, common, compiler, compiler-cli, core, forms
... language-service, platform-browser, platform-browser-dynamic
... router
Ivy Workspace: Yes

Package                           Version
-----------------------------------------------------------
@angular-devkit/architect         0.900.0-rc.12
@angular-devkit/build-angular     0.900.0-rc.12
@angular-devkit/build-optimizer   0.900.0-rc.12
@angular-devkit/build-webpack     0.900.0-rc.12
@angular-devkit/core              9.0.0-rc.12
@angular-devkit/schematics        9.0.0-rc.12
@angular/cli                      9.0.0-rc.12
@ngtools/webpack                  9.0.0-rc.12
@schematics/angular               9.0.0-rc.12
@schematics/update                0.900.0-rc.12
rxjs                              6.5.4
typescript                        3.7.5
webpack                           4.41.2

Anything else relevant?

—

[mhevery]

Kudos for such a well documented repro steps. I wish more people would provide examples such as these.

It looks to me that master is also on Ivy and when I try to reproduce the working example it also retains on master could you please fix that?

[mhevery]

@mhevery In the repro, the master branch is Angular 9/Ivy and the ng8 branch is Angular 8/View Engine. As you’ve provided a potential fix, I guess we don’t have to update the repro repo?

no need to do anything.
