Styles from external components are included outside the scope of a shadow DOM component

See original GitHub issue

🐞 bug report

Affected Package

The issue is caused by package @angular/platform-browser

Is this a regression?

Description

When deploying an Angular component with encapsulation: ViewEncapsulation.ShadowDom, everything regarding the component should be kept inside the #shadow-root. This includes all stylings.

Actual behavior

Styles added by styleUrls or styles in the @Component decorator are added to the #shadow-root ✔️
Styles coming from external components like @angular/material are added to the #shadow-root ✔️
Styles coming from external components are also added to document’s <head> outside of the #shadow-root ❌

Expected behavior

Only 1. and 2. should happen.

Root cause analysis

As far as I can see, this is caused by the ShadowDomRenderer using the DomSharedStylesHost which adds _doc.head to its list of known _hostNodes in the constructor: https://github.com/angular/angular/blob/d43187f7ef7e841d84ecf594e8e515a9d534daaa/packages/platform-browser/src/dom/shared_styles_host.ts#L39

🔬 Minimal Reproduction

https://stackblitz.com/edit/angular-material-shadowdom-styles

In the <head> section there are <style> tags of Material components, which should only be inside the shadow DOM.

🌍 Your Environment

Angular Version:


Angular CLI: 8.3.23
Node: 12.7.0
OS: win32 x64
Angular: 8.2.14
... animations, common, compiler, compiler-cli, core, forms
... language-service, platform-browser, platform-browser-dynamic
... router

Package                           Version
-----------------------------------------------------------
@angular-devkit/architect         0.803.23
@angular-devkit/build-angular     0.803.23
@angular-devkit/build-optimizer   0.803.23
@angular-devkit/build-webpack     0.803.23
@angular-devkit/core              8.3.23
@angular-devkit/schematics        8.3.23
@angular/cdk                      8.2.3
@angular/cli                      8.3.23
@angular/material                 8.2.3
@ngtools/webpack                  8.3.23
@schematics/angular               8.3.23
@schematics/update                0.803.23
rxjs                              6.4.0
typescript                        3.5.3
webpack                           4.39.2

Issue Analytics

State:
Created 4 years ago
Reactions:4
Comments:5

Top GitHub Comments

2reactions

courtney-regiscommented, Nov 20, 2020

@Megadesty

We have encountered the same issue. One way we’ve worked around it is that we have a project dedicated to creating web components. In the bootstrapped module where we declare our custom elements, we do the following in the constructor of the NgModule:

import { Injector } from "@angular/core";
import { ɵDomSharedStylesHost } from "@angular/platform-browser";

constructor(private injector: Injector) {
    this.injector.get(ɵDomSharedStylesHost).removeHost(document.head);
}

2reactions

Megadestycommented, Apr 6, 2020

@alexeykostevich Your extended example is excellent and showcases the (faulty) behavior with components ViewEncapsulation.Emulated inside a #shadow-root as well, thanks!

I think if you are happy with the surrogate ids, that’s fine. But as you can see in my and your example, the common Material styles (like .mat-card {...}) are also included in both the document and #shadow-root. Now think about having mulitple Web Components on one page, all are self-contained Angular apps using Material. What you get in the end is that each component injects its own Material style in the document and since they are always named the same, they are overwriting each other. This could lead to trouble if one Web Component uses an older Angular or Material version or another Material theme. And even if all Web Components are using the same Material version and the same theme, in my opinion this is not good at all.

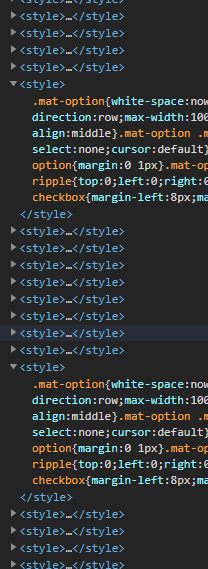

In our case we already have multiple Web Components using Angular with Material on a page. The document’s <head> looks like this:

If the Angular team fixes this issue, I guess it won’t have an impact on your project. Except you are using global styles from a Web Component outside the component, but that sounds like a bad practice anyway.
