inlineCriticalCss + extractCss have problems with global styles that can cause layout shifts

🐞 Bug report

What modules are related to this issue?

• aspnetcore-engine
• builders
• common
• [x ] express-engine
• hapi-engine

Is this a regression?

No

Description

I tested the new experimental inlineCriticalCss and there are some issues with global styles defined under "styles": [...] in the angular.json file…

build": {
  ...
  "options": {
    ...
    "styles": [ ... ]
  },
  ...
}

…for example the /src/styles.[s]css or NG Material themes. To make global styles work with inlineCriticalCss you must use extractCss: true to inline some of these styles otherwise they will be added at runtime. However, this causes some selector errors in the console. So I measured the performance of different solutions with Lighthouse (Chrome 87).

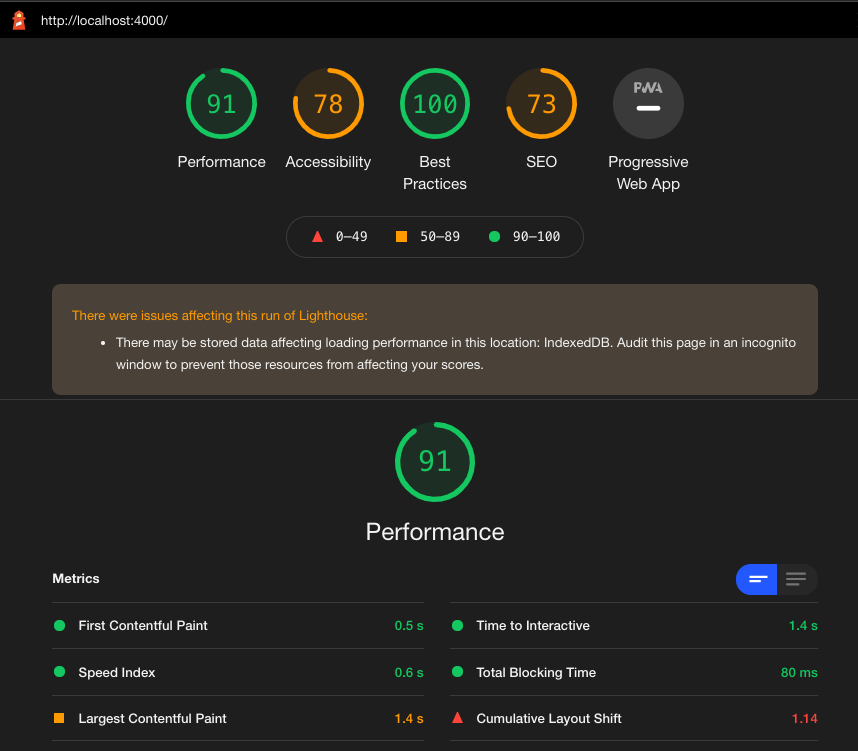

inlineCriticalCss:true + extractCss:true

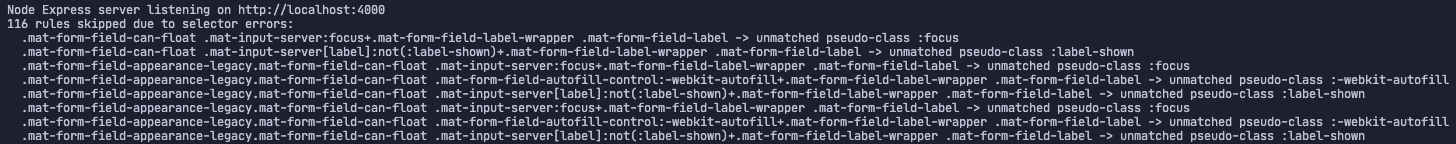

With this combination you get styles errors in the console. For example for NG Material.

inlineCriticalCss:true + extractCss:false

inlineCriticalCss:false + extractCss:true

PS. Ignore the problems that affect the run of Lighthouse. It was audited in an incognito window but Firebase is used and writes to IndexedDB.

tl;dr

In the current form of inlineCriticalCss it looks like you get the best performance (because of lower LCP & CLS) with global styles that can cause layout shifts without inlineCriticalCss and extractCss set to true.

🔬 Minimal Reproduction

1. Add global styles that can cause layout shifts such as .foo { display: flex; } when applied later and/or a NG Material theme to the styles option in your angular.json file.
2. Enable or disable inlineCriticalCss and extractCss in the appropriate files.

// server.ts
  server.engine(
    "html",
    ngExpressEngine({
      bootstrap: AppServerModule,
      inlineCriticalCss: true,
    })
  );

// angular.json
      "architect": {
        "build": {
          ...
          "options": {
            ...
            "styles": [
              "node_modules/@angular/material/prebuilt-themes/indigo-pink.css",
              "src/styles.scss"
            ],
            ...
          },
          "configurations": {
            "production": {
              "fileReplacements": [
                {
                  "replace": "src/environments/environment.ts",
                  "with": "src/environments/environment.prod.ts"
                }
              ],
              "optimization": true,
              "outputHashing": "all",
              "sourceMap": false,
              "namedChunks": true,
              "extractLicenses": true,
              "vendorChunk": false,
              "commonChunk": false,
              "extractCss": true,
              "aot": true,
              "buildOptimizer": true
            }
          }

1. Run NODE_ENV=production ng build --prod && ng run <projectName>:server:production.
2. Run node dist/server/main.js.

🌍 Your Environment

Angular CLI: 11.1.0-next.2
Node: 12.18.0
OS: darwin x64

Angular: 11.1.0-next.2
... animations, cli, common, compiler, compiler-cli, core, forms
... language-service, platform-browser, platform-browser-dynamic
... platform-server, router
Ivy Workspace: Yes

Package                         Version
---------------------------------------------------------
@angular-devkit/architect       0.1100.4
@angular-devkit/build-angular   0.1101.0-next.2
@angular-devkit/core            11.1.0-next.2
@angular-devkit/schematics      11.1.0-next.2
@angular/cdk                    11.0.1
@angular/fire                   6.1.4
@angular/material               11.0.1
@nguniversal/builders           11.1.0-next.0
@nguniversal/express-engine     11.1.0-next.0
@schematics/angular             11.1.0-next.2
@schematics/update              0.1101.0-next.2
rxjs                            6.6.3
typescript                      4.1.3

[akaufmann]

Hi @alan-agius4!

LCP, I download the reproduction with and without inlineCriticalCss, I get a constant LCP of ~1.2ms/1.4ms

Yes correct, I see that too. In both cases, the numbers for LCP fluctuate in the same range for multiple runs.

Thanks @alan-agius4 for finding time to look at this so quickly and creating a fix in the Critters repo.

[alan-agius4]

Hi @akaufmann,

I did take a look at the reproduction and found that;

• Critters is treating the CSS class .md\:flex as a pseudo-classes instead of a CSS selector, this is causing the class not to be inlined and caused a drastic CLS. I have PR for this https://github.com/GoogleChromeLabs/critters/pull/68
• LCP, I download the reproduction with and without inlineCriticalCss, I get a constant LCP of ~1.2ms/1.4ms
