New Programming Model of TransactionMQProducer

Under current design, LocalTransaction is executed after half message is successfully sent. A LocalTransaction may takes long time to complete, and while it is running , TransactionCheckerListener may be called to report the status of the transaction. It’s very hard or even impossible for the TransactionCheckerListener to distinguish whether the transaction is on-going or is rollbacked.

I’d propose a new programming model of TransactionMQProducer.

1. Start local transaction
2. Execute local transaction logic
3. Call TransactionMQProducer to send half message and record SendResult
4. Commit or Rollback local transaction based on SendResult.
5. Tell MQ the local transaction state.

According to this design, there is no extra work to do after half message is sent, TransactionCheckerListener can be confident the transaction is rollbacked if it can find a record in the database. And Step 5 can be easily implemented using Spring Transaction bound event.

[duhenglucky]

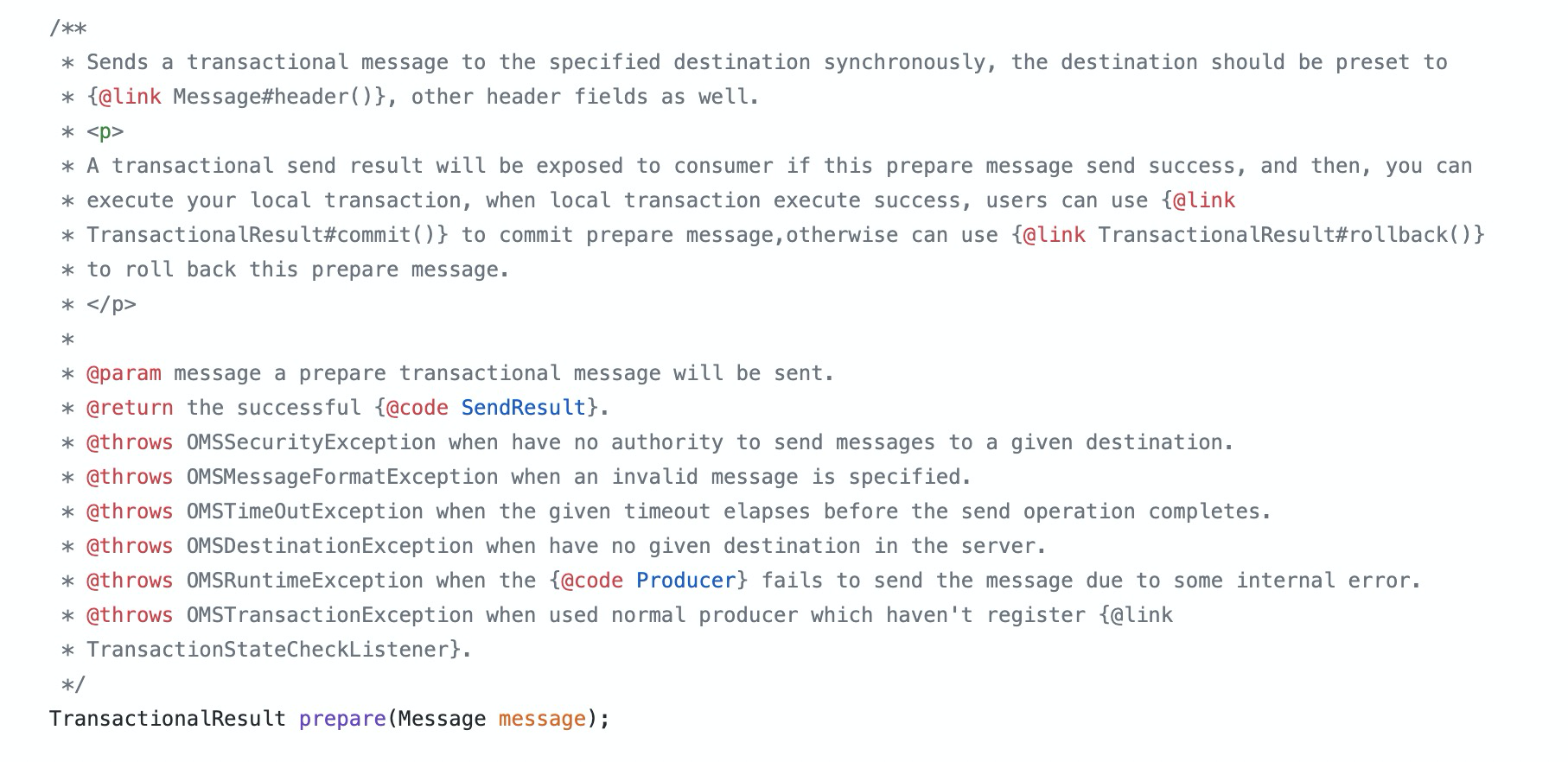

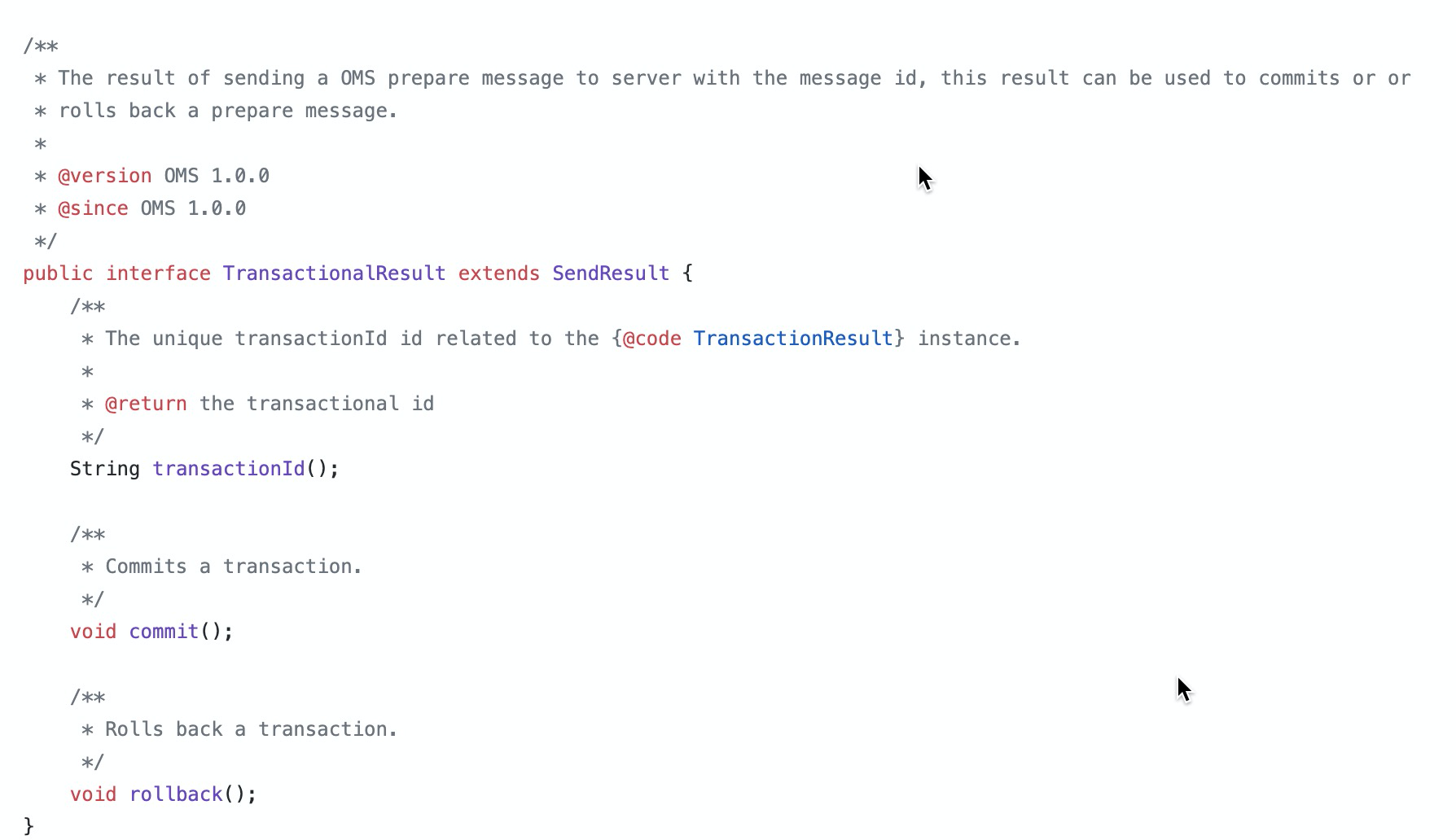

https://github.com/openmessaging/openmessaging-java/blob/master/openmessaging-api/src/main/java/io/openmessaging/producer/Producer.java The API shown below is provided in OpenMessaging, any comments are welcome: )

[diwayou]

https://github.com/openmessaging/openmessaging-java/blob/master/openmessaging-api/src/main/java/io/openmessaging/producer/Producer.java The API shown below is provided in OpenMessaging, any comments are welcome: )

I didn’t find the prepare method implementation in the code https://github.com/apache/rocketmq/blob/master/openmessaging/src/main/java/io/openmessaging/rocketmq/producer/ProducerImpl.java, rocketmq have implemented this? i implement a demo with spring transaction manager like ` @Slf4j public class TransactionProducer {

private RocketMQTemplate rocketMQTemplate;

private DefaultMQProducerImpl producer;

private MessageConverter messageConverter;

public TransactionProducer(RocketMQTemplate rocketMQTemplate) {
    this.rocketMQTemplate = rocketMQTemplate;

    Field field = FieldUtils.getField(TransactionMQProducer.class, "defaultMQProducerImpl", true);

    this.producer = (DefaultMQProducerImpl) ReflectionUtils.getField(field, rocketMQTemplate.getProducer());
    if (this.producer == null) {
        throw new RuntimeException("不能发送事务消息");
    }

    this.messageConverter = rocketMQTemplate.getMessageConverter();
}

public SendResult send(String destination, org.springframework.messaging.Message<?> rocketMessage) throws MQClientException {
    Message msg = RocketMQUtil.convertToRocketMessage(messageConverter,
            StandardCharsets.UTF_8.toString(),
            destination, Objects.requireNonNull(messageConverter.toMessage(rocketMessage.getPayload(), rocketMessage.getHeaders())));
    // ignore DelayTimeLevel parameter
    if (msg.getDelayTimeLevel() != 0) {
        MessageAccessor.clearProperty(msg, MessageConst.PROPERTY_DELAY_TIME_LEVEL);
    }

    Validators.checkMessage(msg, producer.getDefaultMQProducer());

    SendResult sendResult;
    MessageAccessor.putProperty(msg, MessageConst.PROPERTY_TRANSACTION_PREPARED, "true");
    MessageAccessor.putProperty(msg, MessageConst.PROPERTY_PRODUCER_GROUP, producer.getDefaultMQProducer().getProducerGroup());
    try {
        sendResult = producer.send(msg);
    } catch (Exception e) {
        throw new MQClientException("send message Exception", e);
    }

    LocalTransactionState localTransactionState = LocalTransactionState.UNKNOW;
    switch (sendResult.getSendStatus()) {
        case FLUSH_DISK_TIMEOUT:
        case FLUSH_SLAVE_TIMEOUT:
        case SLAVE_NOT_AVAILABLE:
            localTransactionState = LocalTransactionState.ROLLBACK_MESSAGE;
            break;
        default:
            break;
    }

    final org.apache.rocketmq.client.producer.SendResult finalSendResult = sendResult;
    TransactionSynchronization transactionSynchronization = new TransactionSynchronizationAdapter() {
        @Override
        public void afterCompletion(int status) {
            LocalTransactionState localState;
            if (status == TransactionSynchronization.STATUS_ROLLED_BACK){
                localState = LocalTransactionState.ROLLBACK_MESSAGE;
            } else if (status == TransactionSynchronization.STATUS_UNKNOWN) {
                localState = LocalTransactionState.UNKNOW;
            } else {
                localState = LocalTransactionState.COMMIT_MESSAGE;
            }

            try {
                producer.endTransaction(finalSendResult, localState, null);
            } catch (Exception e) {
                log.warn("local transaction execute " + localState + ", but end broker transaction failed", e);
            }
        }
    };

    TransactionSynchronizationManager.registerSynchronization(transactionSynchronization);

    if (localTransactionState.equals(LocalTransactionState.ROLLBACK_MESSAGE)) {
        throw new RuntimeException("rollback message because send mq fail");
    }

    TransactionSendResult transactionSendResult = new TransactionSendResult();
    transactionSendResult.setSendStatus(sendResult.getSendStatus());
    transactionSendResult.setMessageQueue(sendResult.getMessageQueue());
    transactionSendResult.setMsgId(sendResult.getMsgId());
    transactionSendResult.setQueueOffset(sendResult.getQueueOffset());
    transactionSendResult.setTransactionId(sendResult.getTransactionId());
    transactionSendResult.setLocalTransactionState(localTransactionState);

    return transactionSendResult;
}

} `
