insert statement error : Route table does not exist, available actual table

See original GitHub issue

Question

The table created by the DDL statement was successfully created on shardingsphere-proxy. But an error occurs when using the inset statement to insert, can you help explain what the problem is?

this is my config file

schemaName: sharding_db
dataSources:
  master_0:
    url: jdbc:mysql://192.168.80.172:23306/demo_0?serverTimezone=UTC&useSSL=false&allowPublicKeyRetrieval=true
    username: root
    password: Aa123456.
    connectionTimeoutMilliseconds: 30000
    idleTimeoutMilliseconds: 60000
    maxLifetimeMilliseconds: 1800000
    maxPoolSize: 50
    minPoolSize: 1
  slave_0:
    url: jdbc:mysql://192.168.80.172:23307/demo_0?serverTimezone=UTC&useSSL=false&allowPublicKeyRetrieval=true
    username: root
    password: Aa123456.
    connectionTimeoutMilliseconds: 30000
    idleTimeoutMilliseconds: 60000
    maxLifetimeMilliseconds: 1800000
    maxPoolSize: 50
    minPoolSize: 1
  master_1:
    url: jdbc:mysql://192.168.80.176:23306/demo_1?serverTimezone=UTC&useSSL=false&allowPublicKeyRetrieval=true
    username: root
    password: Aa123456.
    connectionTimeoutMilliseconds: 30000
    idleTimeoutMilliseconds: 60000
    maxLifetimeMilliseconds: 1800000
    maxPoolSize: 50
    minPoolSize: 1
  slave_1:
    url: jdbc:mysql://192.168.80.176:23307/demo_1?serverTimezone=UTC&useSSL=false&allowPublicKeyRetrieval=true
    username: root
    password: Aa123456.
    connectionTimeoutMilliseconds: 30000
    idleTimeoutMilliseconds: 60000
    maxLifetimeMilliseconds: 1800000
    maxPoolSize: 50
    minPoolSize: 1
rules:
  - !SHARDING
    defaultTableStrategy:
      none:
    tables:
      biz_ymcz_minclass:
        actualDataNodes: master_0.biz_ymcz_minclass_${[36]},master_1.biz_ymcz_minclass_${[41]}
        tableStrategy:
          standard:
            shardingColumn: area_code
            shardingAlgorithmName: biz_ymcz_minclass_inline
        keyGenerateStrategy:
          column: id
          keyGeneratorName: snowflake
      biz_ymcz:
        actualDataNodes: master_0.biz_ymcz_${[36]},master_1.biz_ymcz_${[41]}
        tableStrategy:
          standard:
            shardingColumn: area_code
            shardingAlgorithmName: biz_ymcz_inline
        keyGenerateStrategy:
          column: id
          keyGeneratorName: snowflake
    shardingAlgorithms:
      biz_ymcz_inline:
        type: INLINE
        props:
          algorithm-expression: biz_ymcz_${area_code[0..1]}
      biz_ymcz_minclass_inline:
        type: INLINE
        props:
          algorithm-expression: biz_ymcz_minclass_${area_code[0..1]}
    keyGenerators:
      snowflake:
        type: SNOWFLAKE

  - !READWRITE_SPLITTING
    dataSources:
      master_0:
        type: Static
        props:
          write-data-source-name: master_0
          read-data-source-names: slave_0
      master_1:
        type: Static
        props:
          write-data-source-name: master_1
          read-data-source-names: slave_1

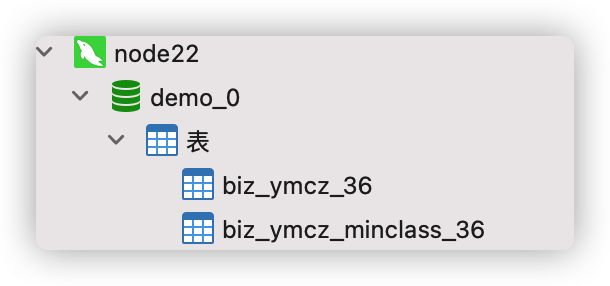

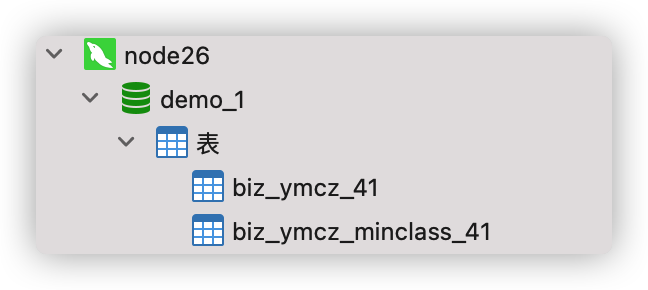

The successfully created table is shown in the following figure, on two different master nodes respectively

This is the error message

1997 - Runtime exception: [Route table biz_ymcz_minclass_36 does not exist, available actual table: [biz_ymcz_minclass_41]], Time: 0.049000s

The versions I have tried are `5.0.0` , `5.1.0`

Issue Analytics

State:
Created a year ago
Comments:11 (6 by maintainers)

Top GitHub Comments

1reaction

strongduanmucommented, Apr 12, 2022

Hi @zorohu, I found some problems from your configuration. First problem is dataSourceName in actualDataNodes. If you want to use read-write splitting feature, you need to configure read-write splitting aggregation data source with a unique name and use it in actualDataNodes. I made the following modifications to your configuration.

The second problem is that according to the sharding strategy you specified, the actual table cannot be found, and you need to adjust the sharding strategy. The current sharding strategy routes insert statements to the biz_ymcz_minclass_36 table of the ds_1 data source.

schemaName: sharding_db
dataSources:
  master_0:
    url: jdbc:mysql://127.0.0.1:3306/demo_ds_0?serverTimezone=UTC&useSSL=false&allowPublicKeyRetrieval=true
    username: root
    password: 123456
    connectionTimeoutMilliseconds: 30000
    idleTimeoutMilliseconds: 60000
    maxLifetimeMilliseconds: 1800000
    maxPoolSize: 50
    minPoolSize: 1
  slave_0:
    url: jdbc:mysql://127.0.0.1:3306/demo_ds_0?serverTimezone=UTC&useSSL=false&allowPublicKeyRetrieval=true
    username: root
    password: 123456
    connectionTimeoutMilliseconds: 30000
    idleTimeoutMilliseconds: 60000
    maxLifetimeMilliseconds: 1800000
    maxPoolSize: 50
    minPoolSize: 1
  master_1:
    url: jdbc:mysql://127.0.0.1:3306/demo_ds_1?serverTimezone=UTC&useSSL=false&allowPublicKeyRetrieval=true
    username: root
    password: 123456
    connectionTimeoutMilliseconds: 30000
    idleTimeoutMilliseconds: 60000
    maxLifetimeMilliseconds: 1800000
    maxPoolSize: 50
    minPoolSize: 1
  slave_1:
    url: jdbc:mysql://127.0.0.1:3306/demo_ds_1?serverTimezone=UTC&useSSL=false&allowPublicKeyRetrieval=true
    username: root
    password: 123456
    connectionTimeoutMilliseconds: 30000
    idleTimeoutMilliseconds: 60000
    maxLifetimeMilliseconds: 1800000
    maxPoolSize: 50
    minPoolSize: 1
rules:
- !SHARDING
  defaultTableStrategy:
    none:
  defaultDatabaseStrategy:
    none:
  tables:
    biz_ymcz_minclass:
      actualDataNodes: ds_0.biz_ymcz_minclass_${[36]},ds_1.biz_ymcz_minclass_${[41]}
      databaseStrategy:
        #none:
        standard:
          shardingColumn: area_code
          shardingAlgorithmName: area_code_database_inline
      tableStrategy:
        standard:
          shardingColumn: area_code
          shardingAlgorithmName: biz_ymcz_minclass_inline
      keyGenerateStrategy:
        column: id
        keyGeneratorName: snowflake
  shardingAlgorithms:
    area_code_database_inline:
      type: INLINE
      props:
        algorithm-expression: ds_1
    biz_ymcz_minclass_inline:
      type: INLINE
      props:
        algorithm-expression: biz_ymcz_minclass_${area_code[0..1]}

- !READWRITE_SPLITTING
  dataSources:
    ds_0:
      type: Static
      props:
        write-data-source-name: master_0
        read-data-source-names: slave_0
    ds_1:
      type: Static
      props:
        write-data-source-name: master_1
        read-data-source-names: slave_1

1reaction

zorohucommented, Apr 8, 2022

this is a simplified version of the initialization statement

CREATE TABLE `biz_ymcz_minclass` (
  `id` varchar(64) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL,
  `min_id` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci DEFAULT NULL,
  `min_code` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci DEFAULT '0',
  `area_code` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci DEFAULT NULL,
  PRIMARY KEY (`id`) USING BTREE,
  UNIQUE KEY `uq_minid` (`min_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_general_ci ROW_FORMAT=DYNAMIC;

INSERT INTO `biz_ymcz_minclass` VALUES ('1480067538049560578', '12345678-12345678', '123456789', '3600003');
