error when generating mermaid graph through mmdc

See original GitHub issue

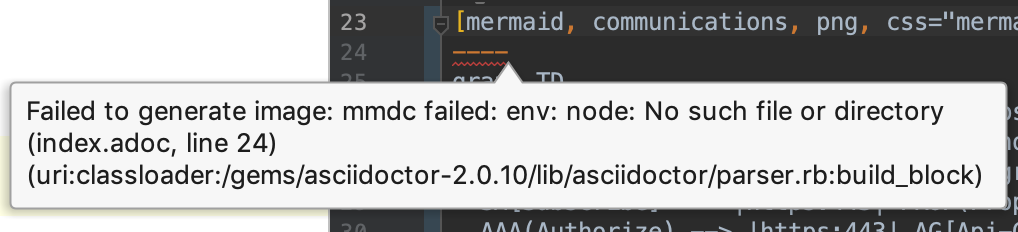

When using mermaid as a graph tools, with its CLI, I have the following error in the IDEA UI:

The mmdc command line has its hashbang defined like this:

#!/usr/bin/env node
...

From my point of view, the IDE doesn’t find node, but don’t know how to check if the path variable is accessible from the plugin context.

The preview pane looks like this

For the following document, which is pretty simple:

= Example
:mermaid: /usr/local/bin/mmdc

[mermaid, communications, png, css="mermaid.css"]
----
graph TD
  A --> B
----

More:

the mmdc comand is availaible in the $PATH
the node command is available in the $PATH

AsciiDoc Plugin Version: 0.30.6

IDE Version:
IntelliJ IDEA 2019.2.2 (Ultimate Edition)
Build #IU-192.6603.28, built on September 6, 2019
Subscription is active until April 3, 2020
Runtime version: 1.8.0_202-release-b1491 x86_64
VM: OpenJDK 64-Bit Server VM by JetBrains s.r.o
macOS 10.14.6
GC: ParNew, ConcurrentMarkSweep
Memory: 1450M
Cores: 8
Registry:
Non-Bundled Plugins: Key Promoter X, Lombook Plugin, com.jetbrains.jbre.bintray.downloader, mobi.hsz.idea.gitignore, net.sjrx.intellij.plugins.systemdunitfiles, org.asciidoctor.intellij.asciidoc, org.jetbrains.plugins.go-template, BashSupport, com.intellij.plugins.html.instantEditing, izhangzhihao.rainbow.brackets, org.intellij.scala, com.intellij.kubernetes

Issue Analytics

State:
Created 4 years ago
Comments:5 (2 by maintainers)

Top GitHub Comments

2reactions

davinkevincommented, Oct 7, 2019

I did not have the chance to test it before today…

I choose to use the following command (run in bash):

sudo launchctl config user path $PATH

And this is working perfectly 👍

0reactions

dfrommicommented, Jun 5, 2022

@WuglyakBolgoink I have the same issue and could resolve it like this…

Add document attribute mmdc to tell the plugin where to find the executable

:mmdc: /usr/local/bin/mmdc

Edit the file /usr/local/bin/mmdc to point to the absolute path of node, rather than using env. Top of mmdc file then reads

#!/usr/local/bin/node

This will of course be reverted on any update of mmdc.
