Cannot export as GLB an imported GLB because of _BumpMap

See original GitHub issue

Describe the bug I import a GLB, then export it. I have an error when export.

I have an example project : https://github.com/Morgan-6Freedom/GLBExporter

Files

RoueTest.zip

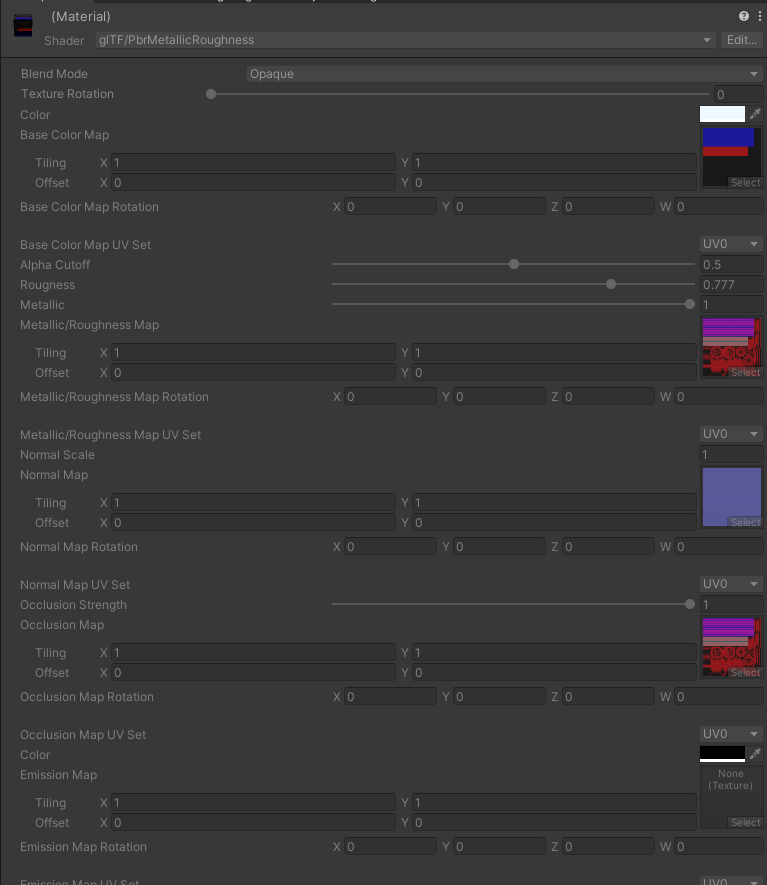

This is the material of the imported GLB : image

To Reproduce Steps to reproduce the behavior:

  1. Import a GLB with importer.InstantiateMainScene()
  2. Export the gameobject from the scene with export.SaveToFileAndDispose()

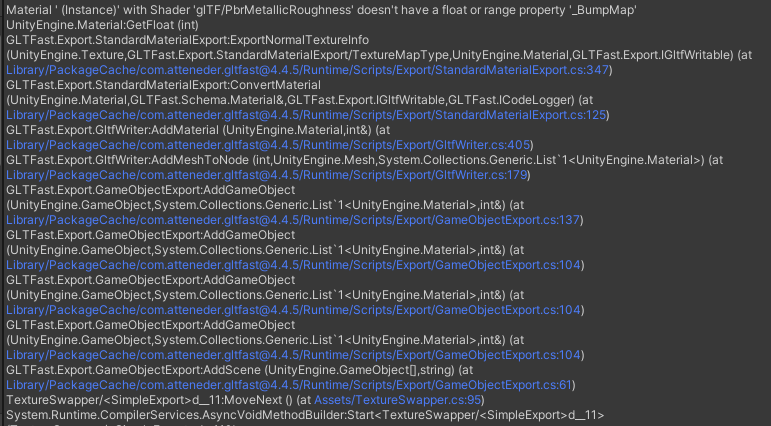

  3. see error in Unity console image

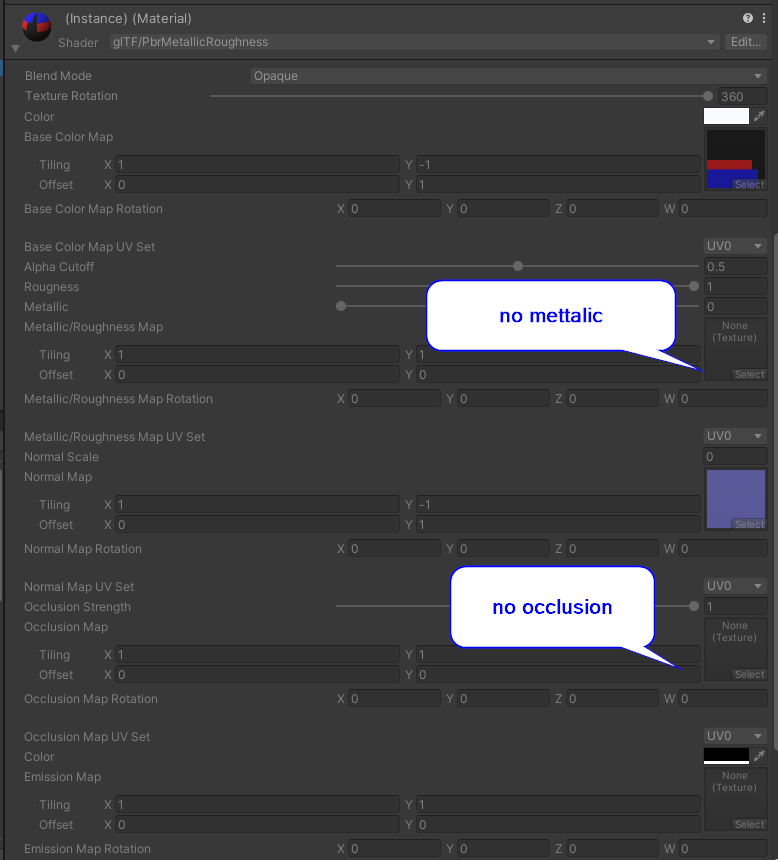

  4. Look at the export material : image

Expected behavior The exporter should be able to export a glb with a normal map and a metallic map and an occlusion map

Desktop (please complete the following information):

  • glTFast version 4.4.5
  • Unity Editor version 2020.3.20f
  • Render Pipeline and version Builtin pipeline
  • Platform: Editor

additionally (if significant for the bug):

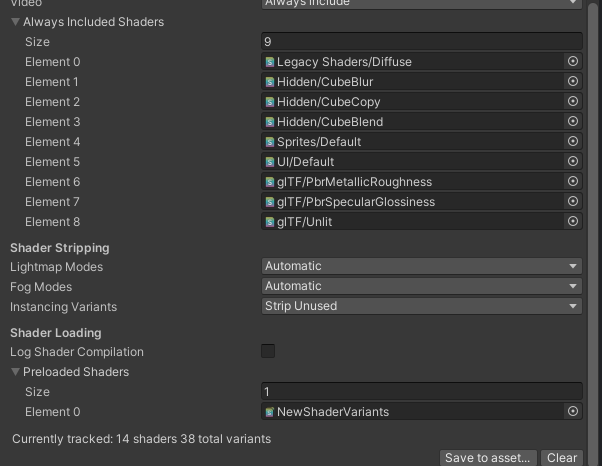

I added that but doesn’t seems to fix the issue image

Issue Analytics

  • State:closed
  • Created 2 years ago
  • Comments:5 (3 by maintainers)

github_iconTop GitHub Comments

1reaction
attenedercommented, Apr 6, 2022

@Morgan-6Freedom yes, normal map export works, as stated in the documentation.

0reactions
Morgan-6Freedomcommented, Mar 31, 2022

Hello. It seems that the 4.6.0 fix the occlusion map & the metallic. Does it fix the normal map ? https://github.com/atteneder/glTFast/releases/tag/v4.6.0
