Multi-Auth AppSync - No Cognito Identity pool provided for unauthenticated access

Describe the bug I have configured Multi Auth with the providers Cognito and IAM. Like this:

First, I executed the command amplify auth update

And update this config to my project. I tested with amplify mock and through AWS AppSync Console. Works well.

So, I wanted to integrate it with an external project, using the commands that AWS AppSync Console gives in the Getting Started section:

amplify init

amplify add codegen --apiId <id_project>

amplify codegen

In this external project, it gives me this àws-exports.js config:

// WARNING: DO NOT EDIT. This file is automatically generated by AWS Amplify. It will be overwritten.

const awsmobile = {
  aws_project_region: "us-east-2",
  aws_appsync_graphqlEndpoint:
    "https://js34zn5dafaxjatn52jom6cqde.appsync-api.us-east-2.amazonaws.com/graphql",
  aws_appsync_region: "us-east-2",
  aws_appsync_authenticationType: "AWS_IAM",
};

export default awsmobile;

Which is right, I have the AWS_IAM config by default. So, I tried to configure amplify, on the _app.js page (I’m using Next.js). Like this:

import React from "react";
import App from "next/app";
import Amplify from "aws-amplify";
import { Auth } from "aws-amplify";

import awsmobile from "../src/aws-exports";

Amplify.configure(awsmobile);

Auth.currentCredentials()
  .then((d) => console.log("data: ", d))
  .catch((e) => console.log("error: ", e));

export default class MyApp extends App {
  render() {
    const { Component, pageProps } = this.props;

    return <Component {...pageProps} />;
  }
}

And then do a query, like this:

import React, { useState, useEffect } from "react";
import { API } from "aws-amplify";
import { GRAPHQL_AUTH_MODE } from "@aws-amplify/api";

import { listPublications } from "../src/graphql/queries";

function index() {
  const [data, setData] = useState([]);

  useEffect(() => {
    getSectionData();
  }, []);

  async function getSectionData() {
    try {
      const { data } = await API.graphql({
        query: listPublications,
        variables: {
          filter: {
            contentType: { eq: "Publications" },
          },
        },
        authMode: GRAPHQL_AUTH_MODE.AWS_IAM,
      });

      console.log(data);

      setData(data?.listPublications?.item);
    } catch (err) {
      console.error("error fetching talks...", err);
    }
  }

  return <h1>hello</h1>;
}

export default index;

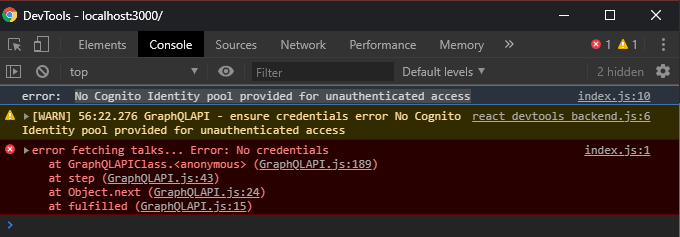

But I got this error

I used this example as a guide and everything looks correct… And even the Unauthenticated role from IAM console is right, which is this:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Action": [
                "appsync:GraphQL"
            ],
            "Resource": [
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Section/*",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Query/fields/getSection",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Query/fields/listSections",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Query/fields/sortSectionByUserIdAndCreatedAt",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Publication/*",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Query/fields/getPublication",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Query/fields/listPublications",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Query/fields/sortPublicationByUserIdAndCreatedAt",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Magazine/*",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Query/fields/getMagazine",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Query/fields/listMagazines",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Query/fields/sortMagazineByUserIdAndCreatedAt",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/MagazineIndex/*",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Query/fields/getMagazineIndex",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Query/fields/listMagazineIndexs",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Event/*",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Mutation/fields/updateEvent",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Query/fields/getEvent",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Query/fields/listEvents",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Query/fields/sortEventByUserIdAndCreatedAt",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Subscription/fields/onUpdateEvent",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Participant/*",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Mutation/fields/createParticipant",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Subscription/fields/onCreateParticipant",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Subscription/*",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Mutation/fields/createSubscription",
                "arn:aws:appsync:us-east-2:980949533452:apis/56jzwszsjvbxrermdub5eujofm/types/Subscription/fields/onCreateSubscription"
            ],
            "Effect": "Allow"
        }
    ]
}

All those queries and mutations are the ones that I used with the rule @auth( rules: [ { allow: public, provider: iam, operations: [...] } ] )

I don’t know why AppSync gives me that error.

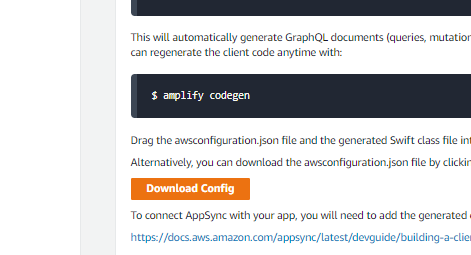

Also, if I do click on the button “download config” gives me this:

{
    "UserAgent": "aws-amplify-cli/0.1.0",
    "Version": "1.0",
    "IdentityManager": {
        "Default": {}
    },
    "AppSync": {
        "Default": {
            "ApiUrl": "https://js34zn5dafaxjatn52jom6cqde.appsync-api.us-east-2.amazonaws.com/graphql",
            "Region": "us-east-2",
            "AuthMode": "AWS_IAM",
            "ClientDatabasePrefix": "shooter-dev_AWS_IAM"
        },
        "shooter-dev_AMAZON_COGNITO_USER_POOLS": {
            "ApiUrl": "https://js34zn5dafaxjatn52jom6cqde.appsync-api.us-east-2.amazonaws.com/graphql",
            "Region": "us-east-2",
            "AuthMode": "AMAZON_COGNITO_USER_POOLS",
            "ClientDatabasePrefix": "shooter-dev_AMAZON_COGNITO_USER_POOLS"
        }
    }
}

[MontoyaAndres]

This is the solution:

The main project has AMAZON_COGNITO_USER_POOLS and AWS_IAM configured, so I used amplify add codegen --apiId <id_project> to use this AppSync API in another frontend project, as I explained before.

In this new frontend project was generated this config:

// WARNING: DO NOT EDIT. This file is automatically generated by AWS Amplify. It will be overwritten.

const awsmobile = {
  aws_project_region: "us-east-2",
  aws_appsync_graphqlEndpoint:
    "https://js34zn5dafaxjatn52jom6cqde.appsync-api.us-east-2.amazonaws.com/graphql",
  aws_appsync_region: "us-east-2",
  aws_appsync_authenticationType: "AWS_IAM",
};

export default awsmobile;

I just added these new fields from the main project:

// WARNING: DO NOT EDIT. This file is automatically generated by AWS Amplify. It will be overwritten.

const awsmobile = {
  aws_project_region: "us-east-2",
  aws_appsync_graphqlEndpoint:
    "https://js34zn5dafaxjatn52jom6cqde.appsync-api.us-east-2.amazonaws.com/graphql",
  aws_appsync_region: "us-east-2",
  aws_appsync_authenticationType: "AWS_IAM",
  aws_cognito_identity_pool_id:  "us-east-2:HERE_ID",
  aws_cognito_region: "us-east-2",
};

export default awsmobile;

And it worked… I’m sure this is a little bug, the CLI only needs to detect the Cognito config and add those fields… @Amplifiyer

[jpca999]

I foudn the solution

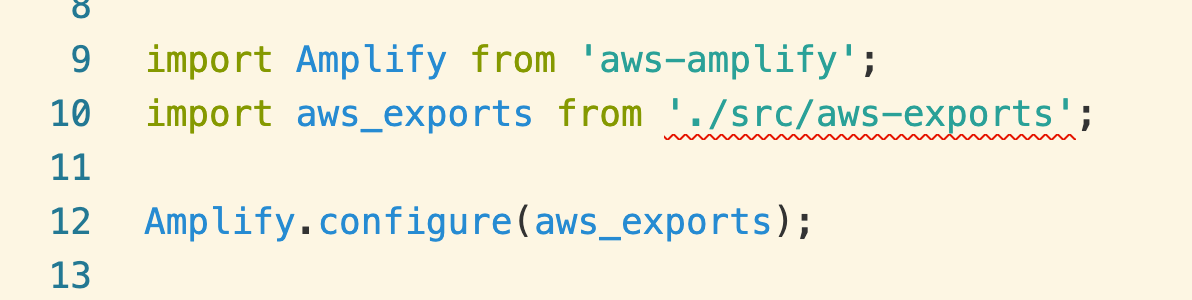

put this in the app.js or the index.js the base file.
