How to track Cognito events automatically through Pinpoint.

Before opening, please confirm:

• I have searched for duplicate or closed issues and discussions.
• I have read the guide for submitting bug reports.
• I have done my best to include a minimal, self-contained set of instructions for consistently reproducing the issue.

JavaScript Framework

React

Amplify APIs

Authentication, Analytics

Amplify Categories

auth, analytics

Environment information

System:
    OS: Linux 5.14 Fedora 34 (KDE Plasma)
    CPU: (12) x64 Intel(R) Core(TM) i7-8750H CPU @ 2.20GHz
    Memory: 1.46 GB / 15.29 GB
    Container: Yes
    Shell: 5.8 - /usr/bin/zsh
  Binaries:
    Node: 14.18.1 - /usr/bin/node
    npm: 6.14.15 - /usr/bin/npm
  Browsers:
    Firefox: 93.0
  npmGlobalPackages:
    @aws-amplify/cli: 5.3.1
    @microsoft/rush: 5.50.0
    @openscreen/sdk: 0.3.0
    aws-cdk: 1.118.0
    aws-sdk: 2.968.0
    eslint: 7.32.0
    pnpm: 6.7.1
    typescript: 4.3.5

The only package that is related to the issue is aws-amplify. The issue is captured on several 3.x.x and 4.x.x versions, incl. the latest one.

Describe the bug

Trying to have Cognito events (signups and signins) + session starts/ends appear in Pinpoint console. After creating a Congito User Pool and Pinpoint project outside Amplify (without using CLI) and putting them into Amplify.configure({...}) no events are being recorded. The only indication of the issue is a console message on the web app itself. See Log Output below.

Expected behavior

Auth usage (signIn, signUp, etc) as well as session starts being recorded by Pinpoint and are visible in Pinpoint Console.

Reproduction steps

Prerequisites are a Pinpoint project and Cognito User Pool

CDK, but doable through web console

// see '@aws-cdk/aws-pinpoint'
const app = new CfnApp(this, 'PinpointApp', {
      name: 'PinpointApp',
})
// cfnUserPoolClient instance of CfnUserPoolClient class in '@aws-cdk/aws-cognito'
cfnUserPoolClient.analyticsConfiguration = {
      applicationArn: app.attrArn
      userDataShared: true,
}

The steps are:

1. Install aws-amplify.
2. Amplify is configured with Auth and Analytics categories as per Amplify docs. See code snippet below

Code Snippet

Amplify.configure({
  Auth: {
    region: 'xxx',
    userPoolId: 'xxx',
    userPoolWebClientId: 'xxx'
  },
  Analytics: {
    disabled: false,
    autoSessionRecord: true,
    AWSPinpoint: {
        appId: 'xxx',
        region: 'xxx'
    },
  }
})

Log output

Uncaught (in promise) Error: No credentials, applicationId or region
    at AWSPinpointProvider.eval (AWSPinpointProvider.js:176)
    at step (AWSPinpointProvider.js:55)
    at Object.eval [as next] (AWSPinpointProvider.js:36)
    at fulfilled (AWSPinpointProvider.js:27)

Manual configuration

const awsmobile = {
  Auth: {
    region: 'xxx',
    userPoolId: 'xxx',
    userPoolWebClientId: 'xxx'
  },
  Analytics: {
    disabled: false,
    autoSessionRecord: true,
    AWSPinpoint: {
        appId: 'xxx',
        region: 'xxx'
    },
  }
}

Additional information

After going through 4-5 similar issues, I’ve tried multiple solutions, none of which have worked. In most of them it appears that people who got their issue resolved had it due to mismatching package versions or duplicates, which isn’t the case for me. Attaching mandatorySignIn: false to Auth category for .configure({...}) as per similar closed issues didn’t work.

[chrisbonifacio]

Oh okay, I think I understand your use case. You’ll still need to have an identity pool ID if using the Amplify Analytics library to record any events.

However, based off your use case, you can enable Cognito analytics in the console by navigating to your User Pool -> Analytics -> select an App Client and Pinpoint project.

You will need to adjust the IAM role permissions for the Auth Role of your Identity Pool. I configured mine like so but you can limit the mobileanalytics and mobiletargeting actions to just the Pinpoint project’s ARN:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "mobileanalytics:PutEvents",
                "mobiletargeting:PutEvents",
                "mobiletargeting:UpdateEndpoint",
                "cognito-sync:*",
                "cognito-identity:*"
            ],
            "Resource": [
                "*"
            ]
        }
    ]
}

Also, edit the Identity Pool and set the Cognito Authentication Provider to your User Pool and App Client IDs.

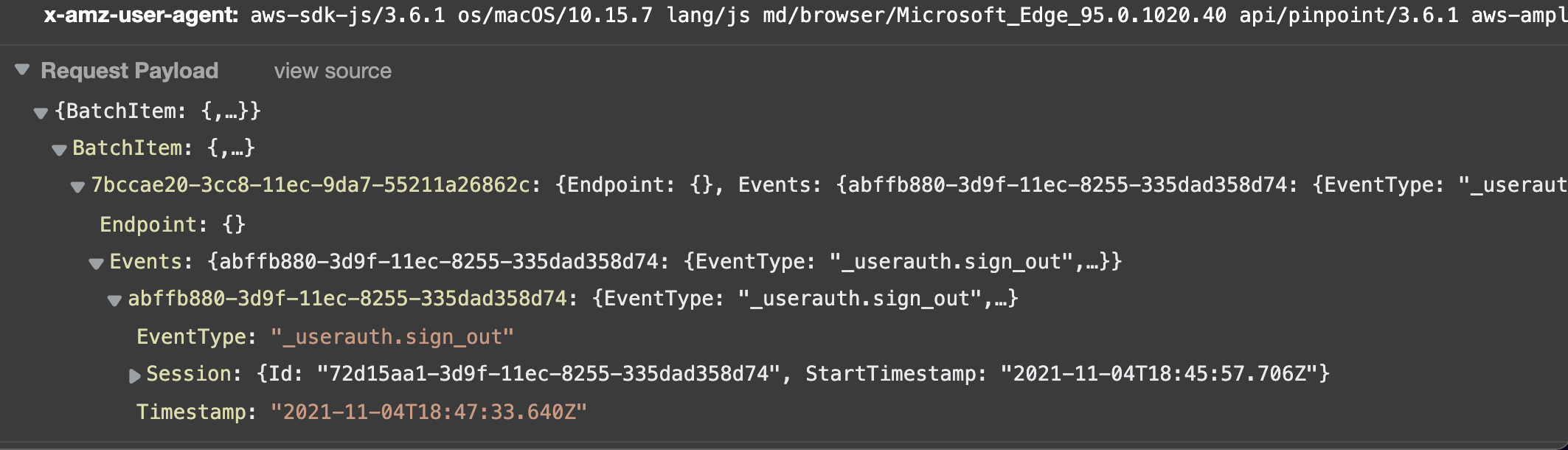

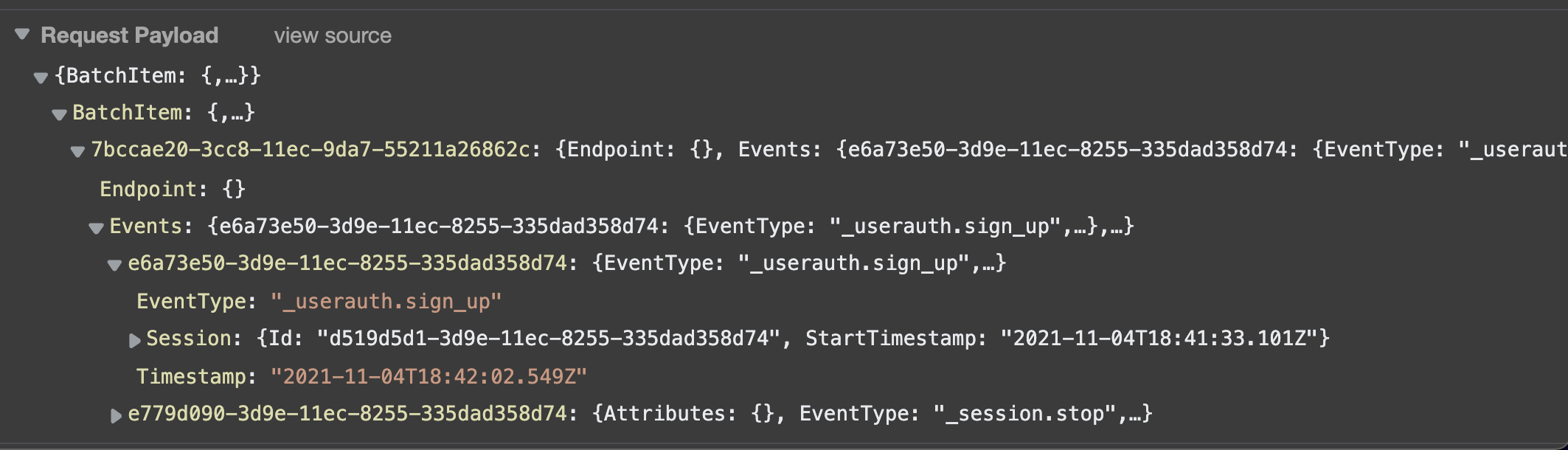

Afterwards, I can see that my app is automatically recording auth events and sending them to Pinpoint.

Sign Up

Sign In

Sign Out

[chrisbonifacio]

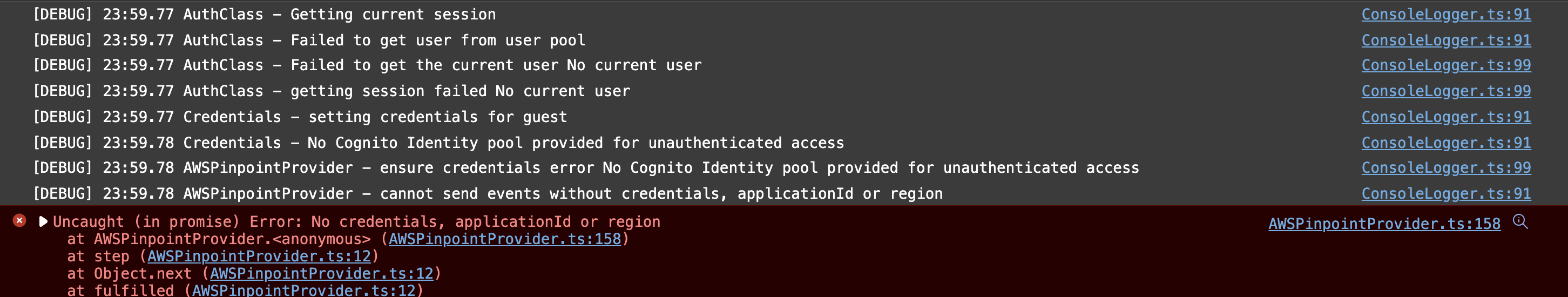

If you’re curious, this is how I was able to see that you needed to configure an Identity Pool by using the Amplify Debug Logger.

index.js

Amplify.Logger.LOG_LEVEL = "DEBUG";

Output with no identityPoolId property in Auth config
