AWS::RDS::OptionGroup OptionSettings spec vs docs

See original GitHub issue

cfn-lint version: 1.5.1

Lint failing due to spec discrepancy. CloudFormation successfully deploys.

E3002 Expecting an object at Resources/SqlServerOptionGroup/Properties/OptionConfigurations/0/OptionSettings

Spec - link

"AWS::RDS::OptionGroup.OptionConfiguration": {
  "Documentation": "http://docs.aws.amazon.com/AWSCloudFormation/latest/UserGuide/aws-properties-rds-optiongroup-optionconfigurations.html",
  "Properties": {
    "DBSecurityGroupMemberships": {REDACTED},
    "OptionName": {REDACTED},
    "OptionSettings": {
    "Documentation": "http://docs.aws.amazon.com/AWSCloudFormation/latest/UserGuide/aws-properties-rds-optiongroup-optionconfigurations.html#cfn-rds-optiongroup-optionconfigurations-optionsettings",
    "Required": false,
    "Type": "OptionSetting", <-- SHOULD BE LIST
    "UpdateType": "Mutable"
  },
  "OptionVersion": {REDACTED},
  "Port": {REDACTED},
  "VpcSecurityGroupMemberships": {REDACTED}
  }
},

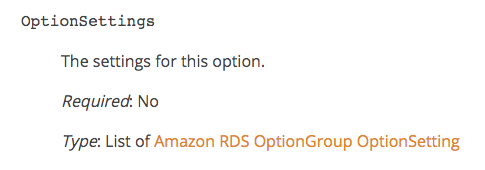

Doc - link

Sample

SqlServerOptionGroup:
  Type: AWS::RDS::OptionGroup
  Properties:
    EngineName: !Ref EngineName
    MajorEngineVersion: !Ref MajorEngineVersion
    OptionGroupDescription: rds-sql-optiongroup
    OptionConfigurations:
      - OptionName: SQLSERVER_BACKUP_RESTORE
        OptionSettings:
          - Name: IAM_ROLE_ARN
            Value: !GetAtt SqlServerBackupRestoreRole.Arn

Issue Analytics

State:
Created 5 years ago
Comments:7 (5 by maintainers)

Top GitHub Comments

1reaction

Zyavacommented, Apr 29, 2022

Ooops, sorry 🙂 that’s another attribute. I created new issue: https://github.com/aws-cloudformation/cfn-lint/issues/2258.

1reaction

mattcantycommented, Jul 4, 2018

I went with

cfn-lint:
    config:
      ignore_checks:
        - E3002

until the issue is resolved, this is OK with us for now.
