[Support]: Stationary person sensor for room occupancy issue

Describe the problem you are having

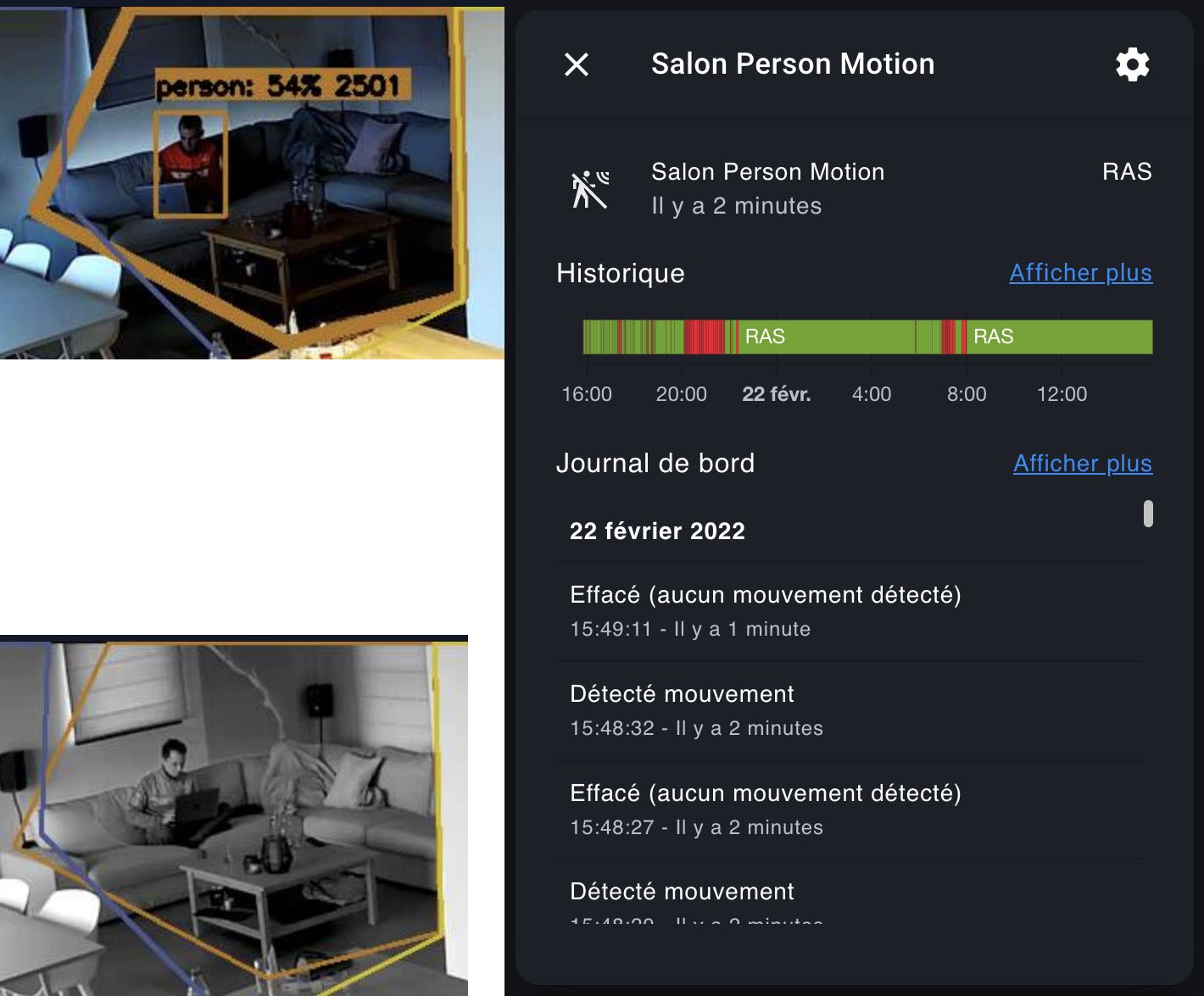

Hello, I’m glad to see that the new version add the ability to track stationary objects, I have a large room divided in 3 zones and I want to have a binary sensor that stay on when someone stay in a zone, I’m not sure that I understand correctly the new version (I have randomly tweaked the values but no change) because I can see that a person is detected in that zone in the debug mode but my binary sensor in Home Assistant goes on when I enter in the zone but then goes off after a few seconds.

Is there a way to tweak my code ?

A huge thank you in advance for your help and thank you for your work! 🙂

Version

0.10.0-BFECEE9

Frigate config file

The code of the room:

  main_room_pir:
    ffmpeg:
      inputs:
        - path: rtsp://192.168.0.12/live/ch00_1
          roles:
            - detect
    objects:
      track:
        - person
    motion:
      mask:
        #Mask the timestamp
        - 593,0,575,33,345,29,323,0
      contour_area: 30
    zones:
      salon:
        coordinates: 371,0,374,171,272,198,123,120,179,0
        objects:
          - person
      salle_a_manger:
        coordinates: 0,360,196,304,235,209,139,113,143,0,0,0
        objects:
          - person
      cuisine:
        coordinates: 640,360,0,360,0,360,375,173,371,0,640,0
        objects:
          - person
    detect:
      width: 640
      height: 360
      fps: 1
      enabled: True
      stationary:
        interval: 0
        max_frames:
          objects:
            person: 1000
    snapshots:
      enabled: false
      retain:
        default: 1
      required_zones:
        - salon
        - salle_a_manger
        - cuisine
    record:
      enabled: false
      retain:
        days: 1
        mode: motion
      events:
        retain:
          default: 3
          mode: active_objects
        required_zones:
          - salon
          - salle_a_manger
          - cuisine
    rtmp:
      enabled: False

Relevant log output

Log is ok (Only info and warning for the CPU)

FFprobe output from your camera

None

Frigate stats

None

Operating system

HassOS

Install method

HassOS Addon

Coral version

CPU (no coral)

Network connection

Wired

Camera make and model

Chinese camera

Any other information that may be helpful

_

[Quentin-Cloos]

Sorry I should have mentioned it, I have the 0.11.1 build.

I also had to lower the threshold to 0.5 and the min_area to 2000 for some zones but I don’t know if it’s related to this issue. I also changed this for a more sensitive detection:

motion:
  threshold: 10
  delta_alpha: 0.5
  frame_alpha: 0.3
  frame_height: 50

I can say that I have now a very solid occupancy detection in my zones.

[NickM-27]

@Raphael909 What that means is that once an object is considered stationary, there will be no detection run to confirm it is still there. detection will only be run when motion occurs. 0 is the default value for this and should remain that way for in this scenario.
