ct.rooms.merge prefab multiple times breaks ct.place.tile

Describe the bug Calling ct.rooms.merge to load parts of a room from prefabs works only if you load the prefab once. When loading the same prefab a second (or more) times into the same room, then the tileLayer.tiles instance for subsequent calls points to the first instance – thus updating the tiles array positions clobbers the first insance’s tiles, breaking any future calls to ct.place.tile.

For tile-based games where there a lots of tiles, you don’t want to create a Type for each tile that can block the player. Thus drawing all blocking tiles to a layer with a depth of -5 and calling ct.place.tile to test for collisions is the most optimal solution.

To Reproduce

1. Create a Prefab room
2. Add a tile layer with depth -5, set a tileset image and draw some blocking tiles.
3. Create a Main room and in the On Create Room Event load the prefab with ct.rooms.merge, applying offsets to the tileLayer (for drawing position) and for its tiles array (for collision detection)
4. Repeat step 3 with different offsets, to give two copies of the same prefab in your room
5. Any calls to ct.place.tile fails when over the tiles placed in point 3.

Expected behavior Each subsequent call to ct.rooms.merge should give the copy of tileLayer its own tiles object array, allowing you to merge the same prefab more than once in the current room.

Screenshots

Test control: First and Second blocks merged from TWO different prefabs:

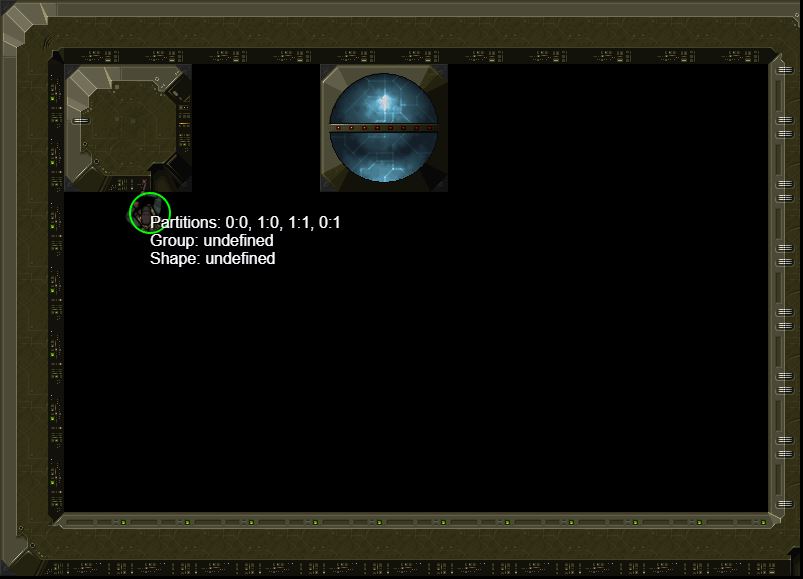

First control: blocks player

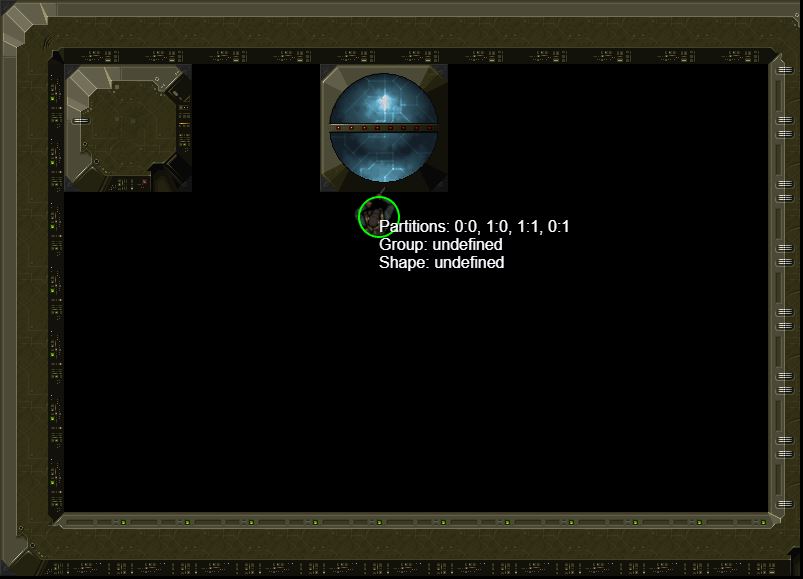

Second control: blocks player

Test: Merging the Second prefab in again (as Third):

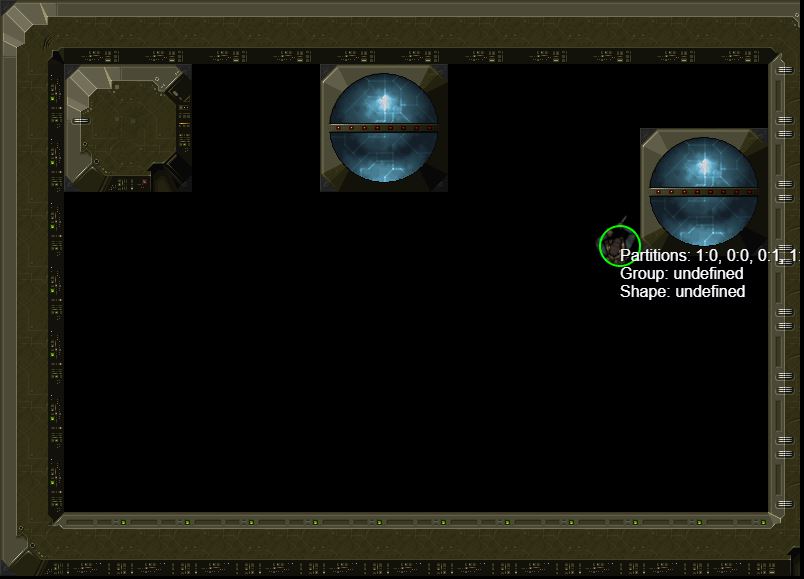

Test: Second does not block the player any more

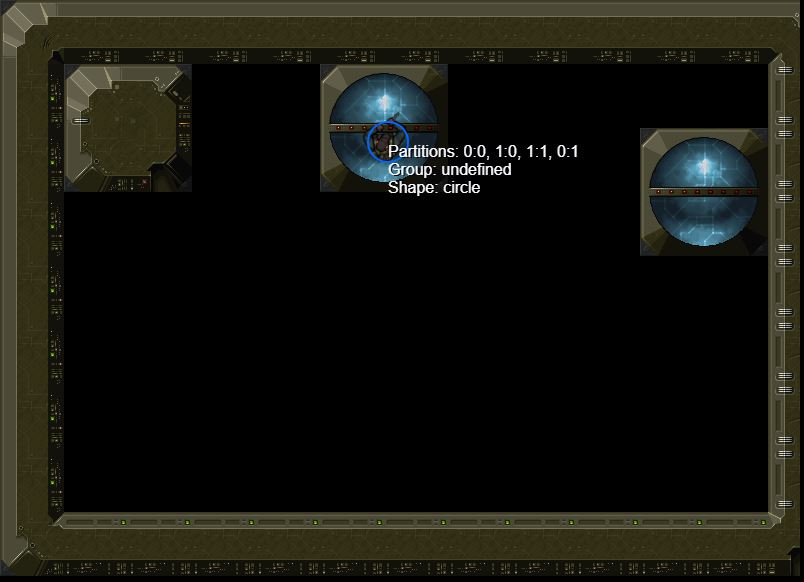

Test: Third does block

Example project roommergebugsample.zip

• Open Room “Main Level” and enter Room Events.

Versions:

• OS: Windows 10 x64
• ct.js version 1.3.1

Thanks

I want to say thanks to everyone involved in this project, it is a lovely tool 😃

[CosmoMyzrailGorynych]

I also currently recommend shifting visual tiles instead of moving their tileset until #128 is settled:

// Insert single prefab twice -- works
var data = ct.rooms.merge('Single Prefab');
for (const copy of data.tileLayers) {
    // offset the layer -- for drawing position
    copy.children.forEach((t) => {
        t.x += 64;
        t.y += 128;
    });
    // offset the tiles -- for collisions
    copy.tiles.forEach((t) => {
        t.x += 64;
        t.y += 128;
    });
}

[wesleywerner]

Excellent, thanks for all your effort on this wonderful project, Cosmo!
