can't see my fake Xiaomi temp sensor

Hi team,

I planned to develop my own BLE sensor, giving temperature and humidity, based on a nRF52 chip. I make my own sensor, just for fun.

I managed to deal with service datas, and get a advertising very similar to the one given in https://github.com/custom-components/ble_monitor/blob/master/protocol.md

> HCI Event: LE Meta Event (0x3e) plen 37                   #31 [hci0] 2.914649
      LE Advertising Report (0x02)
        Num reports: 1
        Event type: Connectable undirected - ADV_IND (0x00)
        Address type: Random (0x01)
        Address: FA:BE:32:DD:0D:36 (Static)
        Data length: 25
        Flags: 0x06
          LE General Discoverable Mode
          BR/EDR Not Supported
        Service Data (UUID 0xfe95): 5020aa0105360ddd32befa0d1004b2007502
        RSSI: -46 dBm (0xd2)

The only difference I can notice is the address type.

I installed ble_monitor through HACS, on a Home installation, in a python virtual env on a ubuntu server.

Here is the HA logs output:

2020-12-27 21:47:23 DEBUG (MainThread) [custom_components.ble_monitor.config_flow] async_step_init user_input: None
2020-12-27 21:47:23 DEBUG (MainThread) [custom_components.ble_monitor.config_flow] async_step_init (before): {'hci_interface': [0], 'period': 60, 'discovery': True, 'active_scan': False, 'report_unknown': True, 'batt_entities': False, 'rounding': True, 'decimals': 1, 'log_spikes': False, 'use_median': False, 'restore_state': False, 'devices': [{'mac': 'FA:BE:32:DD:0D:36', 'temperature_unit': '°C', 'name': 'FABE32DD0D36'}], 'is_flow': True}
2020-12-27 21:47:30 DEBUG (MainThread) [custom_components.ble_monitor.config_flow] async_step_init user_input: {'hci_interface': ['0'], 'period': 60, 'discovery': True, 'active_scan': False, 'report_unknown': True, 'batt_entities': False, 'rounding': True, 'decimals': 1, 'log_spikes': False, 'use_median': False, 'restore_state': False, 'devices': 'FA:BE:32:DD:0D:36'}
2020-12-27 21:47:30 DEBUG (MainThread) [custom_components.ble_monitor.config_flow] async_step_init (after): {'hci_interface': ['0'], 'period': 60, 'discovery': True, 'active_scan': False, 'report_unknown': True, 'batt_entities': False, 'rounding': True, 'decimals': 1, 'log_spikes': False, 'use_median': False, 'restore_state': False, 'devices': 'FA:BE:32:DD:0D:36'}
2020-12-27 21:47:32 DEBUG (MainThread) [custom_components.ble_monitor.config_flow] async_step_add_device: {'mac': 'FA:BE:32:DD:0D:36', 'temperature_unit': '°C', 'encryption_key': ''}
2020-12-27 21:47:42 DEBUG (MainThread) [custom_components.ble_monitor.binary_sensor] 0 MiBeacon BLE ADV messages processed for 0 binary sensor device(s) total. Priority queue = 0
2020-12-27 21:47:42 DEBUG (MainThread) [custom_components.ble_monitor.sensor] 0 MiBeacon BLE ADV messages processed for 1 measuring device(s).
2020-12-27 21:47:42 DEBUG (Thread-8) [custom_components.ble_monitor] HCIdump thread: main event_loop stopped, finishing
2020-12-27 21:47:42 DEBUG (Thread-8) [custom_components.ble_monitor] HCIdump thread: Scanning will be restarted
2020-12-27 21:47:42 DEBUG (Thread-8) [custom_components.ble_monitor] 2618 HCI events processed for previous period.
2020-12-27 21:47:42 DEBUG (Thread-8) [custom_components.ble_monitor] HCIdump thread: Run
2020-12-27 21:47:42 DEBUG (Thread-8) [custom_components.ble_monitor] HCIdump thread: connected to hci0
2020-12-27 21:47:42 DEBUG (Thread-8) [custom_components.ble_monitor] HCIdump thread: start main event_loop
2020-12-27 21:48:42 DEBUG (MainThread) [custom_components.ble_monitor.binary_sensor] 0 MiBeacon BLE ADV messages processed for 0 binary sensor device(s) total. Priority queue = 0
2020-12-27 21:48:42 DEBUG (MainThread) [custom_components.ble_monitor.sensor] 0 MiBeacon BLE ADV messages processed for 1 measuring device(s).
2020-12-27 21:48:42 DEBUG (Thread-8) [custom_components.ble_monitor] HCIdump thread: main event_loop stopped, finishing
2020-12-27 21:48:42 DEBUG (Thread-8) [custom_components.ble_monitor] HCIdump thread: Scanning will be restarted
2020-12-27 21:48:42 DEBUG (Thread-8) [custom_components.ble_monitor] 2473 HCI events processed for previous period.
2020-12-27 21:48:42 DEBUG (Thread-8) [custom_components.ble_monitor] HCIdump thread: Run
2020-12-27 21:48:42 DEBUG (Thread-8) [custom_components.ble_monitor] HCIdump thread: connected to hci0
2020-12-27 21:48:42 DEBUG (Thread-8) [custom_components.ble_monitor] HCIdump thread: start main event_loop
2020-12-27 21:49:42 DEBUG (MainThread) [custom_components.ble_monitor.binary_sensor] 0 MiBeacon BLE ADV messages processed for 0 binary sensor device(s) total. Priority queue = 0
2020-12-27 21:49:42 DEBUG (MainThread) [custom_components.ble_monitor.sensor] 0 MiBeacon BLE ADV messages processed for 1 measuring device(s).
2020-12-27 21:49:42 DEBUG (Thread-8) [custom_components.ble_monitor] HCIdump thread: main event_loop stopped, finishing
2020-12-27 21:49:42 DEBUG (Thread-8) [custom_components.ble_monitor] HCIdump thread: Scanning will be restarted
2020-12-27 21:49:42 DEBUG (Thread-8) [custom_components.ble_monitor] 2281 HCI events processed for previous period.
2020-12-27 21:49:42 DEBUG (Thread-8) [custom_components.ble_monitor] HCIdump thread: Run
2020-12-27 21:49:42 DEBUG (Thread-8) [custom_components.ble_monitor] HCIdump thread: connected to hci0
2020-12-27 21:49:42 DEBUG (Thread-8) [custom_components.ble_monitor] HCIdump thread: start main event_loop

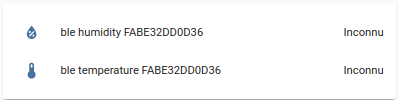

The sensor is present (FA:BE:32:DD:0D:36), but not data appears in HA.

I probably missed something, but where?

Thanks for your job and support. Vincent

[vbelloir]

Yes, for sure. Right now, I’m working on a private git repo, but later, I will publish it on a framagit or github.

[Ernst79]

You’re welcome. If you ever think of writing a tutorial how you did this, please give us a link or even better create a PR with a new page on this repository.
