TrueNAS SCALE 21.04 -- iscsi/nfs crash loop

Acknowledging that TrueNAS SCALE is in alpha, I’m having trouble getting democratic-csi to work at all (freenas-iscsi, freenas-nfs, nfs-client). I’m using Rancher as a GUI for over a k3s cluster, if it makes a difference.

To just debug one problem at a time, here is my iscsi setup:

• I have installed the prerequisites on every node
• I have set up a portal and initiator on TrueNAS, and I know iscsi works fine because I have vSphere connecting to a different iscsi target using a different portal and different initator.
• I have created a csi user, provided my public key, and allowed no-password sudo on the TrueNAS CLI.

Whenever I try to create a PVC, it gets stuck in pending status. I can see that the volume gets created on TrueNas: Once in a while it will make it to bound, but then I cannot use the PVC:

Unable to attach or mount volumes: unmounted volumes=[redis-data], unattached volumes=[redis-data config redis-tmp-conf tmp redis-token-bmq9m start-scripts health]: timed out waiting for the condition
MountVolume.MountDevice failed for volume "pvc-b9269150-0a75-40e3-b1c2-6b5722904c07" : rpc error: code = Aborted desc = operation locked due to in progress operation(s): ["volume_id_pvc-b9269150-0a75-40e3-b1c2-6b5722904c07"]

However, the csi pod ends up stuck in a crashloopbackoff status.

Here’s the subset of the logs that I believe are pertinent (a huge amount of goroutine ## ... follows. I can share if required.

I0606 00:12:35.566992       1 controller.go:1335] provision "default/test-csi-iscsi" class "csi-truenas-iscsi": started
W0606 00:12:35.568611       1 controller.go:570] "fstype" is deprecated and will be removed in a future release, please use "csi.storage.k8s.io/fstype" instead
I0606 00:12:35.568703       1 event.go:282] Event(v1.ObjectReference{Kind:"PersistentVolumeClaim", Namespace:"default", Name:"test-csi-iscsi", UID:"f9597109-9668-4672-81a4-3ef1d90ed13c", APIVersion:"v1", ResourceVersion:"5146721", FieldPath:""}): type: 'Normal' reason: 'Provisioning' External provisioner is provisioning volume for claim "default/test-csi-iscsi"
I0606 00:12:35.568830       1 controller.go:731] CreateVolumeRequest name:"pvc-f9597109-9668-4672-81a4-3ef1d90ed13c" capacity_range:<required_bytes:536870912 > volume_capabilities:<mount:<fs_type:"xfs" > access_mode:<mode:SINGLE_NODE_WRITER > > parameters:<key:"csi.storage.k8s.io/pv/name" value:"pvc-f9597109-9668-4672-81a4-3ef1d90ed13c" > parameters:<key:"csi.storage.k8s.io/pvc/name" value:"test-csi-iscsi" > parameters:<key:"csi.storage.k8s.io/pvc/namespace" value:"default" > parameters:<key:"fsType" value:"xfs" >
I0606 00:12:35.573848       1 connection.go:182] GRPC call: /csi.v1.Controller/CreateVolume
I0606 00:12:35.573896       1 connection.go:183] GRPC request: {"capacity_range":{"required_bytes":536870912},"name":"pvc-f9597109-9668-4672-81a4-3ef1d90ed13c","parameters":{"csi.storage.k8s.io/pv/name":"pvc-f9597109-9668-4672-81a4-3ef1d90ed13c","csi.storage.k8s.io/pvc/name":"test-csi-iscsi","csi.storage.k8s.io/pvc/namespace":"default","fsType":"xfs"},"volume_capabilities":[{"AccessType":{"Mount":{"fs_type":"xfs"}},"access_mode":{"mode":1}}]}
I0606 00:12:38.562702       1 leaderelection.go:273] successfully renewed lease democratic-csi/org-democratic-csi-truenas-iscsi
I0606 00:12:43.596482       1 leaderelection.go:273] successfully renewed lease democratic-csi/org-democratic-csi-truenas-iscsi
I0606 00:12:48.662538       1 leaderelection.go:273] successfully renewed lease democratic-csi/org-democratic-csi-truenas-iscsi
I0606 00:12:52.518999       1 connection.go:185] GRPC response: {}
E0606 00:12:52.519388       1 connection.go:131] Lost connection to unix:///csi-data/csi.sock.
I0606 00:12:52.519361       1 connection.go:186] GRPC error: rpc error: code = Unavailable desc = transport is closing
I0606 00:12:52.519580       1 controller.go:752] CreateVolume failed, supports topology = false, node selected false => may reschedule = false => state = Background: rpc error: code = Unavailable desc = transport is closing
I0606 00:12:52.519964       1 controller.go:1109] Temporary error received, adding PVC f9597109-9668-4672-81a4-3ef1d90ed13c to claims in progress
W0606 00:12:52.520127       1 controller.go:961] Retrying syncing claim "f9597109-9668-4672-81a4-3ef1d90ed13c", failure 0
E0606 00:12:52.520297       1 controller.go:984] error syncing claim "f9597109-9668-4672-81a4-3ef1d90ed13c": failed to provision volume with StorageClass "csi-truenas-iscsi": rpc error: code = Unavailable desc = transport is closing
I0606 00:12:52.520513       1 controller.go:1335] provision "default/test-csi-iscsi" class "csi-truenas-iscsi": started
F0606 00:12:52.520582       1 connection.go:87] Lost connection to CSI driver, exiting

Here are the logs from the csi-driver:

{"service":"democratic-csi","level":"info","message":"initializing csi driver: freenas-iscsi"}
6/5/2021 8:45:56 PM {"service":"democratic-csi","level":"info","message":"starting csi server - name: org.democratic-csi.truenas-iscsi, version: 1.2.0, driver: freenas-iscsi, mode: controller, csi version: 1.2.0, address: , socket: unix:///csi-data/csi.sock"}
6/5/2021 8:46:11 PM {"service":"democratic-csi","level":"info","message":"new request - driver: FreeNASDriver method: Probe call: {\"_events\":{},\"_eventsCount\":1,\"call\":{},\"cancelled\":false,\"metadata\":{\"_internal_repr\":{\"user-agent\":[\"grpc-go/1.34.0\"]},\"flags\":0},\"request\":{}}"}
6/5/2021 8:46:11 PM {"service":"democratic-csi","level":"info","message":"new request - driver: FreeNASDriver method: Probe call: {\"_events\":{},\"_eventsCount\":1,\"call\":{},\"cancelled\":false,\"metadata\":{\"_internal_repr\":{\"user-agent\":[\"grpc-go/1.34.0\"]},\"flags\":0},\"request\":{}}"}
6/5/2021 8:46:11 PM {"service":"democratic-csi","level":"info","message":"new request - driver: FreeNASDriver method: GetPluginInfo call: {\"_events\":{},\"_eventsCount\":1,\"call\":{},\"cancelled\":false,\"metadata\":{\"_internal_repr\":{\"user-agent\":[\"grpc-go/1.29.0\"]},\"flags\":0},\"request\":{}}"}
6/5/2021 8:46:11 PM {"service":"democratic-csi","level":"info","message":"new response - driver: FreeNASDriver method: GetPluginInfo response: {\"name\":\"org.democratic-csi.truenas-iscsi\",\"vendor_version\":\"1.2.0\"}"}
6/5/2021 8:46:11 PM {"service":"democratic-csi","level":"info","message":"new request - driver: FreeNASDriver method: Probe call: {\"_events\":{},\"_eventsCount\":1,\"call\":{},\"cancelled\":false,\"metadata\":{\"_internal_repr\":{\"user-agent\":[\"grpc-go/1.29.0\"]},\"flags\":0},\"request\":{}}"}
6/5/2021 8:46:17 PM {"service":"democratic-csi","level":"info","message":"new response - driver: FreeNASDriver method: Probe response: {\"ready\":{\"value\":true}}"}
6/5/2021 8:46:17 PM {"service":"democratic-csi","level":"info","message":"new request - driver: FreeNASDriver method: GetPluginInfo call: {\"_events\":{},\"_eventsCount\":1,\"call\":{},\"cancelled\":false,\"metadata\":{\"_internal_repr\":{\"user-agent\":[\"grpc-go/1.34.0\"]},\"flags\":0},\"request\":{}}"}
6/5/2021 8:46:17 PM {"service":"democratic-csi","level":"info","message":"new response - driver: FreeNASDriver method: GetPluginInfo response: {\"name\":\"org.democratic-csi.truenas-iscsi\",\"vendor_version\":\"1.2.0\"}"}
6/5/2021 8:46:17 PM {"service":"democratic-csi","level":"info","message":"new request - driver: FreeNASDriver method: GetPluginCapabilities call: {\"_events\":{},\"_eventsCount\":1,\"call\":{},\"cancelled\":false,\"metadata\":{\"_internal_repr\":{\"user-agent\":[\"grpc-go/1.34.0\"]},\"flags\":0},\"request\":{}}"}
6/5/2021 8:46:17 PM {"service":"democratic-csi","level":"info","message":"new response - driver: FreeNASDriver method: GetPluginCapabilities response: {\"capabilities\":[{\"service\":{\"type\":\"CONTROLLER_SERVICE\"}},{\"volume_expansion\":{\"type\":\"ONLINE\"}}]}"}
6/5/2021 8:46:17 PM {"service":"democratic-csi","level":"info","message":"new request - driver: FreeNASDriver method: ControllerGetCapabilities call: {\"_events\":{},\"_eventsCount\":1,\"call\":{},\"cancelled\":false,\"metadata\":{\"_internal_repr\":{\"user-agent\":[\"grpc-go/1.34.0\"]},\"flags\":0},\"request\":{}}"}
6/5/2021 8:46:17 PM {"service":"democratic-csi","level":"info","message":"new response - driver: FreeNASDriver method: ControllerGetCapabilities response: {\"capabilities\":[{\"rpc\":{\"type\":\"CREATE_DELETE_VOLUME\"}},{\"rpc\":{\"type\":\"LIST_VOLUMES\"}},{\"rpc\":{\"type\":\"GET_CAPACITY\"}},{\"rpc\":{\"type\":\"CREATE_DELETE_SNAPSHOT\"}},{\"rpc\":{\"type\":\"LIST_SNAPSHOTS\"}},{\"rpc\":{\"type\":\"CLONE_VOLUME\"}},{\"rpc\":{\"type\":\"EXPAND_VOLUME\"}}]}"}
6/5/2021 8:46:23 PM {"service":"democratic-csi","level":"info","message":"new response - driver: FreeNASDriver method: Probe response: {\"ready\":{\"value\":true}}"}
6/5/2021 8:46:23 PM {"service":"democratic-csi","level":"info","message":"new request - driver: FreeNASDriver method: GetPluginInfo call: {\"_events\":{},\"_eventsCount\":1,\"call\":{},\"cancelled\":false,\"metadata\":{\"_internal_repr\":{\"user-agent\":[\"grpc-go/1.34.0\"]},\"flags\":0},\"request\":{}}"}
6/5/2021 8:46:23 PM {"service":"democratic-csi","level":"info","message":"new response - driver: FreeNASDriver method: GetPluginInfo response: {\"name\":\"org.democratic-csi.truenas-iscsi\",\"vendor_version\":\"1.2.0\"}"}
6/5/2021 8:46:23 PM {"service":"democratic-csi","level":"info","message":"new request - driver: FreeNASDriver method: GetPluginCapabilities call: {\"_events\":{},\"_eventsCount\":1,\"call\":{},\"cancelled\":false,\"metadata\":{\"_internal_repr\":{\"user-agent\":[\"grpc-go/1.34.0\"]},\"flags\":0},\"request\":{}}"}
6/5/2021 8:46:23 PM {"service":"democratic-csi","level":"info","message":"new response - driver: FreeNASDriver method: GetPluginCapabilities response: {\"capabilities\":[{\"service\":{\"type\":\"CONTROLLER_SERVICE\"}},{\"volume_expansion\":{\"type\":\"ONLINE\"}}]}"}
6/5/2021 8:46:23 PM {"service":"democratic-csi","level":"info","message":"new request - driver: FreeNASDriver method: ControllerGetCapabilities call: {\"_events\":{},\"_eventsCount\":1,\"call\":{},\"cancelled\":false,\"metadata\":{\"_internal_repr\":{\"user-agent\":[\"grpc-go/1.34.0\"]},\"flags\":0},\"request\":{}}"}
6/5/2021 8:46:23 PM {"service":"democratic-csi","level":"info","message":"new response - driver: FreeNASDriver method: ControllerGetCapabilities response: {\"capabilities\":[{\"rpc\":{\"type\":\"CREATE_DELETE_VOLUME\"}},{\"rpc\":{\"type\":\"LIST_VOLUMES\"}},{\"rpc\":{\"type\":\"GET_CAPACITY\"}},{\"rpc\":{\"type\":\"CREATE_DELETE_SNAPSHOT\"}},{\"rpc\":{\"type\":\"LIST_SNAPSHOTS\"}},{\"rpc\":{\"type\":\"CLONE_VOLUME\"}},{\"rpc\":{\"type\":\"EXPAND_VOLUME\"}}]}"}
6/5/2021 8:46:23 PM {"service":"democratic-csi","level":"info","message":"new response - driver: FreeNASDriver method: Probe response: {\"ready\":{\"value\":true}}"}
6/5/2021 8:46:23 PM {"service":"democratic-csi","level":"info","message":"new request - driver: FreeNASDriver method: ControllerGetCapabilities call: {\"_events\":{},\"_eventsCount\":1,\"call\":{},\"cancelled\":false,\"metadata\":{\"_internal_repr\":{\"user-agent\":[\"grpc-go/1.29.0\"]},\"flags\":0},\"request\":{}}"}
6/5/2021 8:46:23 PM {"service":"democratic-csi","level":"info","message":"new response - driver: FreeNASDriver method: ControllerGetCapabilities response: {\"capabilities\":[{\"rpc\":{\"type\":\"CREATE_DELETE_VOLUME\"}},{\"rpc\":{\"type\":\"LIST_VOLUMES\"}},{\"rpc\":{\"type\":\"GET_CAPACITY\"}},{\"rpc\":{\"type\":\"CREATE_DELETE_SNAPSHOT\"}},{\"rpc\":{\"type\":\"LIST_SNAPSHOTS\"}},{\"rpc\":{\"type\":\"CLONE_VOLUME\"}},{\"rpc\":{\"type\":\"EXPAND_VOLUME\"}}]}"}
6/5/2021 8:46:41 PM {"service":"democratic-csi","level":"info","message":"new request - driver: FreeNASDriver method: Probe call: {\"_events\":{},\"_eventsCount\":1,\"call\":{},\"cancelled\":false,\"metadata\":{\"_internal_repr\":{\"user-agent\":[\"grpc-node/1.24.0-pre1 grpc-c/8.0.0 (linux; chttp2; game)\"]},\"flags\":0},\"request\":{}}"}
6/5/2021 8:46:51 PM {"service":"democratic-csi","level":"info","message":"new response - driver: FreeNASDriver method: Probe response: {\"ready\":{\"value\":true}}"}
6/5/2021 8:47:41 PM {"service":"democratic-csi","level":"info","message":"new request - driver: FreeNASDriver method: Probe call: {\"_events\":{},\"_eventsCount\":1,\"call\":{},\"cancelled\":false,\"metadata\":{\"_internal_repr\":{\"user-agent\":[\"grpc-node/1.24.0-pre1 grpc-c/8.0.0 (linux; chttp2; game)\"]},\"flags\":0},\"request\":{}}"}
6/5/2021 8:48:01 PM {"service":"democratic-csi","level":"error","message":"handler error - driver: FreeNASDriver method: Probe error: Error: Timed out while waiting for handshake"}
6/5/2021 8:48:01 PM { code: 13, message: 'Error: Timed out while waiting for handshake' }
6/5/2021 8:48:41 PM {"service":"democratic-csi","level":"info","message":"new request - driver: FreeNASDriver method: Probe call: {\"_events\":{},\"_eventsCount\":1,\"call\":{},\"cancelled\":false,\"metadata\":{\"_internal_repr\":{\"user-agent\":[\"grpc-node/1.24.0-pre1 grpc-c/8.0.0 (linux; chttp2; game)\"]},\"flags\":0},\"request\":{}}"}
6/5/2021 8:48:53 PM {"service":"democratic-csi","level":"info","message":"new response - driver: FreeNASDriver method: Probe response: {\"ready\":{\"value\":true}}"}
6/5/2021 8:49:41 PM {"service":"democratic-csi","level":"info","message":"new request - driver: FreeNASDriver method: Probe call: {\"_events\":{},\"_eventsCount\":1,\"call\":{},\"cancelled\":false,\"metadata\":{\"_internal_repr\":{\"user-agent\":[\"grpc-node/1.24.0-pre1 grpc-c/8.0.0 (linux; chttp2; game)\"]},\"flags\":0},\"request\":{}}"}
6/5/2021 8:49:53 PM {"service":"democratic-csi","level":"info","message":"new response - driver: FreeNASDriver method: Probe response: {\"ready\":{\"value\":true}}"}
6/5/2021 8:50:41 PM {"service":"democratic-csi","level":"info","message":"new request - driver: FreeNASDriver method: Probe call: {\"_events\":{},\"_eventsCount\":1,\"call\":{},\"cancelled\":false,\"metadata\":{\"_internal_repr\":{\"user-agent\":[\"grpc-node/1.24.0-pre1 grpc-c/8.0.0 (linux; chttp2; game)\"]},\"flags\":0},\"request\":{}}"}
6/5/2021 8:50:43 PM running server shutdown, exit code: SIGTERM

Here are my helm values:

csiDriver:
  name: "org.democratic-csi.truenas-iscsi"

driver:
  # see the driver-config-secret.yaml template for syntax
  existingConfigSecret: democratic-csi-driver-config-iscsi-secret
  config:
    driver: freenas-iscsi

storageClasses:
- name: csi-truenas-iscsi
  defaultClass: false
  reclaimPolicy: Delete
  volumeBindingMode: Immediate
  allowVolumeExpansion: true
  parameters:
    # for block-based storage can be ext3, ext4, xfs
    fsType: xfs
  mountOptions: []
  # secrets:
  #   provisioner-secret:
  #   controller-publish-secret:
  #   node-stage-secret:
  #   node-publish-secret:
  #   controller-expand-secret:

# ## if your cluster supports snapshots you may enable below
# volumeSnapshotClasses: []
# #- name: freenas-nfs-csi
# #  parameters:
# #  # if true, snapshots will be created with zfs send/receive
# #  # detachedSnapshots: "false"
# #  secrets:
# #    snapshotter-secret:

node:
  rbac:
    enabled: true
  enabled: true
  hostNetwork: true
  hostIPC: true
  kubeletHostPath: /var/lib/kubelet

and here is the secret:

---
apiVersion: v1
kind: Secret
type: Opaque
metadata:
  name: democratic-csi-driver-config-iscsi-secret
  namespace: democratic-csi
  # labels:
  #   app.kubernetes.io/name: {{ include "democratic-csi.name" . }}
  #   helm.sh/chart: {{ include "democratic-csi.chart" . }}
  #   app.kubernetes.io/instance: {{ .Release.Name }}
  #   app.kubernetes.io/managed-by: {{ .Release.Service }}
stringData:
  driver-config-file.yaml: |-
    driver: freenas-iscsi
    instance_id:
    httpConnection:
      protocol: http
      host: '10.2.2.1'
      port: 80
      # use only 1 of apiKey or username/password
      # if both are present, apiKey is preferred
      # apiKey is only available starting in TrueNAS-12
      apiKey: 'REDACTED'
      # username: csi
      # password: ""
      allowInsecure: true
      # use apiVersion 2 for TrueNAS-12 and up (will work on 11.x in some scenarios as well)
      # leave unset for auto-detection
      #apiVersion: 2
    sshConnection:
      host: '10.2.2.1'
      port: 22
      username: csi
      # use either password or key
      # password: ""
      privateKey: |
        -----BEGIN OPENSSH PRIVATE KEY-----
        REDACTED
        -----END OPENSSH PRIVATE KEY-----
    zfs:
      cli:
        ## allow non-root user to sudo
        sudoEnabled: true
      ## leave paths unset for auto-detection
      #  paths:
      #   zfs: /usr/local/sbin/zfs
      #   zpool: /usr/local/sbin/zpool
      #   sudo: /usr/local/bin/sudo
      #   chroot: /usr/sbin/chroot

      # can be used to set arbitrary values on the dataset/zvol
      # can use handlebars templates with the parameters from the storage class/CO
      datasetProperties:
        "org.freenas:description": "{{ parameters.[csi.storage.k8s.io/pvc/namespace] }}/{{ parameters.[csi.storage.k8s.io/pvc/name] }}"

      # total volume name (zvol/<datasetParentName>/<pvc name>) length cannot exceed 63 chars
      # https://www.ixsystems.com/documentation/freenas/11.2-U5/storage.html#zfs-zvol-config-opts-tab
      # standard volume naming overhead is 46 chars
      # datasetParentName should therefore be 17 chars or less
      datasetParentName: ssdpool/csi/ixi/v
      ## do NOT make datasetParentName and detachedSnapshotsDatasetParentName overlap
      ## they may be siblings, but neither should be nested in the other
      detachedSnapshotsDatasetParentName: ssdpool/csi/ixi/s

    iscsi:
      targetPortal: "10.2.2.1:3260"  # specific address for iscsi
      targetPortals: []
      # leave empty to omit usage of -I with iscsiadm
      interface:
      nameTemplate: "{{ parameters.[csi.storage.k8s.io/pvc/namespace] }}-{{ parameters.[csi.storage.k8s.io/pvc/name] }}"
      namePrefix: csi-
      # nameSuffix: "-cluster"
      # add as many as needed
      targetGroups:
        # get the correct ID from the "portal" section in the UI
        - targetGroupPortalGroup: 2
          # get the correct ID from the "initiators" section in the UI
          targetGroupInitiatorGroup: 3
          # None, CHAP, or CHAP Mutual
          targetGroupAuthType: None
          # get the correct ID from the "Authorized Access" section of the UI
          # only required if using Chap
          targetGroupAuthGroup:
      extentInsecureTpc: true
      extentXenCompat: false
      extentDisablePhysicalBlocksize: true
      # 512, 1024, 2048, or 4096,
      extentBlocksize: 4096
      # "" (let FreeNAS decide, currently defaults to SSD), Unknown, SSD, 5400, 7200, 10000, 15000
      extentRpm: "SSD"
      # 0-100 (0 == ignore)
      extentAvailThreshold: 0

[ahgraber]

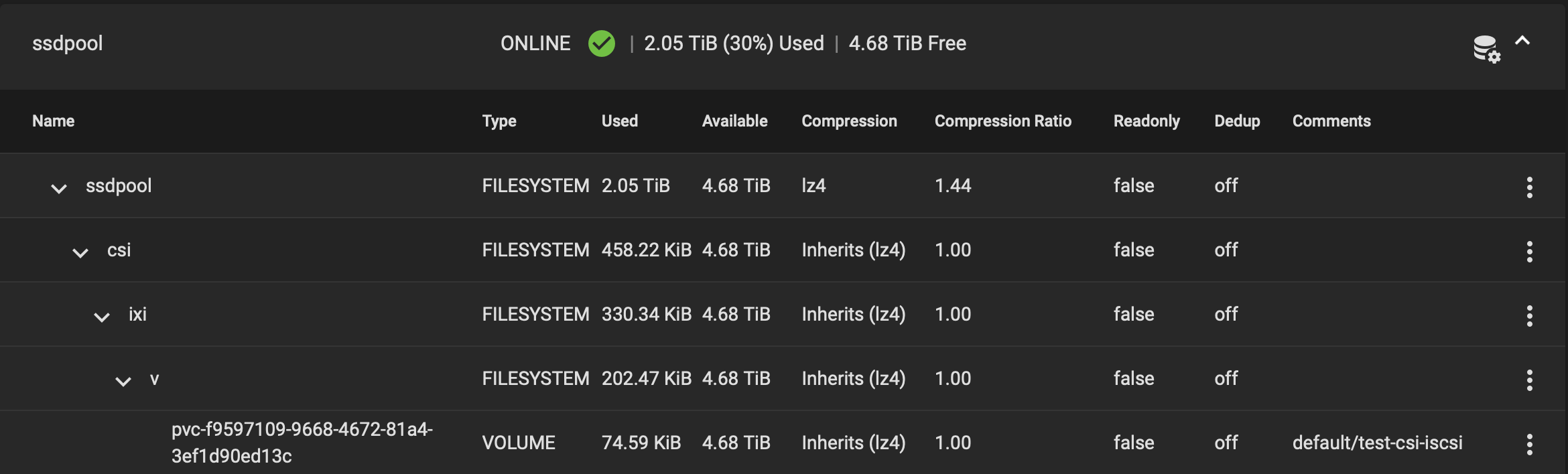

Quick update: The iscsi storageClass and deployment are working just fine. The nfs one is generally functional, but continuously has to restart the controller because it gets a timeout on the liveness probe. I’m going to keep monitoring, but probably won’t muck with the current config until I update truenas when the next version of SCALE releases (next week).

P.S. Just edited the title to be more descriptive if someone is searching through the issues.

[ahgraber]

I restarted the nfs service with sudo systemctl restart nfs-ganesha and things started working. I’m guessing this is some bug on the Truenas SCALE side, since running down the list of systemd services showed a bunch having errored out (like logrotate).
I should probably reboot the system, but I have to reconfigure the networking every time I do so due to another bug…
