[Bug] RangeSlider (XCT compat renderer) is not shown using Grid

Description

I’m trying to use RangeSlider from xct using compat renderer with StackLayout as the parent and Grid for the whole layout but it’s not shown in the layout.

Steps to Reproduce

1. Create new maui app
2. Create grid with column definitions Auto,Auto,Auto,Auto,*,auto,auto
3. Create layout for the respective column definitions except the last one
4. Create layout in xaml inside Grid

<StackLayout
            x:Name="Footer"
            Grid.Row="5">
            <ContentView
                HeightRequest="50"
                BackgroundColor="Red"/>

            <ContentView
                x:Name="ContentView"/>
            </StackLayout>

1. and then in code behind set ContentView to use RangeSlider

var range = new RangeSlider();
ContentView.Content = range;

Expected Behavior

Layout is correctly resized and the range slider (compat renderer) is shown

Actual Behavior

Layout is not correclty resized and the range slider (compat renderer) is not shown

Basic Information

• Version with issue: dotnet 6.0.100-rc.1.21463.6
• Last known good version:
• IDE: vscode (with command line)
• Platform Target Frameworks:
  • iOS:
  • Android: 12
  • UWP:
• Android Support Library Version:
• Nuget Packages:
• Affected Devices:

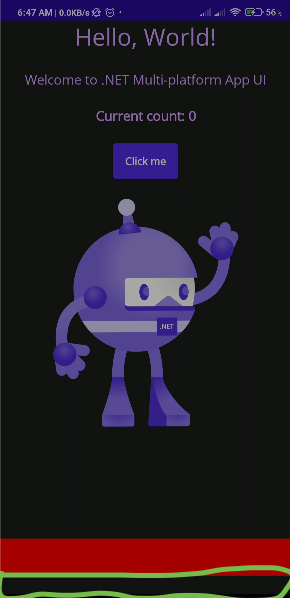

Screenshots

Reproduction Link

TestMaui.zip

Workaround

[VladislavAntonyuk]

Yes, we have the same issue for expander https://github.com/xamarin/XamarinCommunityToolkit/issues/1788

[yunusefendi52]

@pictos let me try again this weekend
