Shell.FlyoutBehavior="Locked" shows empy menu on Andriod

See original GitHub issue

Description

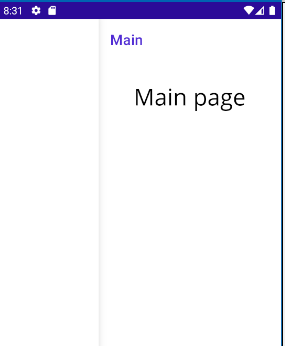

Having a shell with Shell.FlyoutBehavior="Locked" shows an empy menu on Android:

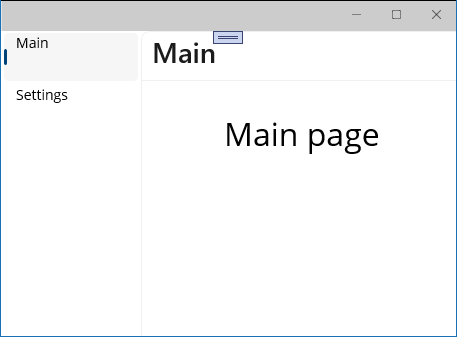

But works fine on Windows:


Steps to Reproduce

  1. Create a new MAUI app
  2. Update shell:
<?xml version="1.0" encoding="UTF-8" ?>
<Shell
    x:Class="MauiIssues.AppShell"
    xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
    xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
    xmlns:local="clr-namespace:MauiIssues"
    FlyoutWidth="140"
    Shell.FlyoutBehavior="Locked">

    <FlyoutItem Title="Main">
        <ShellContent ContentTemplate="{DataTemplate local:MainPage}"/>
    </FlyoutItem>

    <FlyoutItem Title="Settings">
        <ShellContent ContentTemplate="{DataTemplate local:SettingsPage}"/>
    </FlyoutItem>

    <Shell.ItemTemplate>
        <DataTemplate>
            <Grid RowDefinitions="50" HeightRequest="50">
                <Label Text="{Binding Title}"
                       TextColor="Black"
                               />
            </Grid>
        </DataTemplate>
    </Shell.ItemTemplate>
</Shell>

Or use this sample:

https://github.com/pekspro/MauiIssues/tree/FlyoutBehaviorLocked

Version with bug

Release Candidate 2 (current)

Last version that worked well

Release Candidate 1, or maybelast preview.

Affected platforms

Android, Windows, I was not able test on other platforms

Affected platform versions

Windows 10.0.17763.0, Android 10

Did you find any workaround?

No response

Relevant log output

No response

Issue Analytics

  • State:closed
  • Created a year ago
  • Comments:5 (3 by maintainers)

github_iconTop GitHub Comments

1reaction
PureWeencommented, May 4, 2022

@pekspro fix incoming 😃

0reactions
kristinx0211commented, May 5, 2022

verified repro on android 11.
