Android - KeyboardAvoidingView is not behaving properly (Even with SDK 38 and softwareKeyboardLayoutMode: pan)

🐛 Bug Report

Summary of Issue

I am trying to lift a TextInput I have just a tiny bit above the keyboard using KeyboardAvoidingView. On iOS it works just fine, on Android it won’t behave properly, regardless of the behavior prop I pass to it. Changing “softwareKeyboardLayoutMode” to “pan” makes no difference, neither locally nor when building a standalone app. Reproducible in a blank app.

Environment

Expo CLI 3.24.2 environment info: System: OS: Windows 10 10.0.18362 Binaries: Node: 10.15.0 - C:\Program Files\nodejs\node.EXE Yarn: 1.22.4 - C:\Users\Ron Belkin\AppData\Roaming\npm\yarn.CMD npm: 6.14.5 - C:\Program Files\nodejs\npm.CMD IDEs: Android Studio: Version 4.0.0.0 AI-193.6911.18.40.6626763 npmPackages: expo: ^38.0.9 => 38.0.9 react: 16.11.0 => 16.11.0 react-native: https://github.com/expo/react-native/archive/sdk-38.0.2.tar.gz => 0.62.2 react-navigation: ^3.8.1 => 3.13.0

Tested on a Huawei Mate 20 Pro

Reproducible Demo

Create a new app with expo init using the blank template in managed workflow, edit App.js to be:

import React from 'react';
import {KeyboardAvoidingView, StyleSheet, TextInput, View, ScrollView}  from 'react-native';

export default function App() {
  return (
    <View style={styles.container}>
        <KeyboardAvoidingView  keyboardVerticalOffset={20} behavior="padding">
         <TextInput style={{width: 200, height: 50, borderRadius: 10, borderWidth: 1}}/>
        </KeyboardAvoidingView>
    </View>
  );
}

const styles = StyleSheet.create({
  container: {
    flex: 1,
    position: 'relative',
    backgroundColor: '#fff',
    alignItems: 'center',
    justifyContent: 'flex-end',
    paddingBottom: 90
  },
});

The app.json file looks like that:

{
  "expo": {
    "name": "kav-test",
    "slug": "kav-test",
    "version": "1.0.0",
    "orientation": "portrait",
    "icon": "./assets/icon.png",
    "splash": {
      "image": "./assets/splash.png",
      "resizeMode": "contain",
      "backgroundColor": "#ffffff"
    },
    "android": {
      "softwareKeyboardLayoutMode": "pan"
    },
    "updates": {
      "fallbackToCacheTimeout": 0
    },
    "assetBundlePatterns": [
      "**/*"
    ],
    "ios": {
      "supportsTablet": true
    },
    "web": {
      "favicon": "./assets/favicon.png"
    }
  }
}

Steps to Reproduce

Use an Android device. Focus the TextInput on the screen, notice the behavior (explained below).

Expected Behavior vs Actual Behavior

Expected behavior:

Input should be slightly higher than the keyboard

Actual behavior:

When passing no “behavior” prop, input is lifted but still is partially hidden by the keyboard With “padding” behavior, input gains excess padding until I type a character, then it positions itself as expected With “height” behavior, input is indeed lifted properly (when you tweak the keyboardVerticalOffset prop), but when you type a character, it returns to the position of the first case (when behavior is unspecified)

Honestly, with behavior “position” it kinda does what I want in the demo app, but in my app the three last cases behave exactly like the case where behavior is “padding”

The "softwareKeyboardLayoutMode": "pan" makes no difference in this scenario whatsoever.

Is there any workaround I haven’t managed to find?

[TomasSestak]

@TomasSestak in my case, I have solved this “problem” by setting custom styles for android, playing with minHeight (not the best solution but works in most of the cases)

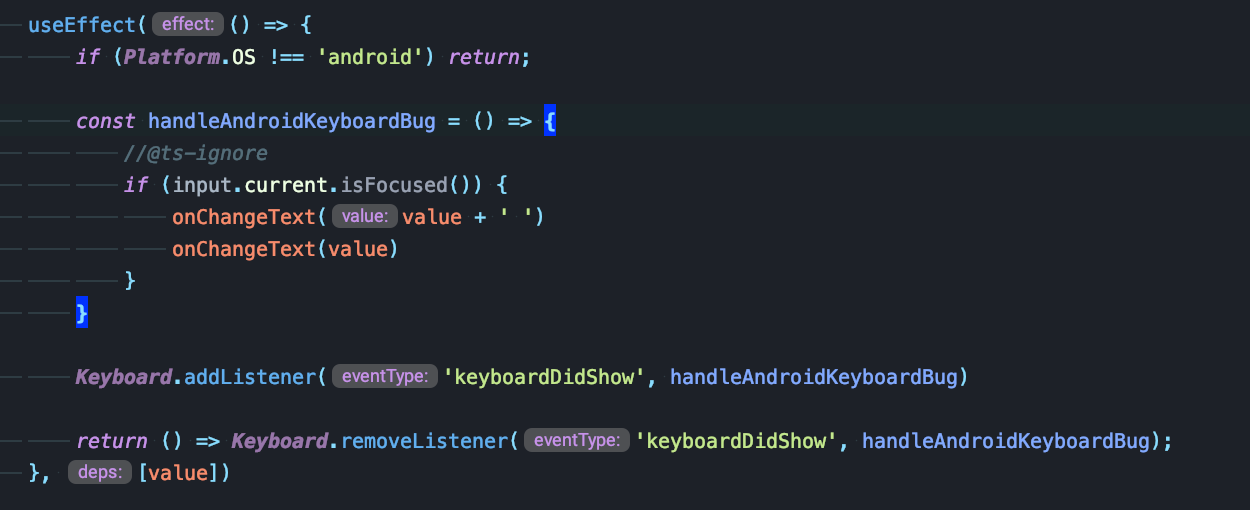

I tried playing with minheight, height values but nothing helped, so i did this:

[samih-sghier]

For anyone wondering - I have solved this issue by simply removing behavior="padding" for KeyboardingAvoidingView on Android 👍 my behavior code looks a little bit like this behavior={Platform.OS === "ios" ? "padding" : "height"}
