Cannot connect to enterprise app on physical iOS device

🐛 Bug Report

Flipper is able to connect to my phone but not my app.

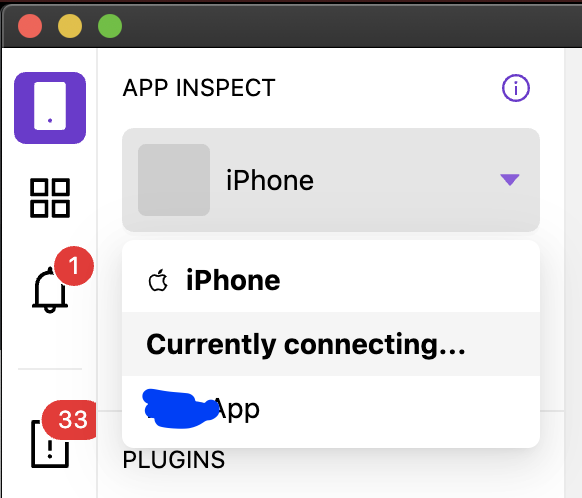

I’m able to select my physical phone on Flipper, but the application is not selected and it seems Flipper cannot connect to it:

It appears idb is getting stuck in a connection loop. This is from Flipper logs:

Connection loop detected with iOS-iPhone-REDACTED. Connected 4 times within 20s. server

Error: Command failed: /Users/REDACTED/.pyenv/shims/idb --log DEBUG file pull --udid d9cc81fc722fc9f027f461c6b763999d034f58f6 --bundle-id REDACTED 'Library/Application Support/sonar/app.csr' '/var/folders/hb/1b2v3tws5d31nh_pqyzv_xlr0000gn/T/tmp-51951-ZHLeoCjZCIPf/app.csr'
2021-02-19 18:51:50,519 [DEBUG] - pull - FSPullCommand command run with: Namespace(log_level='DEBUG', companion=None, companion_path='/usr/local/bin/idb_companion', companion_local=False, prune_dead_companion=True, root_command='file', file='pull', src=BundleWithPath(bundle_id=None, path='Library/Application Support/sonar/app.csr'), dst='/var/folders/hb/1b2v3tws5d31nh_pqyzv_xlr0000gn/T/tmp-51951-ZHLeoCjZCIPf/app.csr', bundle_id='REDACTED', udid='d9cc81fc722fc9f027f461c6b763999d034f58f6', log_level_deprecated=None, json=False)
2021-02-19 18:51:50,519 [DEBUG] - idb - FSPullCommand called
2021-02-19 18:51:50,522 [DEBUG] - idb - pull called
2021-02-19 18:51:50,536 [DEBUG] - hpack.hpack - Adding (b':method', b'POST') to the header table, sensitive:False, huffman:True
2021-02-19 18:51:50,536 [DEBUG] - hpack.hpack - Encoding 3 with 7 bits
2021-02-19 18:51:50,536 [DEBUG] - hpack.hpack - Adding (b':scheme', b'http') to the header table, sensitive:False, huffman:True
2021-02-19 18:51:50,536 [DEBUG] - hpack.hpack - Encoding 6 with 7 bits
2021-02-19 18:51:50,536 [DEBUG] - hpack.hpack - Adding (b':path', b'/idb.CompanionService/pull') to the header table, sensitive:False, huffman:True
2021-02-19 18:51:50,536 [DEBUG] - hpack.hpack - Encoding 4 with 6 bits
2021-02-19 18:51:50,536 [DEBUG] - hpack.hpack - Encoding 19 with 7 bits
2021-02-19 18:51:50,536 [DEBUG] - hpack.hpack - Adding (b':authority', b'localhost:58889') to the header table, sensitive:False, huffman:True
2021-02-19 18:51:50,536 [DEBUG] - hpack.hpack - Encoding 1 with 6 bits
2021-02-19 18:51:50,536 [DEBUG] - hpack.hpack - Encoding 11 with 7 bits
2021-02-19 18:51:50,536 [DEBUG] - hpack.hpack - Adding (b'te', b'trailers') to the header table, sensitive:False, huffman:True
2021-02-19 18:51:50,536 [DEBUG] - hpack.hpack - Encoding 2 with 7 bits
2021-02-19 18:51:50,536 [DEBUG] - hpack.hpack - Encoding 6 with 7 bits
2021-02-19 18:51:50,537 [DEBUG] - hpack.hpack - Adding (b'content-type', b'application/grpc') to the header table, sensitive:False, huffman:True
2021-02-19 18:51:50,537 [DEBUG] - hpack.hpack - Encoding 31 with 6 bits
2021-02-19 18:51:50,537 [DEBUG] - hpack.hpack - Encoding 11 with 7 bits
2021-02-19 18:51:50,537 [DEBUG] - hpack.hpack - Adding (b'user-agent', b'grpc-python-grpclib/0.4.1 (darwin; cpython/3.9.1)') to the header table, sensitive:False, huffman:True
2021-02-19 18:51:50,537 [DEBUG] - hpack.hpack - Encoding 58 with 6 bits
2021-02-19 18:51:50,537 [DEBUG] - hpack.hpack - Encoding 37 with 7 bits
2021-02-19 18:51:50,537 [DEBUG] - hpack.hpack - Encoded header block to b'\x83\x86D\x93`\xd2F\xbd\xe3\xd3X\xea1\xea\xdc[;\x98\x85b\xbbh\xa3A\x8b\xa0\xe4\x1d\x13\x9d\t\xb8\xdb\xcf<\xff@\x82I\x7f\x86M\x835\x05\xb1\x1f_\x8b\x1du\xd0b\r&=LMedz\xa5\x9a\xca\xc8\xb5~\x939\xeaZk+%\x06\x8d\x80.\xd2\xe1S\xfa\x90vx5_j\x12\xbfI\x9c\xf50\xca\xef\xae\x1f\xef'
2021-02-19 18:51:50,712 [DEBUG] - hpack.hpack - Decoding b'\x88@\x0ccontent-type\x10application/grpc@\x0bgrpc-status\x0213@\x0cgrpc-message\x7f.Bundle Name: REDACTED Staging (Debug) | ID: REDACTED | Install Type user_enterprise | Container (null) is not signed for development, file operations are not possible'
2021-02-19 18:51:50,712 [DEBUG] - hpack.hpack - Decoded 8, consumed 1 bytes
2021-02-19 18:51:50,712 [DEBUG] - hpack.hpack - Decoded (b':status', b'200'), consumed 1
2021-02-19 18:51:50,712 [DEBUG] - hpack.hpack - Decoded 12, consumed 1 bytes
2021-02-19 18:51:50,712 [DEBUG] - hpack.hpack - Decoded 16, consumed 1 bytes
2021-02-19 18:51:50,712 [DEBUG] - hpack.hpack - Decoded (<memory at 0x10e30d340>, <memory at 0x10e30d640>), total consumed 31 bytes, indexed True
2021-02-19 18:51:50,712 [DEBUG] - hpack.hpack - Decoded 11, consumed 1 bytes
2021-02-19 18:51:50,713 [DEBUG] - hpack.hpack - Decoded 2, consumed 1 bytes
2021-02-19 18:51:50,713 [DEBUG] - hpack.hpack - Decoded (<memory at 0x10e30d7c0>, <memory at 0x10e30d700>), total consumed 16 bytes, indexed True
2021-02-19 18:51:50,713 [DEBUG] - hpack.hpack - Decoded 12, consumed 1 bytes
2021-02-19 18:51:50,713 [DEBUG] - hpack.hpack - Decoded 173, consumed 2 bytes
2021-02-19 18:51:50,713 [DEBUG] - hpack.hpack - Decoded (<memory at 0x10e30d940>, <memory at 0x10e30d880>), total consumed 189 bytes, indexed True
2021-02-19 18:51:50,714 [DEBUG] - idb - pull failed
2021-02-19 18:51:50,714 [DEBUG] - idb - FSPullCommand failed
Bundle Name: REDACTED Staging (Debug) | ID: REDACTED | Install Type user_enterprise | Container (null) is not signed for development, file operations are not possible

    at ChildProcess.exithandler (child_process.js:312:12)
    at ChildProcess.emit (events.js:315:20)
    at maybeClose (internal/child_process.js:1021:16)
    at Process.ChildProcess._handle.onexit (internal/child_process.js:286:5)

Connection to 'REDACTEDApp' on 'iPhone' failed Failed to start client connection
Error: A problem with idb has ocurred. Please run `sudo rm -rf /tmp/idb*` and `sudo yum install -y fb-idb` to update it, if that doesn't fix it, post in Flipper Support.

To Reproduce

• Install Flipper 0.76.0
• Install idb: brew tap facebook/fb, brew install idb-companion, pip3.6 install fb-idb according to https://github.com/facebook/idb/#quick-start
• Build app and install to phone via XCode
• Check logs on Flipper

Environment

Flipper 0.76.0 iPhone 6s Plus, iOS 14.2 React Native 0.63.4

[ma125125t]

@jknoxville are you sure flipper support physical iOS device?The document says it doesn’t.Would you show us how to support it?

[jknoxville]

Hi @sypl I think the issue here is Bundle Name: REDACTED Staging (Debug) | ID: REDACTED | Install Type user_enterprise | Container (null) is not signed for development, file operations are not possible

On physical iOS devices, Flipper only supports development builds out of the box, not enterprise-signed ones.

@priteshrnandgaonkar made it possible to use with enterprise builds last year, but in order to do this, it requires some integration. In particular you have to define your own FlipperKitCertificateProvider and then provide it to the Flipper Client here or in the FlipperClient constructor.

Flipper will attempt to upload certificates for the current usere here, so you’d need to override that function to store them somewhere.

Then your FlipperKitCertificateProvider would be responsible for obtaining those certs and giving them to the Flipper Client.

The reason this is all necessary is because writing to the file system is not permitted in enterprise builds, so we need an alternate mechanism to transfer them from flipper desktop to the mobile app.
