Advanced Custom Fields - Type "User" not retrieved properly in gatsby-source-wordpress

Preliminary Checks

• This issue is not a duplicate. Before opening a new issue, please search existing issues: https://github.com/gatsbyjs/gatsby/issues
• This issue is not a question, feature request, RFC, or anything other than a bug report directly related to Gatsby. Please post those things in GitHub Discussions: https://github.com/gatsbyjs/gatsby/discussions

Description

The issues happened when I use the Advanced Custom Fields (ACF) with GraphQL in wordpress.

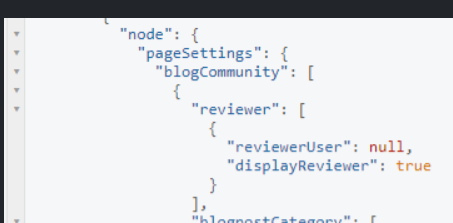

If the ACF Fields type is USER, it is able to retrieve in the GraphQL in wordpress as the screenshot shown below.

However, when it reach to gatsby source, the graphql cannot get the value of the user.

This issue only occurred whenever the ACF field type is USER. If the field type is other (eg.: Text), the data can be retrieved correctly.

Reproduction Link

can’t share the repo sorry

Steps to Reproduce

1. Install plugins in wordpress and set up wordpress as source with gatsby-source-wordpress
2. Create a new field group on pages with ACF and add a “User” field with type “USER” that links to a page
3. Run http://localhost:8000/__graphql in the fresh Gastby site and run the query for the user field.

Expected Result

The user field is correctly reflected in the gatsby-source-wordpress GraphQL like the Wordpress GraphqQL.

Actual Result

The user field returns null in the gatsby-source-wordpress GraphQL

Environment

System:
    OS: Windows 10 10.0.19043
    CPU: (12) x64 Intel(R) Core(TM) i7-8750H CPU @ 2.20GHz
  Binaries:
    Node: 14.17.1 - C:\Program Files\nodejs\node.EXE
    npm: 7.19.0 - C:\Program Files\nodejs\npm.CMD
  Browsers:
    Chrome: 94.0.4606.81
    Edge: Spartan (44.19041.1266.0), Chromium (94.0.992.50)
  npmPackages:
    gatsby: ^3.7.0 => 3.9.1
    gatsby-awesome-pagination: ^0.3.8 => 0.3.8
    gatsby-plugin-advanced-sitemap: ^2.0.0 => 2.0.0
    gatsby-plugin-emotion: ^6.9.0 => 6.9.0
    gatsby-plugin-google-tagmanager: ^3.12.0 => 3.12.0
    gatsby-plugin-image: ^1.12.0 => 1.12.0
    gatsby-plugin-layout: ^2.7.0 => 2.9.0
    gatsby-plugin-postcss: ^4.9.0 => 4.9.0
    gatsby-plugin-react-helmet: ^4.12.0 => 4.12.0
    gatsby-plugin-robots-txt: ^1.6.10 => 1.6.10
    gatsby-plugin-sharp: ^3.12.0 => 3.12.0
    gatsby-source-graphql: ^3.9.0 => 3.9.0
    gatsby-source-shopify: ^4.7.0 => 4.7.1
    gatsby-source-wordpress: ^5.7.0 => 5.9.1
    gatsby-transformer-sharp: ^3.12.0 => 3.12.0
  npmGlobalPackages:
    gatsby-cli: 3.13.0

Config Flags

No response

[chieyang96]

@awelles sorry for the late reply but I’ve used the solution provided and it seems working as what I wish for. Thanks a lot!

[awelles]

@chieyang96 have a look here. When querying from gatsby you’re unauthorized w/ wordpress and so lack the ‘list_users’ capability. This blocks the user’s from showing. You can add PHP to your wordpress install to bypass this:

https://www.wpgraphql.com/recipes/make-all-users-public/

Side note: WPGraphql allows you to see Users when unauthorized, just not ACF User fields. Which doesn’t seem quite right… Something to bring up with ‘WPGraphQl for ACF’ devs perhaps.
