React 18: Hydration Issue caused by Indicator/ShadowPortal component

Preliminary Checks

• This issue is not a duplicate. Before opening a new issue, please search existing issues: https://github.com/gatsbyjs/gatsby/issues
• This issue is not a question, feature request, RFC, or anything other than a bug report directly related to Gatsby. Please post those things in GitHub Discussions: https://github.com/gatsbyjs/gatsby/discussions

Description

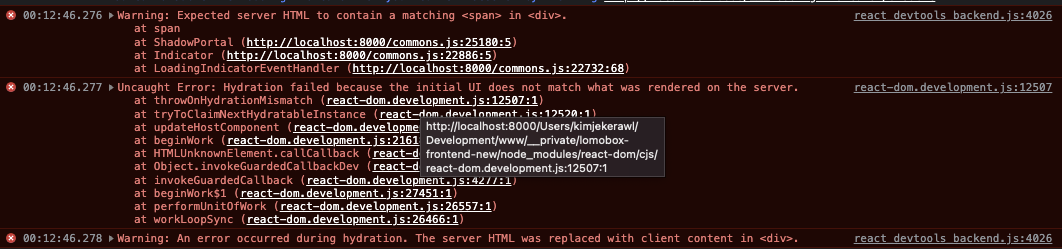

When running Gatsby with React 18 (Concurrent mode) and onRecoverableError callback provided to react’s hydrateRoot/createRoot functions, I get a Error: Hydration failed because the initial UI does not match what was rendered on the server error.

The cause of this error seems to be the Indicator resp. ShadowPortal component of gatsby (included from .cache/shadow-portal.js / .cache/indicator.js), as ShadowPortal renders a span element and Indicator then renders div elements inside that span, which is invalid.

The error occurs always in develop mode, and sometimes even in production builds.

If I disable the loading indicator (via http://localhost:8000/___loading-indicator/disable), the error doesn’t occur anymore.

Reproduction Link

https://github.com/kije/gatsby-bugreport-hydration-error-shadow-portal-indicator

Steps to Reproduce

1. Checkout reprodution repo
2. Start gatsby with npm run develop

Expected Result

The hydration error described above does not occur

Actual Result

Hydration error described above occurs

Environment

System:
    OS: macOS 12.3.1
    CPU: (16) x64 Intel(R) Core(TM) i9-9980HK CPU @ 2.40GHz
    Shell: 5.8 - /bin/zsh
  Binaries:
    Node: 18.4.0 - ~/.nvm/versions/node/v18.4.0/bin/node
    Yarn: 1.22.19 - /usr/local/bin/yarn
    npm: 8.13.0 - ~/.nvm/versions/node/v18.4.0/bin/npm
  Languages:
    Python: 2.7.18 - /Library/Frameworks/Python.framework/Versions/2.7/bin/python
  Browsers:
    Chrome: 103.0.5060.53
    Firefox: 102.0
  npmPackages:
    gatsby: ^4.17.2 => 4.17.2
    gatsby-alias-imports: ^1.0.6 => 1.0.6
    gatsby-parcel-config: file:./.gatsby/fixed-packages/gatsby-parcel-config => 0.9.0
    gatsby-plugin-bundle-stats: ^3.3.10 => 3.3.10
    gatsby-plugin-image: ^2.17.0 => 2.17.0
    gatsby-plugin-layout: ^3.17.0 => 3.17.0
    gatsby-plugin-lodash: ^5.17.0 => 5.17.0
    gatsby-plugin-lomobox-file-downloader: file:./plugins/file-downloader => 1.0.0-rev4
    gatsby-plugin-next-seo: ^1.10.0 => 1.10.0
    gatsby-plugin-nprogress: ^4.17.0 => 4.17.0
    gatsby-plugin-offline-next: ^5.2.3 => 5.2.3
    gatsby-plugin-optimize-svgs: ^1.0.5 => 1.0.5
    gatsby-plugin-persist-cache: ^0.0.2 => 0.0.2
    gatsby-plugin-postcss: ^5.17.0 => 5.17.0
    gatsby-plugin-preconnect: ^1.3.0 => 1.3.0
    gatsby-plugin-purgecss: ^6.1.2 => 6.1.2
    gatsby-plugin-react-i18next: ^1.2.2 => 1.2.2
    gatsby-plugin-react-svg: ^3.1.0 => 3.1.0
    gatsby-plugin-realfavicongenerator: ^0.1.2 => 0.1.2
    gatsby-plugin-robots-txt: ^1.7.1 => 1.7.1
    gatsby-plugin-sharp: file:./plugins/shared/gatsby-plugin-sharp => 4.4.0-rev11
    gatsby-plugin-sitemap: ^5.17.0 => 5.17.0
    gatsby-plugin-split-css: ^2.0.2 => 2.0.2
    gatsby-plugin-styled-components: ^5.17.0 => 5.17.0
    gatsby-plugin-ts-checker: ^1.1.0 => 1.1.0
    gatsby-plugin-typegen: ^3.0.0 => 3.0.0
    gatsby-plugin-webfonts: ^2.2.2 => 2.2.2
    gatsby-plugin-webpack-bundle-analyser-v2: ^1.1.27 => 1.1.27
    gatsby-source-craft: https://github.com/kije/gatsby-source-craft.git#gatsby-v4-patched => 3.0.1
    gatsby-source-filesystem: ^4.17.0 => 4.17.0
    gatsby-source-iubenda-documents: ^2.1.0 => 2.1.0
    gatsby-transformer-remark: ^5.17.0 => 5.17.0
    gatsby-transformer-sharp: ^4.17.0 => 4.17.0
    gatsby-transformer-sqip: file:./plugins/shared/gatsby-transformer-sqip => 4.4.0-rev27
  npmGlobalPackages:
    gatsby-cli: 4.17.1

Config Flags

No response

[tyhopp]

Hi @kije, thanks for the description and reproduction.

I tested these six scenarios with the latest Gatsby version (gatsby@4.18.0):

Not using replaceHydrateFunction (unchanged minimal starter):

• Dev - No error
• Dev + DEV_SSR - Hydration error
• Prod (via gatsby serve) - No error

Using replaceHydrateFunction from reproduction:

• Dev - Hydration error
• Dev + DEV_SSR - Hydration error
• Prod (via gatsby serve) - No error

It makes sense that prod doesn’t have this issue since the related code isn’t used in prod but I included anyway it since it was mentioned.

So breaking it down there are two things to fix/improve:

• Fix hydration error when using DEV_SSR
• Update replaceHydrationFunction docs with an example that works in React 18 https://www.gatsbyjs.com/docs/reference/config-files/gatsby-browser/#replaceHydrateFunction

The second point should help shed light on why the replaceHydrationFunction usage in @kije’s reproduction repo has the error too.

[jonsadka]

Thanks for the fix @pieh!
