[Bug] GitVersion.MsBuild should not have 'runtime' listed in the IncludeAssets property

Describe the bug When adding a nuget reference to GitVersion.MsBuild from Visual Studio in a Sdk-style project, we end up with this declaration:

<PackageReference Include="GitVersion.MsBuild" Version="5.6.4">
  <PrivateAssets>all</PrivateAssets>
  <IncludeAssets>runtime; build; native; contentfiles; analyzers; buildtransitive</IncludeAssets>
</PackageReference>

Expected Behavior

The package should be restored like below (and maybe other assets need not be included…):

<PackageReference Include="GitVersion.MsBuild" Version="5.6.4">
  <PrivateAssets>all</PrivateAssets>
  <IncludeAssets>build; native; contentfiles; analyzers; buildtransitive</IncludeAssets>
</PackageReference>

Actual Behavior

Having ‘runtime’ part of the included assets has some implications:

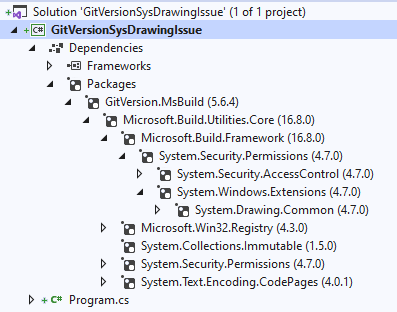

• trough its dependency tree, GitVersion.MsBuild depends on System.Drawing.Common:

• This dependency (and others) end up in the build output and are listed in the deps.json file.

• This is already not that clean, but then I have other issues when trying to run the application in docker:

• I publish the application as framework-dependent and multi-platform and then build my Docker image

• The application inside the Docker does not work and tells me it can’t find System.Drawing.Common:

Step 12/14 : RUN ./GitVersionSysDrawingIssue
 ---> Running in 1f86a3a65590
Error:
  An assembly specified in the application dependencies manifest (GitVersionSysDrawingIssue.deps.json) was not found:
    package: 'System.Drawing.Common', version: '4.7.0'
    path: 'runtimes/unix/lib/netcoreapp3.0/System.Drawing.Common.dll'
The command '/bin/sh -c ./GitVersionSysDrawingIssue' returned a non-zero code: 140

If the package were to be restored like above (without the ‘runtime’ in the included assets), then this issue disappears (as there is not any more a dependency on System.Drawing.Common.dll)

Possible Fix

Steps to Reproduce

This behavior can be reproduced with this repository: https://github.com/odalet/GitVersionSysDrawingIssue

• Clone it on a Linux (or WSL) machine:

git clone https://github.com/odalet/GitVersionSysDrawingIssue.git
cd GitVersionSysDrawingIssue

• Build/publish:

dotnet publish GitVersionSysDrawingIssue/GitVersionSysDrawingIssue.csproj --configuration Release -o out/

• Build the docker image

docker build .

The build shoudl fail at step 12 when attempting to run the app in the container.

Then,

• Edit GitVersionSysDrawingIssue.csproj and remove ‘runtime’ from <IncludeAssets> and repeat publish then docker build.

Context

Trying to run an app that uses GitVersion.MsBuild in a linux Docker.

Your Environment

• .NET Core 3.1 app
• Visual Studio 2019 v16.8.3
• Windows 10 20H2, Debian 10 WSL (to build the docker image), Docker image: mcr.microsoft.com/dotnet/runtime:3.1
• Repro Repository:< https://github.com/odalet/GitVersionSysDrawingIssue>

[arturcic]

@odalet thanks for the information, closing

[odalet]

Here is my message in a bottle: https://github.com/NuGet/Home/issues/10512
