There's a space between content and keyboard when using imePadding

See original GitHub issue

Describe the bug

There’s a space between content and keyboard when using imePadding and navigationBarsWithImePadding

To Reproduce

Steps to reproduce the behavior:

When TextField is full I hid the keyboard
When pressed again it pushed the TextField up, but the there’s a weird space between them

Screenshots?

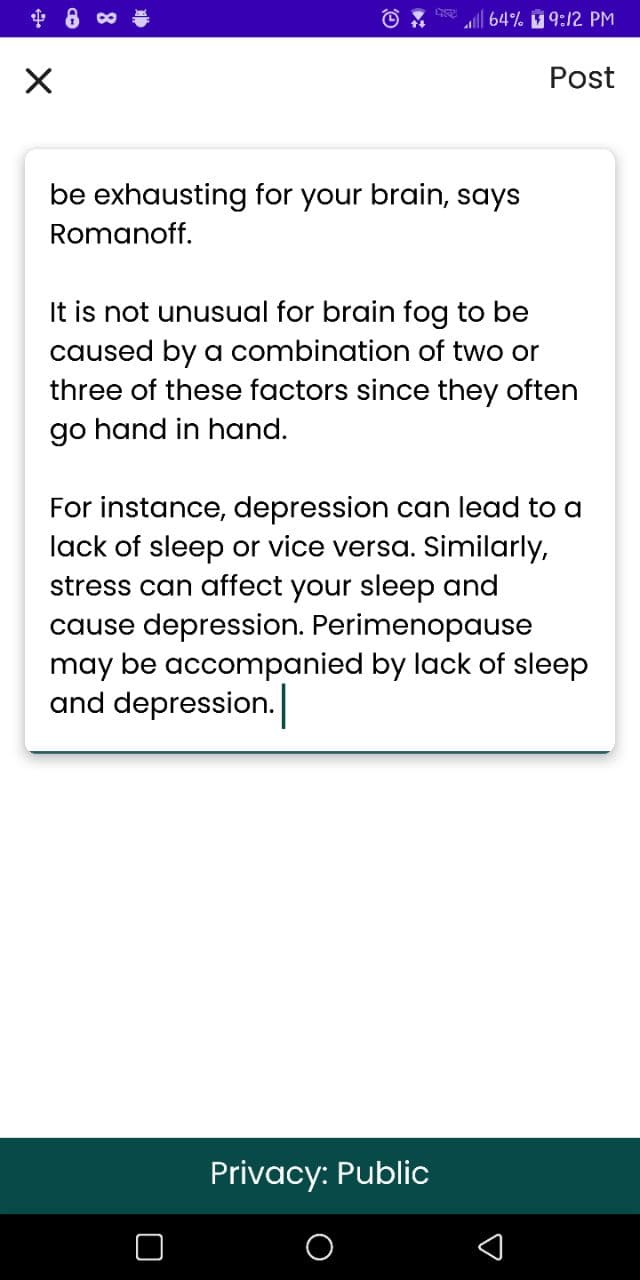

My TextField is wrapContentHeight and this is when i paste a long text

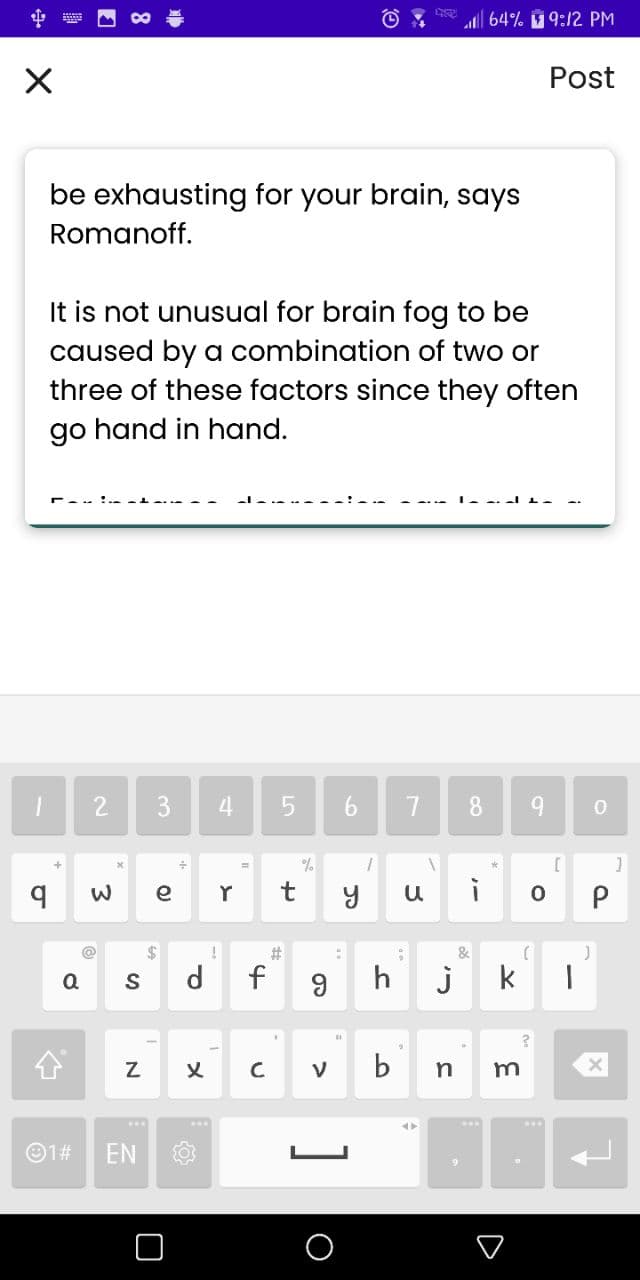

When i pressed back:

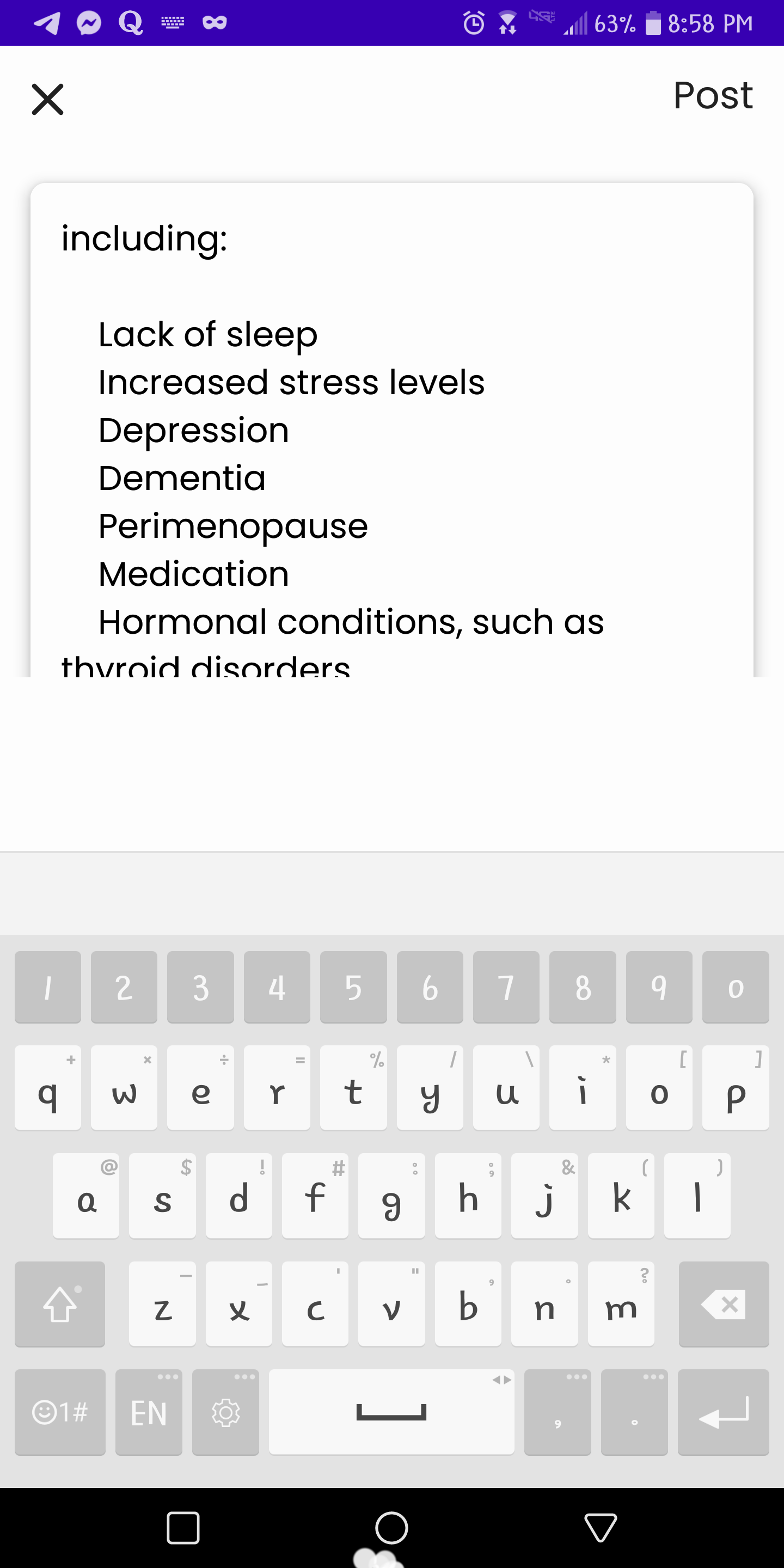

Pressed on TextField again:

Environment:

Android OS version: [Android 8.0.0]
Device: [LG V30 and Emulator Pixel 4XL]
Accompanist version: [v0.15.0]

On this screen i have bottomSheetLayout and bottomBar. It worked fine in another screen, but i couldn’t find sth wrong it my code tho.

Issue Analytics

State:
Created 2 years ago
Comments:7 (4 by maintainers)

Top GitHub Comments

1reaction

alexvanyocommented, Feb 3, 2022

Thanks for the simple example! This is expected, but as you pointed out somewhat confusing behavior.

How insets are combined is in a maxOf sense, rather than a strict additive sense.

So putting some numbers to it: Let’s say the navigation bar inset is 20 pixels from the bottom of the screen, and the top of the IME is 100 pixels from the bottom of the screen.

Then navigationBarPadding() will have a bottom value of 20 pixels, and imePadding() will have the bottom value of 100 pixels. If both are applied, then the total padding will be 120 pixels, but this is 20 pixels too high: the top of the IME is only 100 pixels from the bottom of the screen.

navigationBarsWithImePadding() “combines” these two types of insets, but it doesn’t do so just by adding them. Instead it takes the max of each. So the bottom padding of navigationBarsWithImePadding will be just 100 pixels.

If you wanted to split up the paddings, you will have to do that subtraction calculation yourself with the current accompanist APIs, since there isn’t communication from the parent to the child saying “I’ve already handled this portion of the insets”.

That communication is currently being experimented with insets support in androidx.compose, which would allow both approaches to work as you’d expect.

0reactions

svenjacobscommented, Feb 3, 2022

Thanks Alex for this detailed explanation. I know understand why Accompanist insets work that way 👍🏼
