Fix font problems in Idea Hub widget
See original GitHub issueBug Description
There are two problems with the title of the Idea Hub widget, one pointed out in https://github.com/google/site-kit-wp/issues/3810#issuecomment-916170914. In addition, the title font here is Google Sans
, which was like that in the original Figma file, but this should actually use Roboto
like we do elsewhere.
Do not alter or remove anything below. The following sections will be managed by moderators only.
Acceptance criteria
- Both the Idea Hub widget title and the experimental label (in general, not only for the Idea Hub widget) should use our regular Roboto font instead of Google Sans.
- When the experimental label breaks into a new line, it shouldn’t appear as if it was indented.
Implementation Brief
- Inside
assets/js/modules/idea-hub/components/dashboard/DashboardIdeasWidget/index.js
:- Add the class
.googlesitekit-subheading-1
to theh3.googlesitekit-idea-hub__title
. This will change the font-family to Roboto. - Wrap the text inside
h3.googlesitekit-idea-hub__title
in a<span>
, with a className such as.googlesitekit-idea-hub__title-text
. - In other words the
h3
should now have two children: the newspan
and the<Badge>
.
- Add the class
Inside assets/sass/components/global/_googlesitekit-badge.scss
:
- Remove the margin from
.googlesitekit-badge
. This margin is the reason for the indentation.
Inside assets/sass/components/idea-hub/_googlesitekit-idea-hub-dashboard-ideas-widget.scss
:
- Increase the
line-height
of.googlesitekit-idea-hub__title
to1.5
. This will create a bit more space between the lines when the badge wraps. - Create a new rule for the new
span.googlesitekit-idea-hub__title-text
, and give it apadding-right
of12px
. This will create the space that the margin on the badge provided, but will not indent the badge when it wraps.
Test Coverage
- No new tests required.
Visual Regression Changes
- Images dealing with the Idea Hub dashboard widget might need updating.
QA Brief
- Verify that the ACs above have been met
Changelog entry
- Fix font problems in the Idea Hub widget.
Issue Analytics
- State:
- Created 2 years ago
- Comments:8 (3 by maintainers)
Top Results From Across the Web
SDK widgets too small for font - SDK - jMonkeyEngine Hub
I've just installed jmomkeyplatform on Debian Linux with GNOME 3 and there's a problem with the SDK's GUI. Most of the widgets are...
Read more >Modules / Idea Hub / Setup - Setup form ⋅ Storybook - Google
I agree that Idea Hub will track my usage of the feature (e.g. creating a draft; saving/dismissing ideas) in order to provide better...
Read more >Performance Analytics widgets
Widgets enable you to define visualizations for indicator scores. ... Analytics Hub for a specific indicator ... Resolve intent issues.
Read more >Rich Text Widget Not Saving Content - HubSpot Community
Solved: Our blog template has a rich text module. The template has been around for a long time and everything was working fine....
Read more >Working with code problems in IntelliJ IDEA - The JetBrains Blog
Click on the Inspections widget in the editor or use the Ctrl/Cmd+6 shortcut to open it. The Current File tab shows the list...
Read more >
Top Related Medium Post
No results found
Top Related StackOverflow Question
No results found
Troubleshoot Live Code
Lightrun enables developers to add logs, metrics and snapshots to live code - no restarts or redeploys required.
Start Free
Top Related Reddit Thread
No results found
Top Related Hackernoon Post
No results found
Top Related Tweet
No results found
Top Related Dev.to Post
No results found
Top Related Hashnode Post
No results found
@felixarntz disregard, sorry. It’s in the ACs 🤦
QA Update: ✅
Verified:

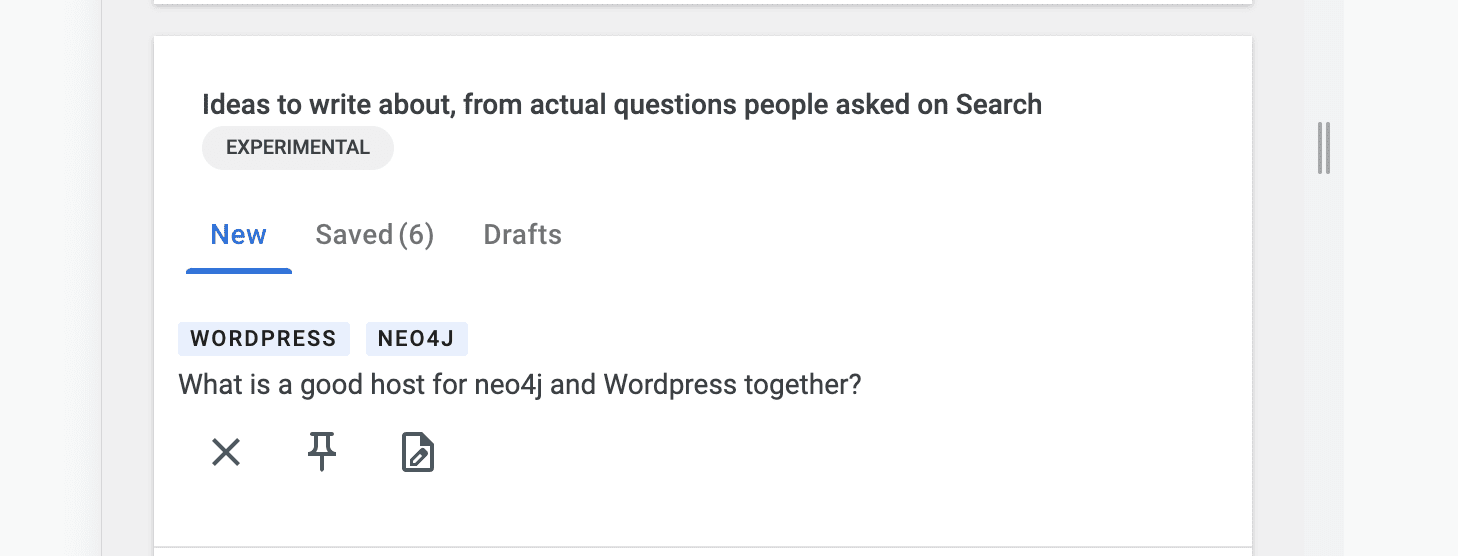

Both the Idea Hub widget title and the experimental label should use our regular Roboto font instead of Google Sans. – Screenshot 1 - Screenshot 2

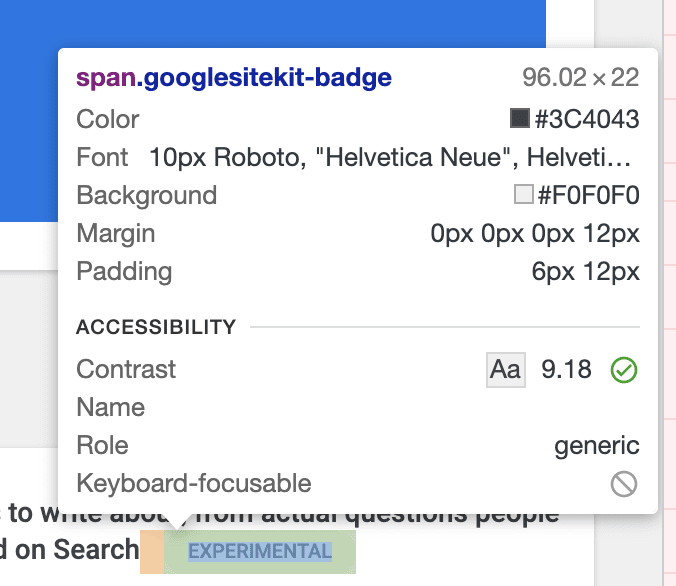

When the experimental label breaks into a new line, it shouldn’t appear as if it was indented. - Screenshot
The issue reported here is fixed.
