Google.Cloud.Logging.Nlog - Log correlation with traces

Hi!

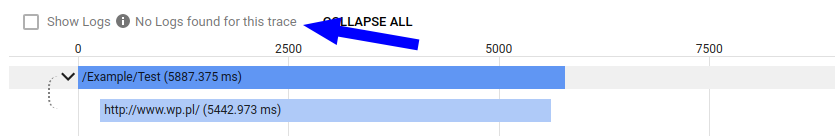

Is your feature request related to a problem? Please describe. I can’t correlate stackdriver logs in the tracing panel inside the google console.

I think that’s because of the lack of fields like trace, traceId mentioned here https://cloud.google.com/logging/docs/reference/v2/rest/v2/LogEntry

I tried to find in code place where LogEntry is filled and eg. field trace exist, but it’s skipped at GoogleStackdriverTarget during object creation.

var logEntry = new LogEntry { Severity = s_levelMap[loggingEvent.Level], Timestamp = ConvertToTimestamp(loggingEvent.TimeStamp), LogName = _logName, Resource = _resource, }; And at other places, algorithm flow fills labels, resources section, and nothing else.

Describe the solution you’d like Giving the possibility to fill LogEntry fields required for tracing.

If it’s possible to then sorry for asking. However, in this case, documentation should be updated.

[amanda-tarafa]

This has been released in Google.Cloud.Logging.NLog v3.3.0. Thanks @orchowski for the request and @snakefoot for the work!

[danielwinkler]

@snakefoot Thanks for the idea, I implemented your recommendation but have some suggestions for future reference:

• we need an offset already for the trace id extraction as the extracted value includes the header name
• instead of layout we should use value in the variable definition

<variable name="cloud-trace-header" value="${aspnet-request-headers:headerNames=X-Cloud-Trace-Context}" />
<variable name="cloud-trace-traceid" value="${substring:inner=${cloud-trace-header}:start=22:length=32}" />
<variable name="cloud-trace-spanid" value="${substring:inner=${cloud-trace-header}:start=55:length=16}" />

@amanda-tarafa Thank you for all your support around here. I just wanted to add that it was really hard for me to wire everything together. It would be nice if there would be a bit more documentation on how to connect google logging and tracing, e.g. on the google nlog package some information on how to use the google tracing header.
