When printing a DataGrid control, it does not show any data. (PrintDialog.PrintVisual)

See original GitHub issue

Describe the bug When printing a DataGrid control, it does not show any data.

To Reproduce Steps to reproduce the behavior:

  1. Create a new XAML user control (MyPrintPageView)
<DataGrid
    AutoGenerateColumns="True"
    ItemsSource="{Binding OtherMovementsList}"
    HorizontalAlignment="Left"/>
  1. Print the view:
PrintDialog printDialog = new PrintDialog();

var print = new MyPrintPageView();
print.DataContext = new MyViewModel();
printDialog.PrintVisual(print, "Printing bug!");
  1. Execute the app and save the printing as PDF (or print it with an actual printer if you have ink to spare). The DataGrid will show but the content will be empty:

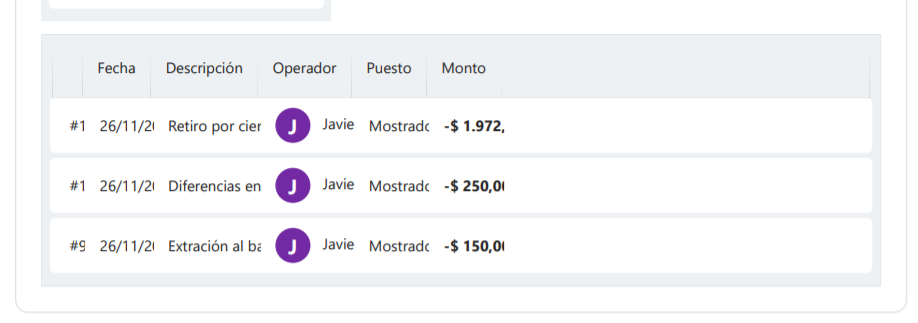

Below is a ListView with a GridView as view for comparison: (it renders correctly)

<ListView
    ItemsSource="{Binding OtherMovementsList}"
    HorizontalAlignment="Left">
    <ListView.View>
        <GridView>
            <!-- columns here -->
        </GridView>
    </ListView.View>
</ListView>

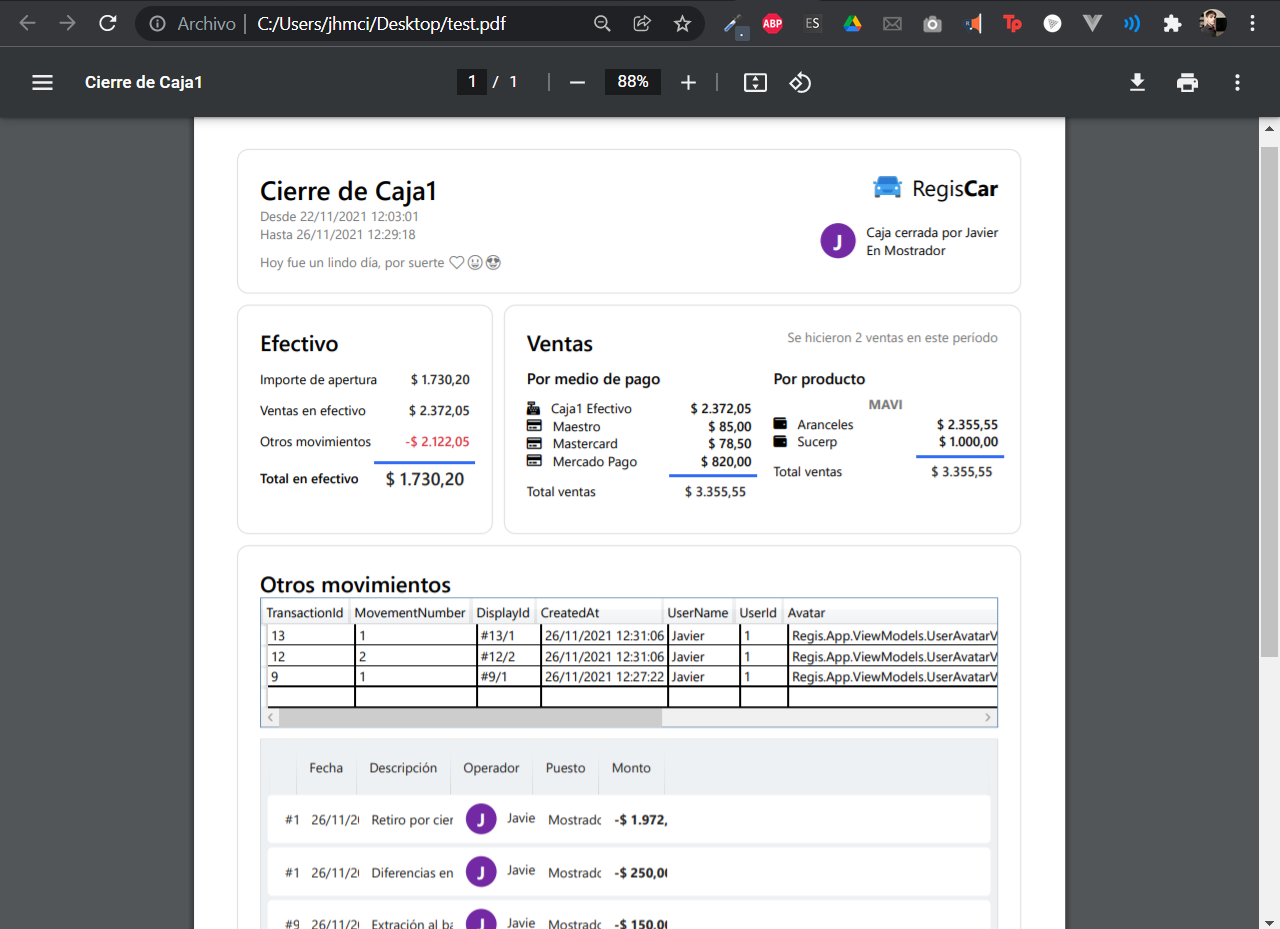

Also, here is a comparison for a regular DataGrid with his style set to null. (Style={x:Null}). It renders correctly, but it looks awful.

<DataGrid
    AutoGenerateColumns="True"
    Style="{x:Null}"
    ItemsSource="{Binding OtherMovementsList}"
    HorizontalAlignment="Left"/>


Expected behavior The data grid should render it’s content

Environment (please complete the following information):

  • .net: Net 5
  • IDE VS2019
  • Version: HandyControls v3.3.7

Issue Analytics

  • State:closed
  • Created 2 years ago
  • Comments:7 (3 by maintainers)

github_iconTop GitHub Comments

1reaction
ghost1372commented, Dec 4, 2021

@jhm-ciberman I close it, if there is a problem, open it again

1reaction
NaBiancommented, Dec 3, 2021

the latest code seems to be working fine
