Danfoss Icon

Hi @Koenkk,

So I picked up the integration of the danfoss icon. However I have some question. (Possibly noob questions, I am no JS dev.)

So I started up creating the external-converter, based on the danfoss Ally integration, although I started to make extra converters, since the Ally and Icon Attr. are somewhat different. It turned out to be a bit trickier.

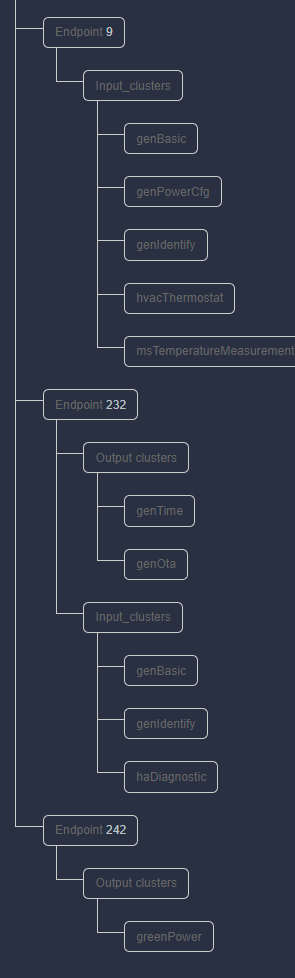

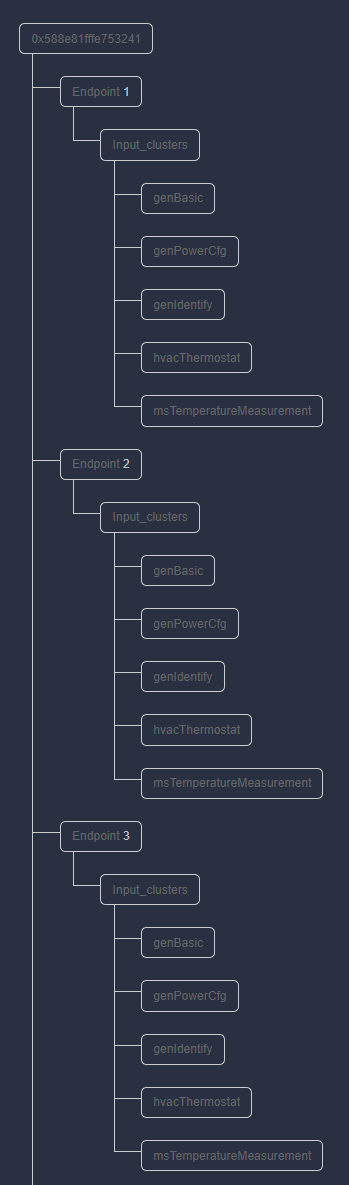

The danfoss zigbee module exposes all thermostat as a different endpoint, plus endpoint for the Zigbee Module.

I tried read the endpoint with the loop however only the first endpoint is visible.

EDITED(21-10-2021):

 {
const exposes = require('../lib/exposes');
const fz = {...require('../converters/fromZigbee'), legacy: require('../lib/legacy').fromZigbee};
const tz = require('../converters/toZigbee');
const ota = require('../lib/ota');
const constants = require('../lib/constants');
const reporting = require('../lib/reporting');
const e = exposes.presets;
const ea = exposes.access;

module.exports = [
    {
        // Danfoss Icon Floor heating thermostats
        fingerprint: [{modelID: '0x8030', manufacturerName: 'Danfoss'}],
        model: 'Icon',
        vendor: 'Danfoss',
        description: 'Danfoss icon floor heating (Regulator, Zigbee module & Thermostats)',
        fromZigbee: [
            fz.danfoss_thermostat,
            fz.danfoss_icon_battery,
            fz.thermostat,
            fz.thermostat_weekly_schedule],
        toZigbee: [
            tz.thermostat_local_temperature,
            tz.thermostat_occupied_heating_setpoint,
            tz.thermostat_unoccupied_heating_setpoint,
            tz.thermostat_system_mode,
            tz.thermostat_control_sequence_of_operation,
            tz.thermostat_min_heat_setpoint_limit,
            tz.thermostat_max_heat_setpoint_limit,
            tz.thermostat_programing_oper_mode,
            tz.danfoss_output_status,
            tz.danfoss_room_status_code,
            tz.danfoss_floor_min_setpoint,
            tz.danfoss_floor_max_setpoint,
            tz.danfoss_preheat,
            tz.danfoss_schedule_type_used,
            tz.thermostat_weekly_schedule,
            tz.thermostat_clear_weekly_schedule
        ],
        meta: {multiEndpoint: true},
        endpoint: (device) => {
            return {
                'thermostat_1': 1, 'thermostat_2': 2, 'thermostat_3': 3, 'thermostat_4': 4, 'thermostat_5': 5,
                'thermostat_6': 6, 'thermostat_7': 7, 'thermostat_8': 8, 'thermostat_9': 9, 'thermostat_10': 10,
                'thermostat_11': 11, 'thermostat_12': 12, 'thermostat_13': 13, 'thermostat_14': 14, 'thermostat_15': 15
            };
        },
        ota: ota.zigbeeOTA,
        exposes:[
            e.action(['weekly_schedule', 'clear_weekly_schedule']).withEndpoint('thermostat_1'),
            // exposes.enum('programing_oper_mode', ea.STATE).withDescription('simple setpoint or schedule')
        ]
            .concat(((endpointsCount) => {

            const features = [];
            for (let i = 1; i <= endpointsCount; i++) {
                const epName = `thermostat_${i}`;
                features.push(e.battery().withEndpoint(epName));
                features.push(exposes.climate().withSetpoint('occupied_heating_setpoint', 4, 30, 0.5)
                    .withLocalTemperature().withSystemMode(['heat']).withEndpoint(epName));
                features.push(exposes.numeric('unoccupied_heating_setpoint', ea.ALL)
                    .withValueMin(4).withValueMax(30).withValueStep(0.5).withUnit('°C')
                    .withEndpoint(epName).withDescription('Unoccupied heating setpoint'));
                features.push(exposes.numeric('abs_min_heat_setpoint_limit', ea.ALL)
                    .withUnit('°C').withEndpoint(epName)
                    .withDescription('Absolute min temperature allowed on the device'));
                features.push(exposes.numeric('abs_max_heat_setpoint_limit', ea.ALL)
                    .withUnit('°C').withEndpoint(epName)
                    .withDescription('Absolute max temperature allowed on the device'));
                features.push(exposes.numeric('min_heat_setpoint_limit', ea.ALL)
                    .withValueMin(4).withValueMax(30).withValueStep(0.5).withUnit('°C')
                    .withEndpoint(epName).withDescription('Min temperature limit set on the device'));
                features.push(exposes.numeric('max_heat_setpoint_limit', ea.ALL)
                    .withValueMin(4).withValueMax(30).withValueStep(0.5).withUnit('°C')
                    .withEndpoint(epName).withDescription('Max temperature limit set on the device'));
                features.push(exposes.enum('setpoint_change_source', ea.STATE, ['manual', 'schedule', 'externally'])
                .withEndpoint(epName));
                features.push(exposes.enum('output_status', ea.STATE, ['inactive', 'active'])
                    .withEndpoint(epName).withDescription('Danfoss Output Status [Active vs Inactive])'));
                features.push(exposes.enum('room_status_code', ea.STATE, 'no_error', 'missing_rt',
                'rt_touch_error','floor_sensor_short_circuit','floor_sensor_disconnected')
                    .withEndpoint(epName).withDescription('Thermostat status code'));
                features.push(exposes.enum('schedule_type_used', ea.STATE_SET, ["regular", "vacation"])
                    .withEndpoint(epName).withDescription('Schedule type used [Regular vs Vacation]'));
                // features.push(exposes.numeric('programing_oper_mode', ea.STATE)
                //     .withEndpoint(epName).withDescription('simple setpoint or schedule'));
            }
            return features;
        })(15)),

        configure: async (device, coordinatorEndpoint, logger) => {
            const options = {manufacturerCode: 0x1246};

            for (let i = 1; i <= 15; i++) {
                const endpoint = device.getEndpoint(i);
                if (typeof endpoint !== 'undefined') {
                    await reporting.bind(endpoint, coordinatorEndpoint,
                        ['genPowerCfg', 'hvacThermostat','hvacUserInterfaceCfg']);
                    await reporting.batteryPercentageRemaining(endpoint,
                        {min: constants.repInterval.HOUR, max: 43200, change: 1});
                    await reporting.thermostatTemperature(endpoint,
                        {min: 0, max: constants.repInterval.MINUTES_10, change: 10});
                    await reporting.thermostatOccupiedHeatingSetpoint(endpoint,
                        {min: 0, max: constants.repInterval.MINUTES_10, change: 25});
                    await reporting.thermostatUnoccupiedHeatingSetpoint(endpoint,
                        {min: 0, max: constants.repInterval.MINUTES_10, change: 25});
                    // await reporting.thermostatMinHeatSetpointLimit(endpoint,
                    //     {min: constants.repInterval.HOUR, max: 43200, change: 25});
                    // await reporting.thermostatMaxHeatSetpointLimit(endpoint,
                    //     {min: constants.repInterval.HOUR, max: 43200, change: 25});

                    await endpoint.configureReporting('hvacThermostat', [{
                        attribute: 'danfossOutputStatus',
                        minimumReportInterval: constants.repInterval.MINUTE,
                        maximumReportInterval: constants.repInterval.MINUTES_10,
                        reportableChange: 1,
                    }], options);

                    // await endpoint.configureReporting('hvacThermostat', [{
                    //     attribute: 'danfossScheduleTypeUsed',
                    //     minimumReportInterval: constants.repInterval.HOUR,
                    //     maximumReportInterval: 43200,
                    //     reportableChange: 1,
                    // }], options);

                    // await endpoint.configureReporting('hvacThermostat', [{
                    //     attribute: 'danfossRoomStatusCode',
                    //     minimumReportInterval: constants.repInterval.HOUR,
                    //     maximumReportInterval: 43200,
                    //     reportableChange: 1,
                    // }], options);

                    // await endpoint.configureReporting('hvacThermostat', [{
                    //     attribute: 'setpointChangeSource',
                    //     minimumReportInterval: constants.repInterval.MINUTE,
                    //     maximumReportInterval: constants.repInterval.MAX,
                    //     reportableChange: 1,
                    // }]);

                    // await endpoint.configureReporting('hvacThermostat', [{
                    //     attribute: 'danfossPreHeat',
                    //     minimumReportInterval: constants.repInterval.MINUTE,
                    //     maximumReportInterval: constants.repInterval.MAX,
                    //     reportableChange: 1,
                    // }], options);

                    await endpoint.read('hvacThermostat', [
                        'danfossOutputStatus',
                        'danfossRoomStatusCode',
                        'danfossScheduleTypeUsed',
                        'danfossRoomStatusCode'
                        // 'danfossPreHeat'
                    ], options);

                    // read systemMode to have an initial value

                    await endpoint.read('hvacThermostat', ['systemMode']);
                    // await endpoint.read('hvacThermostat', ['programing_oper_mode']);
                    await endpoint.read('hvacThermostat', ['setpointChangeSource']);
                    await endpoint.read('hvacThermostat', ['absMinHeatSetpointLimit']);
                    await endpoint.read('hvacThermostat', ['absMaxHeatSetpointLimit']);
                    await endpoint.read('hvacThermostat', ['minHeatSetpointLimit']);
                    await endpoint.read('hvacThermostat', ['maxHeatSetpointLimit']);
                    await endpoint.read('genPowerCfg', ['batteryPercentageRemaining']);


                }
            }
        },
    },
];

[sjorge]

Wait I think I know, try naming them l1-l9 and see if that works, if that works I know what is wrong.

Edit: if that is the case, it’s because they are not in the endpoint whitelist: https://github.com/Koenkk/zigbee2mqtt/blob/07a8a78a551f95ef345d97b4f5db79cb85318189/lib/util/utils.ts#L33-L45

[Koenkk]

@robertalexa, my daily stupid question, do you know when it will be released to the HA addons (stable or edge). Winter is coming and it is getting cold here in the North 😃

Will be in edge tomorrow evening
