SP600 is flooding the network with messages

This is a small sample of the debug log from my network with a single SP600.

zigbee2mqtt:debug 2020-01-14 00:47:52: Received Zigbee message from 'SmartPlug6', type 'attributeReport', cluster 'seMetering', data '{"currentSummDelivered":[0,6636]}' from endpoint 9 with groupID 0
zigbee2mqtt:info  2020-01-14 00:47:52: MQTT publish: topic 'zigbee2mqtt/SmartPlug6', payload '{"state":"OFF","linkquality":26,"power":0,"energy":0.6636000000000001}'
zigbee2mqtt:debug 2020-01-14 00:47:52: Received Zigbee message from 'SmartPlug6', type 'attributeReport', cluster 'seMetering', data '{"instantaneousDemand":1,"currentSummDelivered":[0,6636]}' from endpoint 9 with groupID 0
zigbee2mqtt:info  2020-01-14 00:47:52: MQTT publish: topic 'zigbee2mqtt/SmartPlug6', payload '{"state":"OFF","linkquality":26,"power":0.1,"energy":0.6636000000000001}'
zigbee2mqtt:debug 2020-01-14 00:47:53: Received Zigbee message from 'SmartPlug6', type 'attributeReport', cluster 'seMetering', data '{"currentSummDelivered":[0,6636]}' from endpoint 9 with groupID 0
zigbee2mqtt:info  2020-01-14 00:47:53: MQTT publish: topic 'zigbee2mqtt/SmartPlug6', payload '{"state":"OFF","linkquality":26,"power":0.1,"energy":0.6636000000000001}'
zigbee2mqtt:debug 2020-01-14 00:47:54: Received MQTT message on 'zigbee2mqtt/bridge/config/devices' with data '1578962874587'
zigbee2mqtt:info  2020-01-14 00:47:54: MQTT publish: topic 'zigbee2mqtt/bridge/log' //removed
zigbee2mqtt:debug 2020-01-14 00:47:54: Received Zigbee message from 'SmartPlug6', type 'attributeReport', cluster 'seMetering', data '{"instantaneousDemand":0,"currentSummDelivered":[0,6636]}' from endpoint 9 with groupID 0
zigbee2mqtt:info  2020-01-14 00:47:54: MQTT publish: topic 'zigbee2mqtt/SmartPlug6', payload '{"state":"OFF","linkquality":28,"power":0,"energy":0.6636000000000001}'
zigbee2mqtt:info  2020-01-14 00:47:55: MQTT publish: topic 'zigbee2mqtt/bridge/config', payload '{"version":"1.8.0","commit":"da4d26a","coordinator":{"type":"zStack12","meta":{"transportrev":2,"product":0,"majorrel":2,"minorrel":6,"maintrel":3,"revision":20190608}},"log_level":"debug","permit_join":false}'
zigbee2mqtt:debug 2020-01-14 00:47:55: Received Zigbee message from 'SmartPlug6', type 'attributeReport', cluster 'seMetering', data '{"currentSummDelivered":[0,6636]}' from endpoint 9 with groupID 0
zigbee2mqtt:info  2020-01-14 00:47:55: MQTT publish: topic 'zigbee2mqtt/SmartPlug6', payload '{"state":"OFF","linkquality":28,"power":0,"energy":0.6636000000000001}'
zigbee2mqtt:debug 2020-01-14 00:47:56: Received Zigbee message from 'SmartPlug6', type 'attributeReport', cluster 'seMetering', data '{"instantaneousDemand":1,"currentSummDelivered":[0,6636]}' from endpoint 9 with groupID 0
zigbee2mqtt:info  2020-01-14 00:47:56: MQTT publish: topic 'zigbee2mqtt/SmartPlug6', payload '{"state":"OFF","linkquality":26,"power":0.1,"energy":0.6636000000000001}'
zigbee2mqtt:debug 2020-01-14 00:47:57: Received Zigbee message from 'SmartPlug6', type 'attributeReport', cluster 'seMetering', data '{"instantaneousDemand":0,"currentSummDelivered":[0,6636]}' from endpoint 9 with groupID 0
zigbee2mqtt:info  2020-01-14 00:47:57: MQTT publish: topic 'zigbee2mqtt/SmartPlug6', payload '{"state":"OFF","linkquality":26,"power":0,"energy":0.6636000000000001}'
zigbee2mqtt:debug 2020-01-14 00:47:58: Received MQTT message on 'zigbee2mqtt/bridge/config/devices' with data '1578962878589'
zigbee2mqtt:info  2020-01-14 00:47:58: MQTT publish: topic 'zigbee2mqtt/bridge/log',  //removed
zigbee2mqtt:debug 2020-01-14 00:47:58: Received Zigbee message from 'SmartPlug6', type 'attributeReport', cluster 'seMetering', data '{"currentSummDelivered":[0,6636]}' from endpoint 9 with groupID 0
zigbee2mqtt:info  2020-01-14 00:47:58: MQTT publish: topic 'zigbee2mqtt/SmartPlug6', payload '{"state":"OFF","linkquality":26,"power":0,"energy":0.6636000000000001}'
zigbee2mqtt:debug 2020-01-14 00:47:59: Received Zigbee message from 'SmartPlug6', type 'attributeReport', cluster 'seMetering', data '{"currentSummDelivered":[0,6636]}' from endpoint 9 with groupID 0
zigbee2mqtt:info  2020-01-14 00:47:59: MQTT publish: topic 'zigbee2mqtt/SmartPlug6', payload '{"state":"OFF","linkquality":26,"power":0,"energy":0.6636000000000001}'

As you can see, that single device is sending 2 to 3 messages per second, which sounds quite a lot to me!

I doubt that if instead of just one I had 2 or 3, the network would not be able to cope with them!

There’s nothing attached to the smart plug and it is currently off, yet I do see the power value on the received messages oscillating between 0 and 1, which given the multiplier of 10000 it then translates to a real power value between 0.0W and 0.1W (so not very important)

Any idea why we see these oscillations?

There also seems to be a javascript math rounding error in mqtt message energy attribute, so I’ve created PR #905 to fix that.

[pedrolamas]

Amazing work @lwfitzgerald, I’ve now tested your changes and I can confirm that my SP600 stopped flooding the network! 😁

[lwfitzgerald]

I had some time to look at this last night and I’ve worked out the issue is.

I’ve raised PR #1157 which includes an explanation of the issue and a fix.

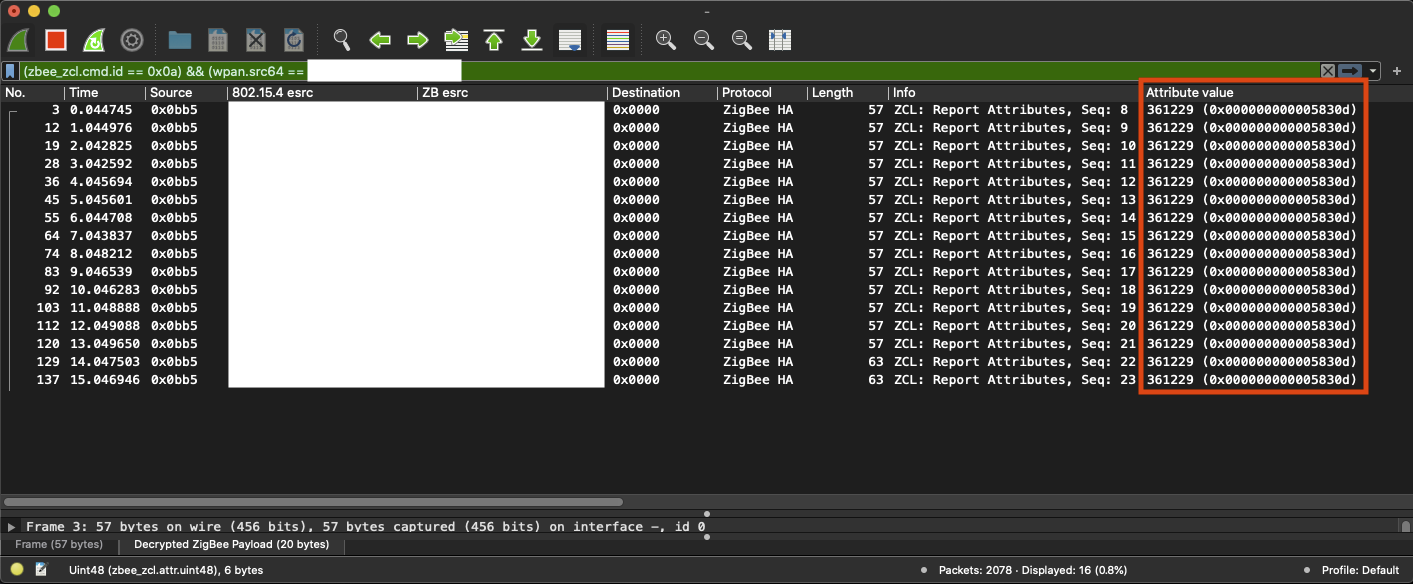

After breaking out the sniffer, I noticed that the currentSummDelivered reports were being sent even though the value was not changing:

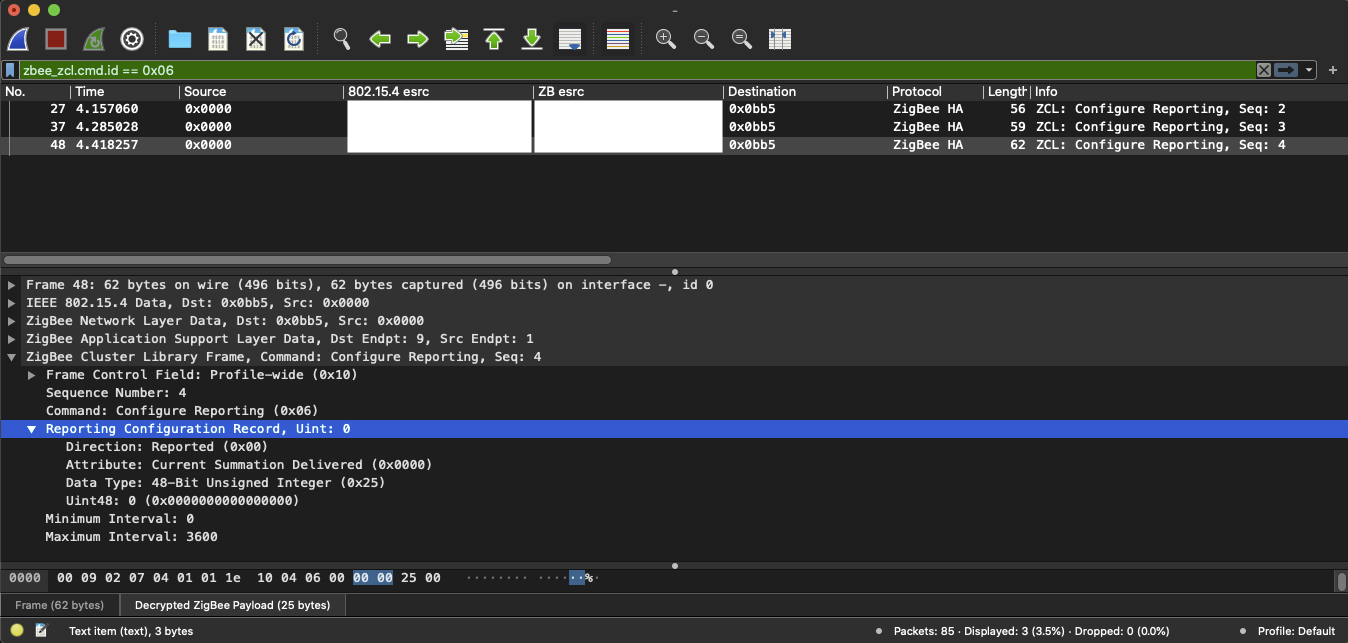

I then had a look at the configureReporting message sent when manually triggering configuration of the device:

Here I noticed that the reportableChange value was incorrect (0 instead of the expected 1).

currentSummDelivered is a uint48 value and as such, when reporting is being configured, the reportableChange needs to be of the same type. BuffaloZcl.writeUInt48 expects to be passed a 2 element array of numbers, the first representing the 2 most significant bytes and the second the 4 least significant bytes. This means the default payload had an incorrect value of 1, which should instead be [0, 1].
