[BUG] Video window doesn't show combined/addWeight image with mask

Check if issue already exists

Describe the bug The handler.py is actually working means it does return correct segmentation data, BUT the host window does not show the mask/overlay on top of the original image.

To Reproduce handler.py

from typing import overload
from depthai_helpers.managers import Previews
from resources.nn.colormap import ColorMap
import cv2
import numpy as np

from depthai_helpers.utils import to_tensor_result


def decode(nn_manager, packet):
    # [print(f"Layer name: {l.name}, Type: {l.dataType}, Dimensions: {l.dims}") for l in packet.getAllLayers()]
    # after squeeze the data.shape is 4,512, 896
    data = np.squeeze(to_tensor_result(packet)["L0317_ReWeight_SoftMax"])
    class_colors = ColorMap.COLORS
    class_colors = np.asarray(class_colors, dtype=np.uint8)

    indices = np.argmax(data, axis=0)
    indices += 8
    output_colors = np.take(class_colors, indices, axis=0)
    return output_colors



def draw(nn_manager, data, frames):
    if len(data) == 0:
        return
    for name, frame in frames:
        if name in (nn_manager.source, 'host'):
            resized = frame
            if frame.shape != data.shape:
                # resize the data to fit frame
                newsize = frame.shape[:2][1],frame.shape[:2][0]
                resized = cv2.resize(data, newsize)

            # overlayed = cv2.addWeighted(resized, 0.5, data, 0.5, 0)
            overlayed = (frame * 0.5 + resized * 0.5).astype('uint8')

            return overlayed
            # return data

# def draw(nn_manager, data, frames):
#     if len(data) == 0:
#         return
#     for name, frame in frames:
#         if name in (Previews.color.name, Previews.nn_input.name, 'host'):
#             scale_factor = frame.shape[0] / nn_manager.input_size[1]
#             resize_w = int(nn_manager.input_size[0] * scale_factor)
#             resized = cv2.resize(data, (resize_w, frame.shape[0])).astype(data.dtype)
#             offset_w = int(frame.shape[1] - nn_manager.input_size[0] * scale_factor) // 2
#             tail_w = frame.shape[1] - offset_w - resize_w
#             stacked = np.hstack((np.zeros((frame.shape[0], offset_w, 3)).astype(resized.dtype), resized, np.zeros((frame.shape[0], tail_w, 3)).astype(resized.dtype)))
#             cv2.addWeighted(frame, 1, stacked, 0.2, 0, frame)

road-segmentation-adas-0001.json

{
    "nn_config": {
        "output_format" : "raw",
        "input_size": "896x512"
    },
    "handler": "handler.py"
}

Steps to reproduce the behavior:

1. python depthai_demo.py -cnn road-segmentation-adas-0001 -vid /media/Workspace/Learning/Github/depthai/videos/CamVid.mp4 -sh 8

Expected behavior A clear overlay or mask on top of the video.

What I did

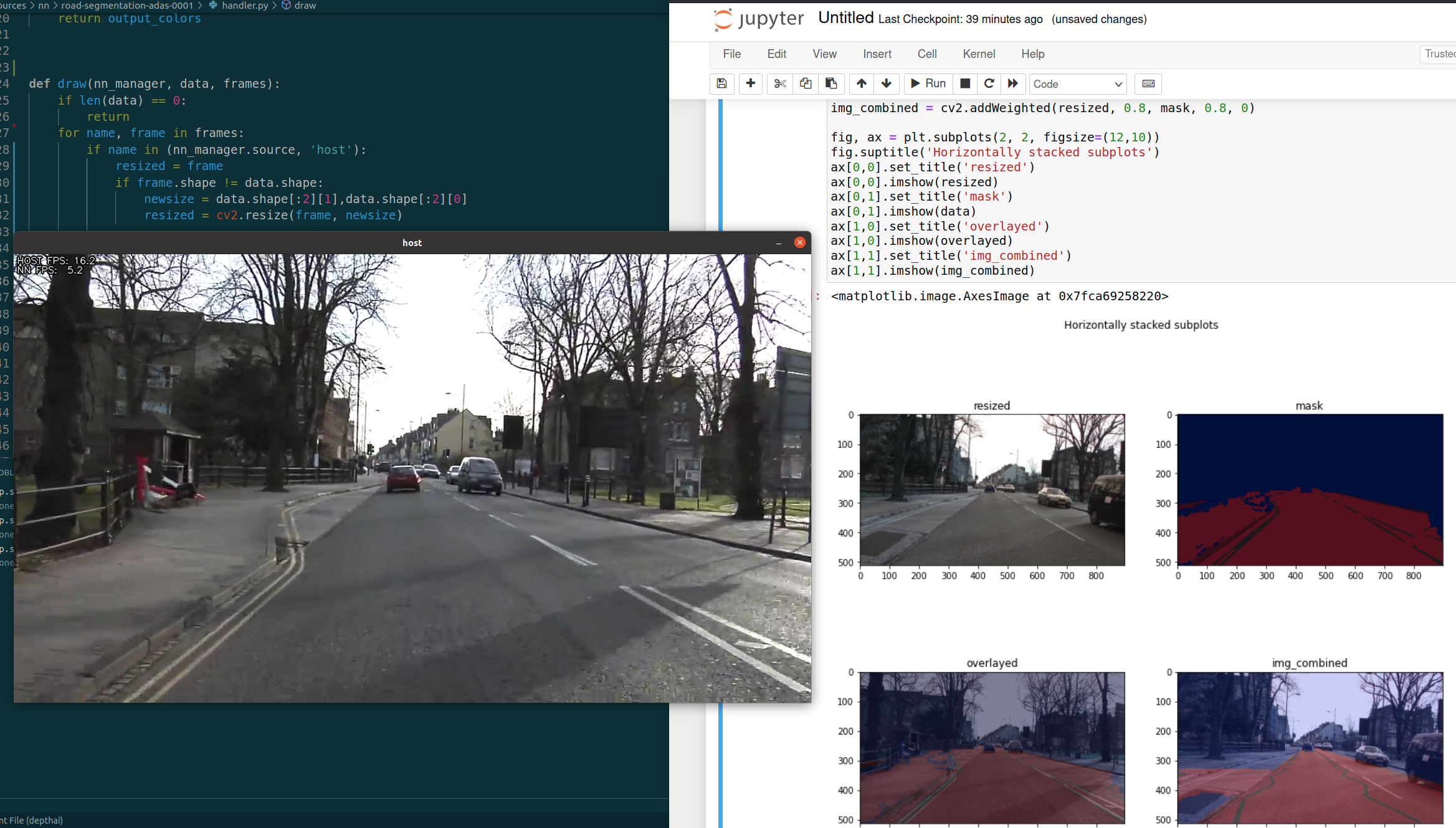

I saved the numpy array data and displayed them with matplotlib, I can see the overlay/mask over there, but not on the video window which is launched by the depthai_demo.py

np.save(‘resized.npy’, resized) np.save(‘data.npy’, data) np.save(‘overlayed.npy’, overlayed) np.save(‘frame.npy’, frame)

[franva]

Hi @Luxonis-Brandon and @VanDavv Thanks for the positive feedback, I appreciate your enthusiasm on bringing more new examples and features~!

Hi @VanDavv

It’s great to see the demo code for road segmentation 😃, thanks for creating it.

I see one more thing which is very valuable for users, a tutorial of training a segmentation model. You might not be aware that the current official notebook tutorial for training a segmentation model is out of date and not working. A 3rd party service is left there for us to use and it’s already broken and we need to pay for that service or trade our data for using that service.

I feel like that I paid for a product and want to use it and then I found that to use the product, I need to again pay for other services in order to use the product which I have already paid for, the issue has been created here if you’d like to know more details about it.

Hopefully there would be at least one tutorial for training a segmentation model, so many new ideas can take off without difficulties.

[VanDavv]

Yes, I already started to work on road segmentation here (WIP in decoding) and had to postpone it a bit due to demo fixes, but will work on this more this week and circle back with PR.

Thanks again @franva, this issue will be definitely helpful
