Setting output variable directly from AzureResourceManagerTemplateDeployment@3 deployment output value gives leading whitespace

See original GitHub issue

Required Information

Question, Bug, or Feature?
Type: Bug

Enter Task Name: AzureResourceManagerTemplateDeployment@3

Environment

Server - Azure Pipelines
Agent - Private, Ubuntu20.04
- Azure DevOps + VMSS
- VM-extension (Microsoft.Azure.DevOps.Pipelines.Agent - Microsoft.VisualStudio.Services.TeamServicesAgentLinux - 1.22)

Issue Description

Setting output variables with “##vso[task.setvariable]” using the deployment output values directly from AzureResourceManagerTemplateDeployment@3 task gives leading whitespace in the results.

- task: AzureResourceManagerTemplateDeployment@3
  displayName: Deploy ExpressRoute Circuit
  inputs:
    <obfuscated>
    deploymentMode: Incremental
    deploymentOutputs: ercOutputs

- powershell: |
    Write-Host "##vso[task.setvariable variable=ercId;isOutput=true]$(ercOutputs.ercId.value)"
    Write-Host "##vso[task.setvariable variable=ercLocation;isOutput=true]$(ercOutputs.ercLocation.value)"
  displayName: 'Write output variables'
  name: ercVars

Next job using the output variables as stageDependencies:

- stage: MyNextStage
  dependsOn:
  - TheOtherStage

  jobs:

  - job: ExpressRouteGatewayAndConnection
    displayName: 'Deploy Expressroute Gateway and Connection'
    variables:
      ercId: $[stageDependencies.ExpressRouteCircuit.DeployExpressRouteCircuit.outputs['ercVars.ercId']]
      ercLocation: $[stageDependencies.ExpressRouteCircuit.DeployExpressRouteCircuit.outputs['ercVars.ercLocation']]

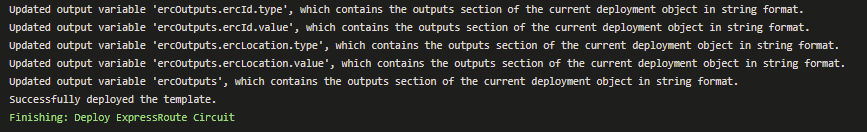

Task logs

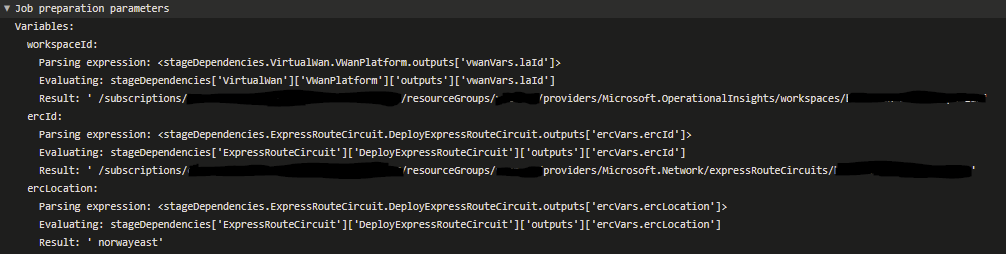

The job preparation parameters result always have a leading whitespace, and I guess this is not intended. This seems to have made the parameter validation for my next job fail atleast.

Troubleshooting

I am fully aware that I can solve this by doing the traditional example.

        $json = ConvertFrom-Json '$(ercOutputs)'
        Write-Host "##vso[task.setvariable variable=ercId;isOutput=true]$($json.ercId.value)"
        Write-Host "##vso[task.setvariable variable=ercLocation;isOutput=true]$($json.ercLocation.value)"

However if this could be used properly it would feel atleast a bit smoother working with the outputs.

Error logs

2022-05-04T14:38:29.1504100Z There were errors in your deployment. Error code: InvalidDeploymentParameterKey.
2022-05-04T14:38:29.1507327Z ##[error]One of the deployment parameters has an empty key. Please see https://aka.ms/resource-manager-parameter-files for details.
2022-05-04T14:38:29.1528085Z ##[error]Check out the troubleshooting guide to see if your issue is addressed: https://docs.microsoft.com/en-us/azure/devops/pipelines/tasks/deploy/azure-resource-group-deployment?view=azure-devops#troubleshooting
2022-05-04T14:38:29.1542329Z ##[error]Task failed while creating or updating the template deployment.
