M68000: Decompiler (sbcd instruction)

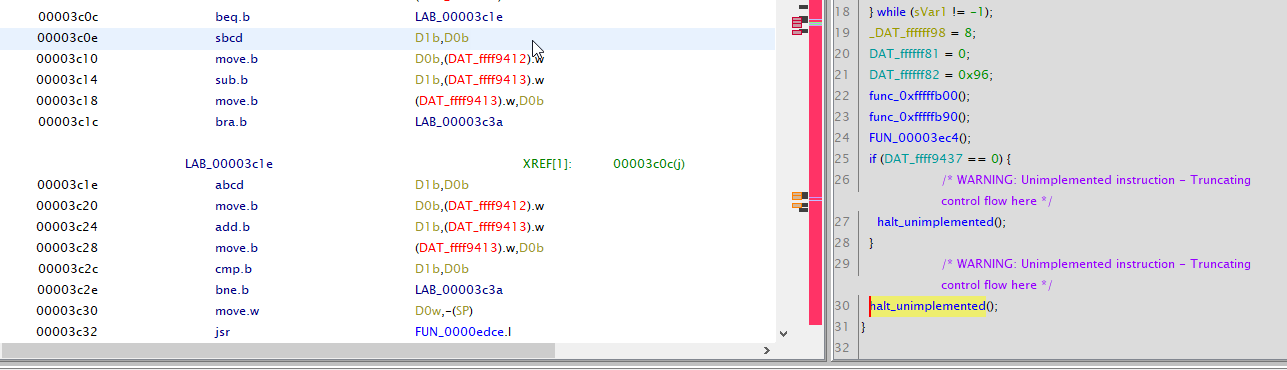

Decompiler does not understand sbcd instruction:

[emteere]

These may not be exactly right, but will get past issues with the unimplemented instructions. Feel free to improve. If they are acceptable in this form, then they’ll be in the next release. In writing semantics the most important thing is to get the inputs and affected registers and memory for data flow. These semantics could be too complicated for the needed use in understanding the code. Many instructions will never have the full semantics, such as sin().

diff --git a/Ghidra/Processors/68000/data/languages/68000.sinc b/Ghidra/Processors/68000/data/languages/68000.sinc
index aab6335..a20600c 100644
--- a/Ghidra/Processors/68000/data/languages/68000.sinc
+++ b/Ghidra/Processors/68000/data/languages/68000.sinc
@@ -306,6 +306,8 @@
 define pcodeop restoreFPUStateFrame;
 define pcodeop pushInvalidateCaches;

+define pcodeop bcdAdjust;
+
 define pcodeop sin;
 define pcodeop cos;
 define pcodeop tan;
@@ -638,6 +640,11 @@
  $(NAN_FP) = 0;
 }

+macro bcdflags(result) {
+ XF = CF;
+ ZF = (result == 0) * ZF + (result != 0);
+}
+
 # SCR 10997:
 macro getbit(res,in,bitnum) {
   res = ((in >> bitnum) & 1) != 0;
@@ -687,7 +694,7 @@

 with : extGUARD=1 {

-:abcd Tyb,Txb			is op=12 & op48=16 & Tyb & Txb					unimpl
+:abcd Tyb,Txb			is op=12 & op48=16 & Tyb & Txb					{ CF = carry(Tyb,carry(Txb,XF)); Tyb = Tyb + Txb + XF; Tyb = bcdAdjust(Tyb); bcdflags(Tyb); }

 :add.b eab,reg9dnb		is (op=13 & reg9dnb & op68=0)... & eab				{ addflags(eab,reg9dnb); reg9dnb = reg9dnb + eab; resflags(reg9dnb); }
 :add.w eaw,reg9dnw		is (op=13 & reg9dnw & op68=1)... & eaw				{ addflags(eaw,reg9dnw); reg9dnw = reg9dnw + eaw; resflags(reg9dnw); }
@@ -1391,7 +1398,8 @@
 											  regdr=res(4); resflags(res); CF=0; VF=0; }
 :mul^mulsize e2l,submul		is opbig=0x4c & op67=0 & $(DAT_ALTER_ADDR_MODES); submul & mulsize; e2l [ savmod2=savmod1; regtsan=regtfan; ] { glbdenom=e2l; build submul; }

-:nbcd eab			is (opbig=0x48 & op67=0 & $(DAT_ALTER_ADDR_MODES))... & eab			unimpl
+:nbcd eab			is (opbig=0x48 & op67=0 & $(DAT_ALTER_ADDR_MODES))... & eab
+                   {  tmp:1 = eab; CF = (tmp != 0) || (XF == 1);  tmp = 0 - tmp - XF; eab = bcdAdjust(tmp); bcdflags(tmp); }


 # NB: For the neg insn the CF carry flag is not set like other insns, from the manual:
@@ -1600,7 +1608,8 @@

 :rts				is opbig=0x4e & op37=14 & op02=5				{ PC = *SP; SP = SP+4; return [PC]; }

-:sbcd Tyb,Txb			is op=8 & op48=16 & Txb & Tyb					unimpl
+:sbcd Tyb,Txb			is op=8 & op48=16 & Txb & Tyb
+                    {  CF = (Tyb < Txb) || ( (XF == 1) && (Tyb == Txb) );  Tyb = Tyb - Txb - XF; Tyb = bcdAdjust(Tyb); bcdflags(Tyb); }

 :s^cc eab			is (op=5 & cc & op67=3 & $(DAT_ALTER_ADDR_MODES))... & eab				{ eab = -cc; }


P.S. That’s alot of red bookmarks in your code browser. Hopefully this will fix some of them.

[emteere]

Hmmm. Thought these made it in. Will check on it.
