Fork / Decision / Join, cannot join on forks correctly

See original GitHub issue

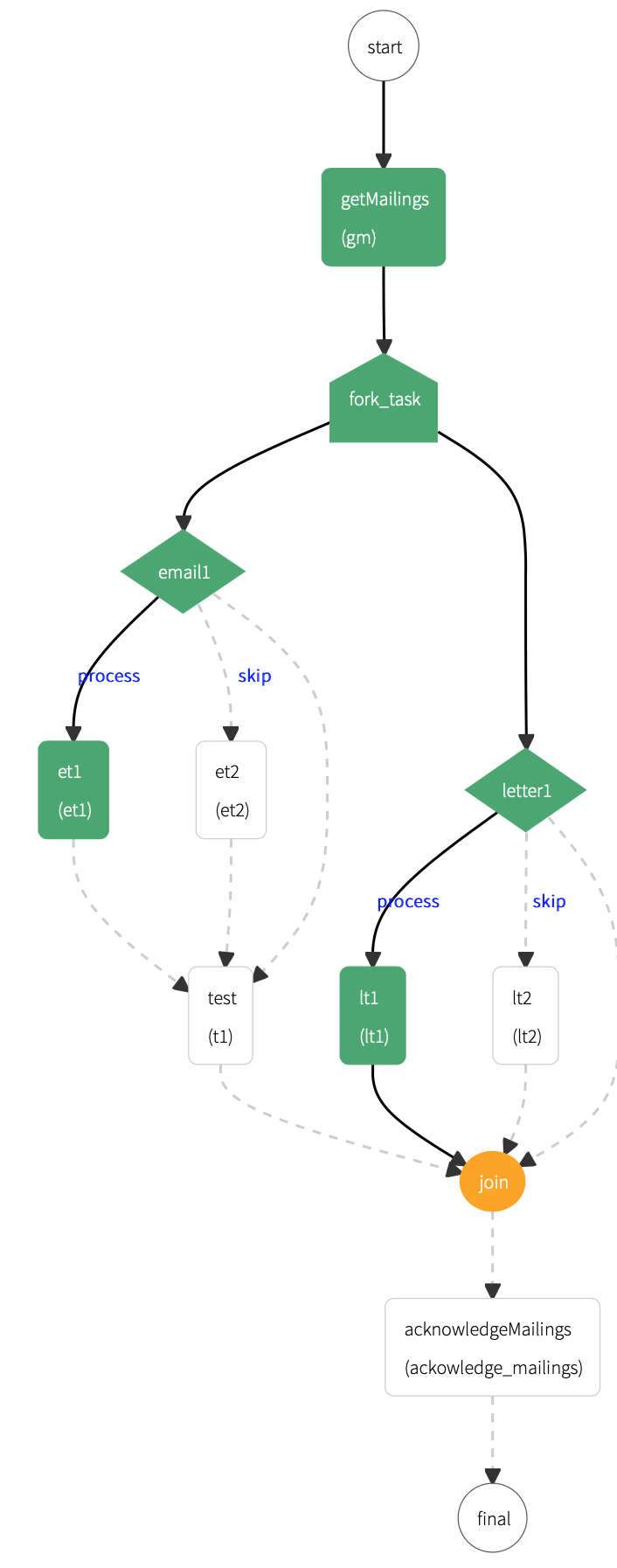

We are working on a POC that tests some of the fork/join/decision capabilities of conductor, but I’m running into an issue where the final join before the acknowledgeMailings task can’t see any other tasks after the 2 fork branches (email1 and letter1), as shown below:

JSON for the above here

I tried adding test (t1) as a simple http task and then joining on [“test”, “lt1”] but it doesn’t seem to work, additionally, test (t1) does not even run after the decision.

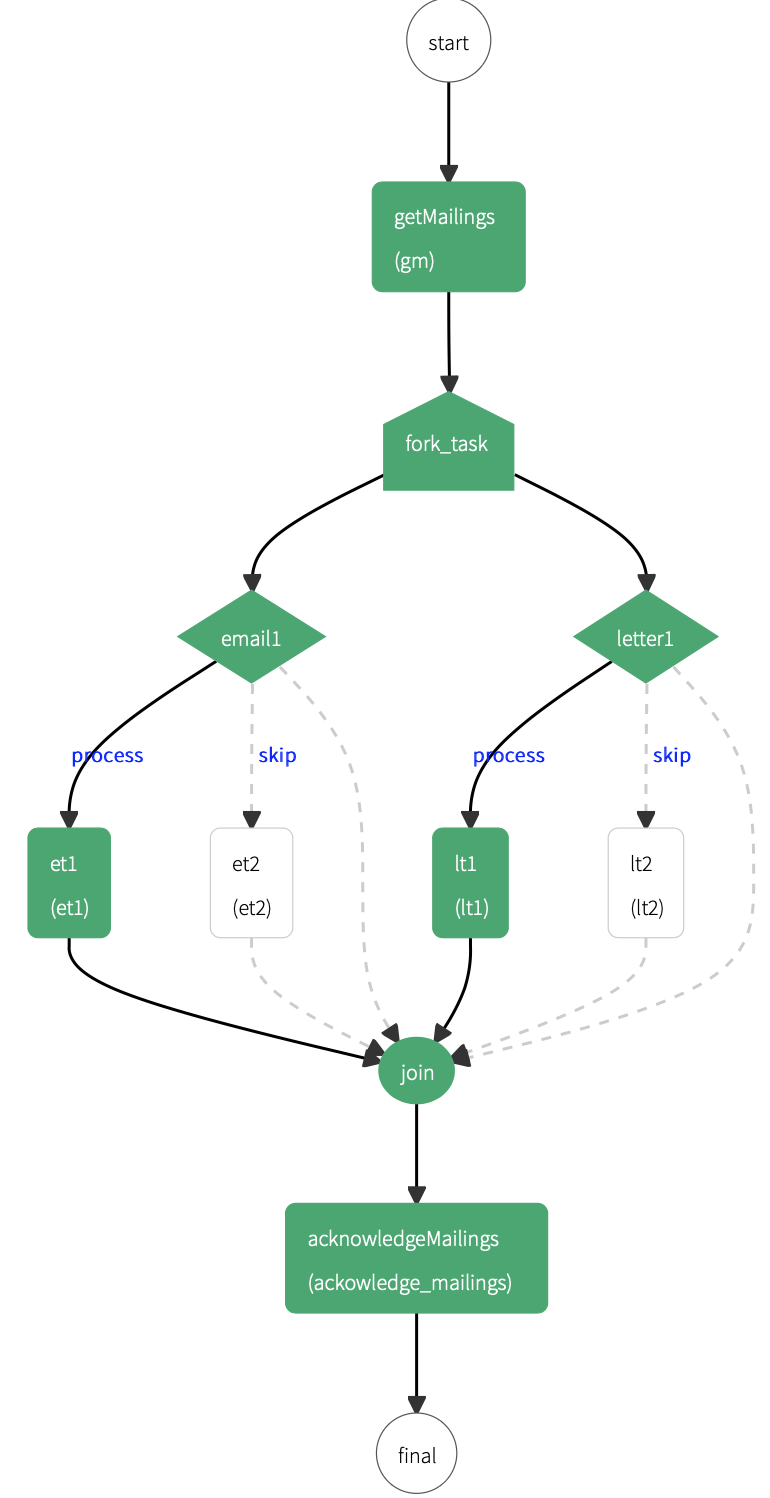

This flow is working correctly, but it only is joining on [“et1”, “lt1”] but I essentially need

("et1" OR "et2") AND ("lt1" OR "lt2")

JSON for the above here

I’m sure there must be something that I am missing. any help would be greatly appreciated.

Thanks.

Issue Analytics

State:
Created 5 years ago
Comments:8 (7 by maintainers)

Top GitHub Comments

1reaction

james-deeecommented, Oct 17, 2019

@kishorebanala sorry, never even replied. Thank you, this worked.

0reactions

apanicker-nflxcommented, Dec 24, 2019

Fixed as part of #1449
