Difference in prediction output of a scikit-learn model and ONNX model for the same data.

See the difference in output in following image. The dataset is for binary classification. The code to generate the model is:

categorical_pipeline_onehot = Pipeline([
             ('OneHot', OneHotEncoder( handle_unknown='ignore'))
        ])
preprocessor = ColumnTransformer(
    transformers=[('Onehot', categorical_pipeline_onehot, CATEGORICAL_ATTRIBUTES_ONEHOT)],
    remainder='passthrough')
from xgboost import XGBClassifier
xgb = XGBClassifier()

clf = Pipeline(steps=[('preprocessor', preprocessor),('cls', xgb)])
clf.fit(df_train[predictors], df_train["IsSelected"])

update_registered_converter(
    XGBClassifier, 'XGBoostXGBClassifier',
    calculate_linear_classifier_output_shapes, convert_xgboost,
    options={'nocl': [True, False], 'zipmap': [True, False]})

To convert this model to ONNX the code is:

def convert_dataframe_schema(df, drop=None):
    inputs = []
    for k, v in zip(df.columns, df.dtypes):
        if drop is not None and k in drop:
            continue
        if v == 'int64':
            t = Int64TensorType([None, 1])
        elif v == 'float64':
            t = FloatTensorType([None, 1])
        else:
            t = StringTensorType([None, 1])
        inputs.append((k, t))
    return inputs

try:
    model_onnx_wholed = convert_sklearn(model, 'pipeline_with_onehot', inputs)
except Exception as e:
    print(e)

with open("XGB_onehot_wholedata.onnx", "wb") as f:
    f.write(model_onnx_wholed.SerializeToString())

While prediction I am using C++ APIs as well as Python for onnxruntime. The prediction output generated by the onnx model is all 0 for both C++ and Python which do not match with that of the trained sklearn model.

The ONNX model adds Cast operator for features. It may be due to this but I am not sure.

The C++ onnxruntime API log is as following:

2020-07-06 18:50:47.2890620 [W:onnxruntime:test, abi_session_options.cc:147 OrtApis::SetIntraOpNumThreads] Since openmp is enabled in this build, this API cannot be used to configure intra op num threads. Please use the openmp environment variables to control the number of threads.
Using Onnxruntime C++ API
2020-07-06 18:50:55.2296864 [I:onnxruntime:, inference_session.cc:174 onnxruntime::InferenceSession::ConstructorCommon] Creating and using per session threadpools since use_per_session_threads_ is true
2020-07-06 18:50:55.4219403 [I:onnxruntime:, inference_session.cc:830 onnxruntime::InferenceSession::Initialize] Initializing session.
2020-07-06 18:50:55.4220585 [I:onnxruntime:, inference_session.cc:848 onnxruntime::InferenceSession::Initialize] Adding default CPU execution provider.
2020-07-06 18:50:55.4224222 [I:onnxruntime:test, bfc_arena.cc:15 onnxruntime::BFCArena::BFCArena] Creating BFCArena for Cpu
2020-07-06 18:50:55.4224870 [V:onnxruntime:test, bfc_arena.cc:32 onnxruntime::BFCArena::BFCArena] Creating 21 bins of max chunk size 256 to 268435456
2020-07-06 18:50:55.4247204 [V:onnxruntime:, inference_session.cc:671 onnxruntime::InferenceSession::TransformGraph] Node placements
2020-07-06 18:50:55.4248273 [V:onnxruntime:, inference_session.cc:673 onnxruntime::InferenceSession::TransformGraph] All nodes have been placed on [CPUExecutionProvider].
2020-07-06 18:50:55.4249199 [I:onnxruntime:, session_state.cc:25 onnxruntime::SessionState::SetGraph] SaveMLValueNameIndexMapping
2020-07-06 18:50:55.4250567 [I:onnxruntime:, session_state.cc:70 onnxruntime::SessionState::SetGraph] Done saving OrtValue mappings.
2020-07-06 18:50:55.4266916 [I:onnxruntime:, session_state_initializer.cc:178 onnxruntime::SaveInitializedTensors] Saving initialized tensors.
2020-07-06 18:50:55.4268214 [I:onnxruntime:, session_state_initializer.cc:223 onnxruntime::SaveInitializedTensors] Done saving initialized tensors
2020-07-06 18:50:55.7311821 [I:onnxruntime:, inference_session.cc:919 onnxruntime::InferenceSession::Initialize] Session successfully initialized.
Number of inputs = 22
Number of outputs = 2
Output 0 : name=label
Output 1 : name=probabilities

2020-07-06 18:51:18.7355209 [I:onnxruntime:, sequential_executor.cc:145 onnxruntime::SequentialExecutor::Execute] Begin execution
2020-07-06 18:51:27.4858870 [I:onnxruntime:test, bfc_arena.cc:259 onnxruntime::BFCArena::AllocateRawInternal] Extending BFCArena for Cpu. bin_num:0 rounded_bytes:256
2020-07-06 18:51:27.4867688 [I:onnxruntime:test, bfc_arena.cc:143 onnxruntime::BFCArena::Extend] Extended allocation by 1048576 bytes.
2020-07-06 18:51:27.4871985 [I:onnxruntime:test, bfc_arena.cc:147 onnxruntime::BFCArena::Extend] Total allocated bytes: 1048832
2020-07-06 18:51:27.4872666 [I:onnxruntime:test, bfc_arena.cc:150 onnxruntime::BFCArena::Extend] Allocated memory at 000001D54AC25060 to 000001D54AD25060
Predicted Class:
0
0
0
0
0
0
0
0
0
0
0
0

Versions:
skl2onnx: 1.7.0
onnxruntime: 1.3.0

[Karnav123]

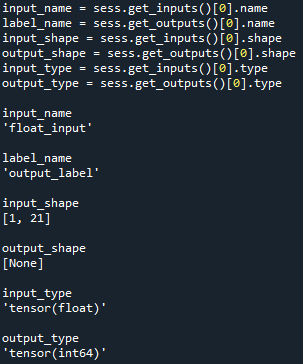

without index and sess parameters don’t understand why output shape is [None] and output type supposed to be float may be

use as following:

sess = rt.InferenceSession("your_model.onnx")
input_name = sess.get_inputs()[0].name
label_name = sess.get_outputs()[0].name
output_probability = sess.get_outputs()[1].name

pred_onx = sess.run([label_name, output_probability], {input_name: X_test_.astype(np.int64)})
print("predict", pred_onx[0][:])
print("predict_proba", pred_onx[1][:])

[Karnav123]

May I close the issue?

Yes
