Non Square Input Resolution with YoloX - Validation mAP=0

Hello, I’m training a yolox-l model on a custom coco type dataset. This works well when using square input resolution, the default is (640,640), but I also trained successfully on (800,800) and (1120,1120).

Using the exact same config but changing the input resolution to anything non square, e.g (960,800) the training results in 0 validation mAP consistently.

I used the browse_dataset.py script to check that the training data looks good (no excess distortion and bboxes located and sized properly) and as far as I see, the same resize is used for train and validation (and test), no padding and keep_ratio=False

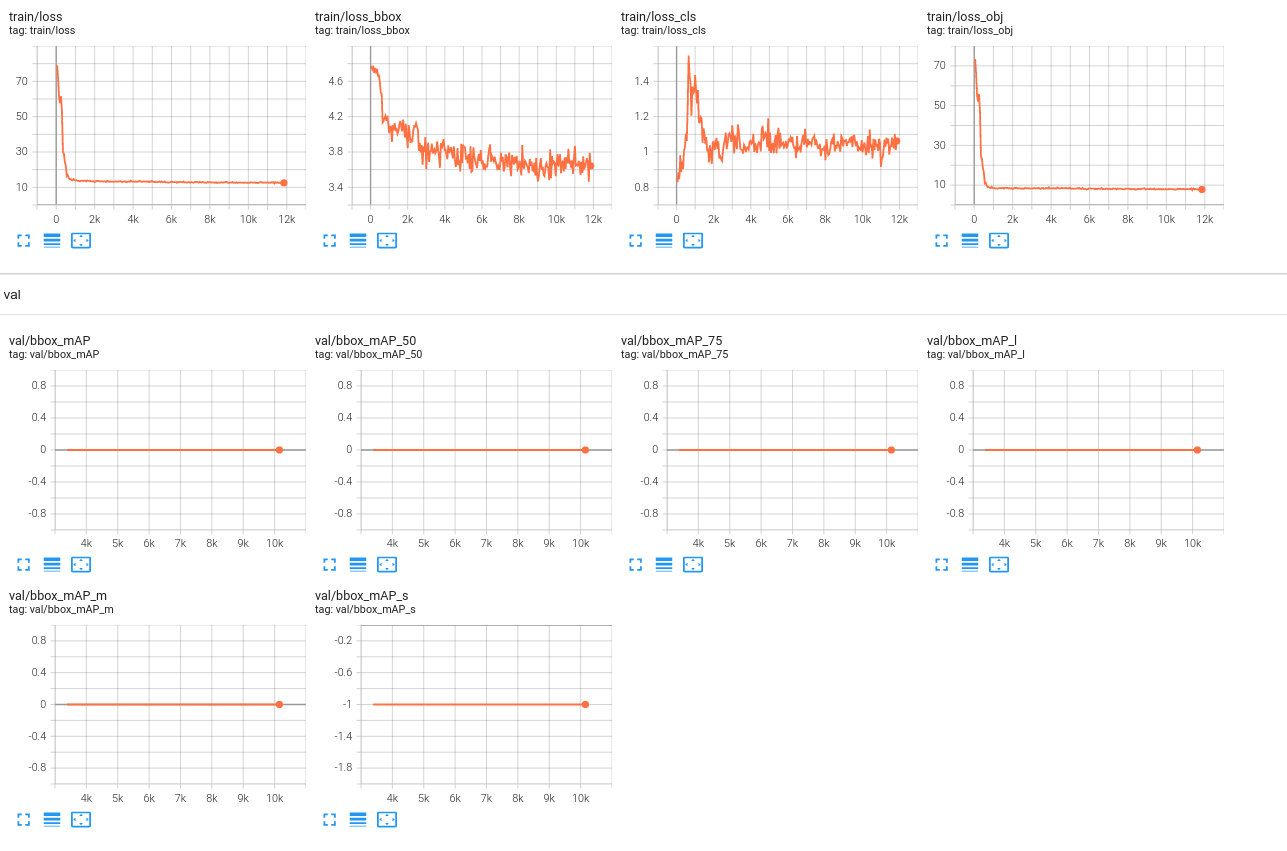

Example results for (960,800):

config:

dist_params = dict(backend='nccl')
log_level = 'INFO'
load_from = None
resume_from = None
workflow = [('train', 1)]
conf_dir = '/ssd/Arik/PycharmProjects/mmdetection/configs/yolox/'
img_scale = (960, 800)
max_epochs = 50
num_last_epochs = 10
interval = 1
auto_resume = False
gpu_ids = [0]
optimizer = dict(
    type='SGD',
    lr=0.001,
    momentum=0.9,
    weight_decay=0.0005,
    nesterov=True,
    paramwise_cfg=dict(norm_decay_mult=0.0, bias_decay_mult=0.0))
optimizer_config = dict(grad_clip=None)
lr_config = dict(
    policy='YOLOX',
    warmup='exp',
    by_epoch=False,
    warmup_by_epoch=True,
    warmup_ratio=1,
    warmup_iters=1,
    num_last_epochs=10,
    min_lr_ratio=0.05)
runner = dict(type='EpochBasedRunner', max_epochs=50)
checkpoint_config = dict(interval=1)
log_config = dict(
    interval=50,
    hooks=[dict(type='TextLoggerHook'),
           dict(type='TensorboardLoggerHook')])
custom_hooks = [
    dict(type='YOLOXModeSwitchHook', num_last_epochs=10, priority=48),
    dict(type='SyncNormHook', num_last_epochs=10, interval=1, priority=48),
    dict(
        type='ExpMomentumEMAHook',
        resume_from=None,
        momentum=0.0001,
        priority=49)
]
model = dict(
    type='YOLOX',
    input_size=(960, 800),
    random_size_range=(15, 25),
    random_size_interval=10,
    backbone=dict(type='CSPDarknet', deepen_factor=1.0, widen_factor=1.0),
    neck=dict(
        type='YOLOXPAFPN',
        in_channels=[256, 512, 1024],
        out_channels=256,
        num_csp_blocks=3),
    bbox_head=dict(
        type='YOLOXHead', num_classes=2, in_channels=256, feat_channels=256),
    train_cfg=dict(assigner=dict(type='SimOTAAssigner', center_radius=2.5)),
    test_cfg=dict(score_thr=0.001, nms=dict(type='nms', iou_threshold=0.65)))
dataset_type = 'CocoDataset'
data = dict(
    samples_per_gpu=4,
    workers_per_gpu=2,
    persistent_workers=True,
    train=dict(
        type='MultiImageMixDataset',
        dataset=dict(
            type='CocoDataset',
            ann_file=
            '/ssd/Arik/tel_aviv/data/coco/2022_02_07_containers_filtered/coco_labels_train.json',
            img_prefix='/ssd/Arik/tel_aviv/data/labeled/',
            classes=['opentrashcan', 'trashcontainer'],
            pipeline=[
                dict(type='LoadImageFromFile'),
                dict(type='LoadAnnotations', with_bbox=True)
            ],
            filter_empty_gt=False),
        pipeline=[
            dict(type='RandomFlip', flip_ratio=0.5),
            dict(type='Resize', img_scale=(960, 800), keep_ratio=False),
            dict(
                type='FilterAnnotations',
                min_gt_bbox_wh=(1, 1),
                keep_empty=False),
            dict(type='DefaultFormatBundle'),
            dict(type='Collect', keys=['img', 'gt_bboxes', 'gt_labels'])
        ]),
    val=dict(
        type='CocoDataset',
        ann_file=
        '/ssd/Arik/tel_aviv/data/coco/2022_02_07_containers_filtered/coco_labels_test.json',
        img_prefix='/ssd/Arik/tel_aviv/data/labeled/',
        classes=['opentrashcan', 'trashcontainer'],
        pipeline=[
            dict(type='LoadImageFromFile'),
            dict(
                type='MultiScaleFlipAug',
                img_scale=(960, 800),
                flip=False,
                transforms=[
                    dict(type='Resize', keep_ratio=False),
                    dict(type='RandomFlip'),
                    dict(type='DefaultFormatBundle'),
                    dict(type='Collect', keys=['img'])
                ])
        ]),
    test=dict(
        type='CocoDataset',
        ann_file=
        '/ssd/Arik/tel_aviv/data/coco/2022_02_07_containers_filtered//coco_labels_test.json',
        img_prefix='/ssd/Arik/tel_aviv/data/labeled/',
        classes=['opentrashcan', 'trashcontainer'],
        pipeline=[
            dict(type='LoadImageFromFile'),
            dict(
                type='MultiScaleFlipAug',
                img_scale=(960, 800),
                flip=False,
                transforms=[
                    dict(type='Resize', keep_ratio=False),
                    dict(type='RandomFlip'),
                    dict(type='DefaultFormatBundle'),
                    dict(type='Collect', keys=['img'])
                ])
        ]))
evaluation = dict(
    save_best='auto', interval=1, dynamic_intervals=[(40, 1)], metric='bbox')
work_dir = '/ssd/Arik/tel_aviv/training/mmlab/train/yolox_960x800'

[shinya7y]

YOLOX and its data augmentation require (height, width) order as input. https://github.com/open-mmlab/mmdetection/blob/98949809b7179fab9391663ee5a4ab5978425f90/mmdet/models/detectors/yolox.py#L104-L105 https://github.com/open-mmlab/mmdetection/blob/master/mmdet/datasets/pipelines/transforms.py

[ArikVoronovRazor]

YOLOX and its data augmentation require (height, width) order as input.

https://github.com/open-mmlab/mmdetection/blob/98949809b7179fab9391663ee5a4ab5978425f90/mmdet/models/detectors/yolox.py#L104-L105

https://github.com/open-mmlab/mmdetection/blob/master/mmdet/datasets/pipelines/transforms.py

You are right, that was the issue, thank you very much, I’m now able to train with non-square resolutions!

I think the shape order should be modified in the Yolox implementation to keep it consistent with the dataset processing pipeline (or at least raise some warning about that)

Thanks again, The issue is resolved.
