[CircleCI/CD] integration test in spark 3.3.1 fails due to some unknown reason

Problem

The following Failed integration test is observed when Circle-ci integration test workflow runs to test integrations for spark 3.3.1. (https://app.circleci.com/pipelines/github/OpenLineage/OpenLineage/5068/workflows/1cc23ca0-a3c6-4480-8de4-7efc7aa603f0/jobs/65033)

Upon inspecting the test failure, you will see the following message:

64% EXECUTING [10m 7s]io.openlineage.spark.agent.SparkContainerIntegrationTest [10] spark_v2_drop.py, pysparkV2DropTableStartEvent.json, pysparkV2DropTableCompleteEvent.json, true FAILED (11.8s)

The source code location for initiating this test is here: https://github.com/OpenLineage/OpenLineage/blob/a6c947854ddc5189eca8318ebec59343a5467bc9/integration/spark/app/src/test/java/io/openlineage/spark/agent/SparkContainerIntegrationTest.java#L324 The location for spark_v2_drop.py seems to be located here: https://github.com/OpenLineage/OpenLineage/blob/main/integration/spark/app/src/test/resources/spark_scripts/spark_v2_drop.py

and the test would expect the start event and complete event of ‘dropping’ the test table would result in:

1. job open_lineage_integration_v2_commands.drop_table in START event
2. job open_lineage_integration_v2_commands.drop_table in COMPLETE event

And that is what the integration test is trying to do all along. However, the results contain the following events:

1. job open_lineage_integration_v2_commands.create_table in START
2. job open_lineage_integration_v2_commands.create_table in COMPLETE
3. job open_lineage_integration_v2_commands.append_data in START
4. job open_lineage_integration_v2_commands.append_data in START
5. job open_lineage_integration_v2_commands.append_data in COMPLETE
6. job open_lineage_integration_v2_commands.append_data in COMPLETE

the file targeted is /tmp/v2_drop/db.drop_table_test Which obviously does NOT match with what is expected, and thus results in failure.

However, as outlined in this Circle CI/CD run: https://app.circleci.com/pipelines/github/OpenLineage/OpenLineage/5069/workflows/198010e0-cd25-4ea6-a8c2-d2ff017f223f/jobs/65039

spark_v2_drop.py, pysparkV2DropTableStartEvent.json, pysparkV2DropTableCompleteEvent.json, true PASSED

The same spark_v2_drop.py does run successfully without any problems.

So, the issue is that we do NOT exactly know what’s the difference between the succesful run vs. failed run in this integration test, but it looks like the failure is consistently happening, with some randomness (or we currently do not know if there is a pattern to this.)

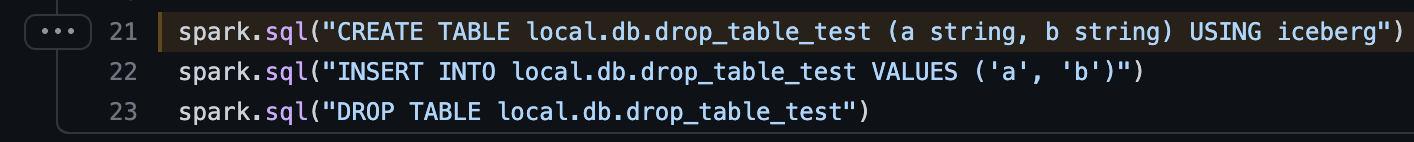

However, one thing that I noticed was the drop table script (spark_v2_drop.py) does create table, and append data. So, it is possible, that due to some(?) unknown issue, the drop table part never got through successfully (or hung ?) and thus the integration test might not have received proper drop table events which resulted in failure.

[pawel-big-lebowski]

ooh man, spark community reverted the change that was fixing this: https://github.com/apache/spark/commit/8ee12bb3d4682b386af30464180a0845bfc0c24d#diff-fdd1e9e26aa1ba9d1cc923ee7c84a1935dcc285502330a471f1ade7f3ad08bf9L109

[howardyoo]

I do no longer see this issue reoccurring, so closing this.
