Build process wont differantiate env and install on both

What kind of issue is this?

• Development Platform or Board. All issues (building, uploading, adding new boards, etc.) related to PlatformIO development platforms should be reported to appropriate repository related to your hardware https://github.com/topics/platformio-platform
• PlatformIO Core. If you’ve found a bug, please provide an information below.

Configuration

Operating system: MacOS 10.13.6 (17G4015)

PlatformIO Version (platformio --version): PlatformIO, version 3.6.7

Description of problem

I wanna use analogWrite on a ESP32 as well on a ESP8266. ESP32 needs an additional lib, because it’s (still) not implemented yet.

Steps to Reproduce

1. Setup new project with platformio.ini
2. Copy/Paste this into your `main.cpp
3. Compile
4. you will also see, that ESP32 AnalogWrite is present in heltec_wifi_kit_8 and .piolibdeps.

Actual Results

ESP8266 is not compiling, because it’s implementing ESP32 AnalogWrite, which is NOT in the ESP8266 env.

Expected Results

ESP32 AND ESP8266 should compile without ESP32 AnalogRead

If problems with PlatformIO Build System:

The content of platformio.ini:

[env]
monitor_speed = 115200

[env:heltec_wifi_kit_8]
platform = espressif8266
board = heltec_wifi_kit_8
framework = arduino
build_flags = -DESP8266


[env:heltec_wifi_kit_32]
platform = espressif32
board = heltec_wifi_kit_32
framework = arduino
lib_deps = ESP32 AnalogWrite
build_flags = -DESP32

Source file to reproduce issue:

#include <Arduino.h>
#ifdef ESP32
    #include <analogWrite.h>  // <<<<---- SHOULD ONLY BE INCLUDED ON ESP32
#endif // ESP32

int brightStep = 1;
int brightness = 0;

void setup()
{
}

void loop()
{
    brightness += brightStep;
    if (brightness == 0 || brightness == 255)
    {
        brightStep = -brightStep;
    }

    analogWrite(LED_BUILTIN, brightness);
    delay(10);
}

Additional info

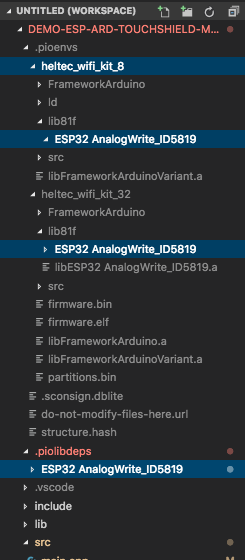

Here is a list of libs automatically implemented on build time: As you can see heltec_wifi_kit_8 also includes ESP32 AnalogWrite which should not be there:

[ivankravets]

You do not need to fix custom path. Be sure that there are no multiple PIO Cores in a system. After that, please remove ~/.platformio/penv and restart VSCode. If you enbaled dev/version in IDE before, installer with install the latest dev/ version autoamtically.

Please re-test.

[exocode]

@ivankravets: YES. I only had to fix my customPATH in the settings. Hope this gets fixed in the stable version 😃
