Library Dependency Finder includes commented out libraries

Configuration

Operating system: Windows 10 x64

PlatformIO Version : PlatformIO, version 4.3.4 + VS Code 1.46.0

Description of problem

I’ve found what I think is a bug. If I comment out an #include with library in one-line block comment (e.g. /*#include <EEPROM.h>*/), the library gets removed from Dependecy graph. This is correct behavior.

However, if I comment the #include with a multiline block comment like this:

/*
 #include <EEPROM.h>
*/

then the library still ends up in dependency graph, gets compiled etc.

Steps to Reproduce

1. Create a simple project. I used an Arduino framework for Arduino Uno board. Leave all settings as default.
2. Try the following code in main.cpp:

#include <Arduino.h>

/* #include <EEPROM.h> */

void setup() {
  // put your setup code here, to run once:
}

void loop() {
  // put your main code here, to run repeatedly:
}

1. Build. The output includes lines

Scanning dependencies...
No dependencies

1. Now try another code (only 2 newlines added):

#include <Arduino.h>

/*
#include <EEPROM.h>
*/

void setup() {
  // put your setup code here, to run once:
}

void loop() {
  // put your main code here, to run repeatedly:
}

1. Build. This time the library gets included in build:

Scanning dependencies...
Dependency Graph
|-- <EEPROM> 2.0

Expected Results

In both cases the library should not be included in build.

Additional info

I’m using PIO from VS Code and installed all stuff via VS Code.

[TD-er]

Just for reference: docs.platformio.org - ldf-mode

I will try to use the chain+ mode. But in the past I have also looked into this and then the chain+ mode (or the deep(+) mode) had some issues. Sadly I don’t remember what those were.

[Misiu]

@TD-er not sure if this help, but I created a quick test and I’ve added lib_ldf_mode = chain+ to platform.ini.

main.cpp:

#include <Arduino.h>

#ifdef USE_LITTLEFS
#include <FS.h>
#include <LittleFS.h>
#else
#include <FS.h>
#endif

void setup() {
  // put your setup code here, to run once:
}

void loop() {
  // put your main code here, to run repeatedly:
}

platform.ini file:

[env:d1_mini]
platform = espressif8266
board = d1_mini
framework = arduino
build_flags = -D USE_LITTLEFS
lib_ldf_mode = chain+

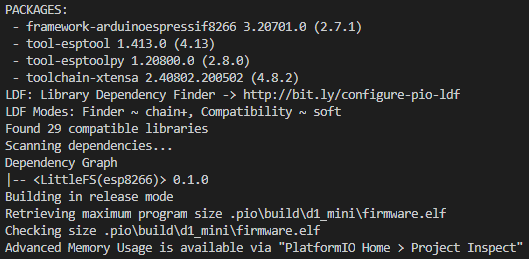

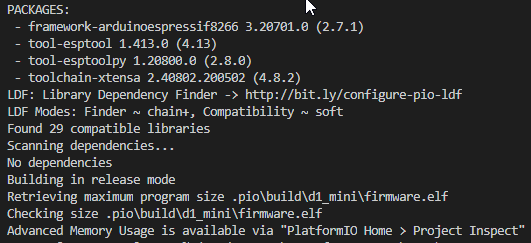

result:

platform.ini:

[env:d1_mini]
platform = espressif8266
board = d1_mini
framework = arduino
build_flags = -D NOT_USE_LITTLEFS; this has changed
lib_ldf_mode = chain+

I hope this helps 🙂
