[DataModel] Compound Foreign Keys and Index Definitions

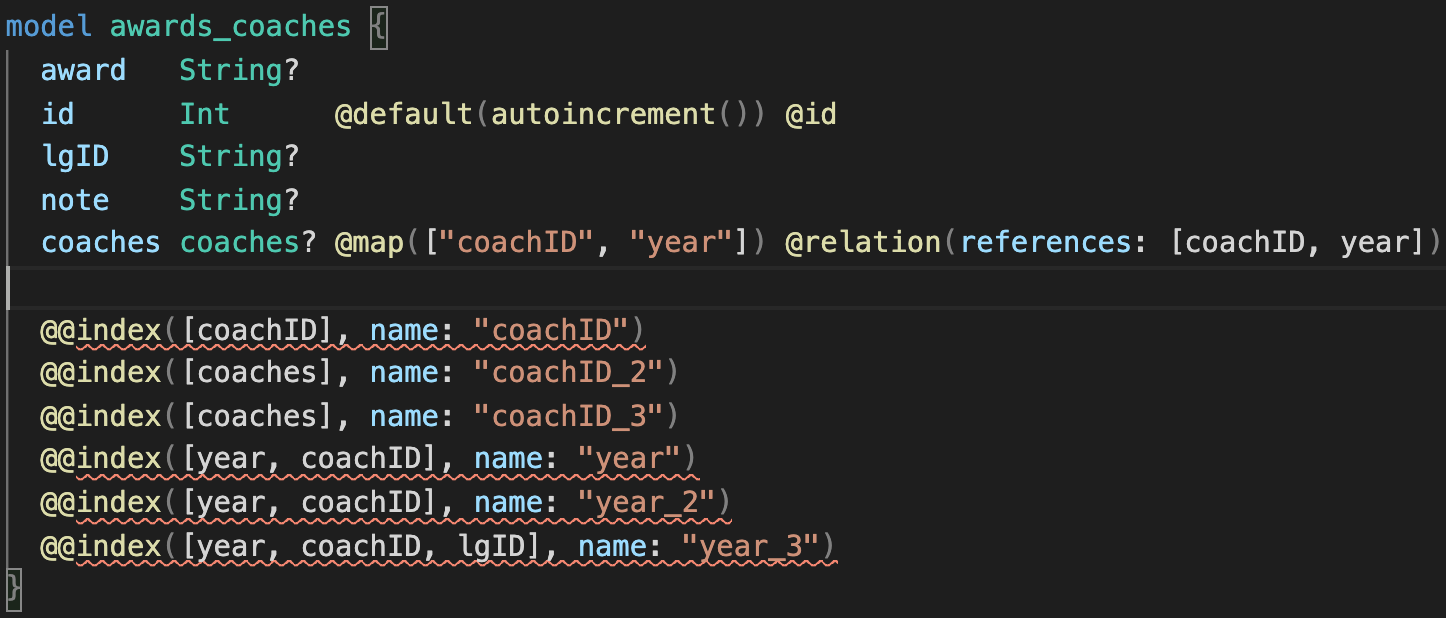

The @@index definition currently has to refer to datamodel fields, but in the case of compound foreign keys two or more database fields are collapsed into one datamodel field. The indexes on the other hand can refer to the underlying database fields which are not in the datamodel (apart from being in the @map).

The @@unique definition theoretically has the same issue, but since we do not render it in the case of relations but instead make the relation 1:1 this issue does not surface.

[mavilein]

I would like to suggest one further simplification to the suggested syntax. To me the current syntax proposal feels very heavy for those reasons:

• What’s the purpose of the name of the sub relation field when it does not exposed in the client? E.g. for @relation(fields: [sub_relation_field]) @map(["relation_column"]) the name seems to be irrelevant.
• The syntax seems very dense. Name conflicts with other fields are very hard to spot.
• With this approach we have 3 types of fields: scalar, relation and sub relation fields.

I would like to suggest an approach with which we could stick to the two types scalar and relation field. My suggestion is to turn relation fields into a completely virtual concept. Here are the rules i have in mind:

• Every column of an underlying table gets mapped to a simple scalar field. Even those ones that are part of a foreign key and therefore represent a relation.
• Relation Fields can be constructed by building upon those scalar fields. This way relation fields become very similar to foreign keys in SQL. A foreign key like FOREIGN KEY (a, b) REFERENCES OtherTable(col1, col2) is turned into relationField OtherTable @relation(fields: [a,b], references: [col1, col2].
• Scalar fields that are used within a relation field become read only. (as already suggested by @sorenbs earlier)

Here’s a more detailed example:

SQL schema

CREATE TABLE post (
    id serial NOT NULL,
    author_first_name text NOT NULL,
    author_last_name text NOT NULL,
    PRIMARY KEY (id),
    FOREIGN KEY (author_first_name, author_last_name) REFERENCES user(first_name, last_name)
);

CREATE TABLE user (
    id serial NOT NULL,
    first_name text NOT NULL,
    last_name text NOT NULL,
    PRIMARY KEY (id),
    UNIQUE(first_name, last_name)
);

corresponding Prisma schema

model Post {
    id Int @id
    authorFirstName String @map("author_first_name")
    authorLastName String @map("author_last_name")
    editorId Int @map("editor_id")

   // a relation field referencing the compound unique of `User`
    author User @relation(fields: [authorFirstName, authorLastName], references: [firstName, lastName])
   // a relation field referencing the id of `User`
    editor User @relation(fields: [editorId], references: [id])

  @@map("post")
}

model User {
    id Int @id
    firstName String @map("first_name")
    lastName String @map("last_name")

    @@unique([firstName, lastName])
    @@map("user")
}

[do4gr]

Should be fixed by https://github.com/prisma/prisma-engines/pull/621
