Small inconsistency in the mpl drawer

See original GitHub issue

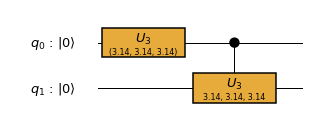

There is a small inconsistency how the parameters of a gate are showed in the matplotlib, with and without ‘(…)’.

qr = QuantumRegister(2, 'q')
circuit_all = QuantumCircuit(qr)
circuit_all.u3(pi, pi, pi, qr[0])
circuit_all.cu3(pi, pi, pi, qr[0], qr[1])
circuit_all.draw(output='mpl')

What is the expected enhancement?

If I have to choose, I would go with removing the parenthesis everywhere. But, for sure, it should be everywhere the same…

Issue Analytics

State:
Created 4 years ago
Comments:8 (4 by maintainers)

Top GitHub Comments

1reaction

1ucian0commented, Jul 30, 2019

Awesome! You will find the mpl drawer code in the visualization folder. Start by running the visualization tests in the test folder. Let me know if you need any help!

1reaction

baileytinchercommented, Jul 30, 2019

Interested in trying my hand at this to learn more about how Terra was wrote, but I haven’t worked inside this project’s source before. Any recommendation on a starting point for this (if you know one, otherwise I’ll poke around until I find something).

Thank you 😃
