Query Projection do not group all the children under same parent id when used with order by parent name

I have below query to read a list of objects containing parent child relationship

 OrderSpecifier<String> orderBy;
    if (SortOrder.ASC.equals(order)) {
      orderBy = definition.id.upper().asc();
    } else {
      orderBy = definition.id.upper().desc();
    }

newQuery().distinct().from(definition)
        .where(definition.clientId.in(clientId))
        .where(definition.id.in(ids))
        .orderBy(orderBy)
       .leftJoin(definition.aliases, alias)
        .transform(
            groupBy(definition.id).list(
                Projections.fields(
                    GroupDefinitionEntity.class,
                    definition.id,
                    definition.clientId,
                    definition.name,
                    definition.groupType,
                    definition.mnemonic,
                    definition.opaqueId,
                    list(Projections.fields(
                        AliasEntity.class,
                        alias.clientId,
                        alias.aliasId,
                        alias.aliasType,
                        alias.assigningAuthority,
                        alias.source).skipNulls())
                        .as(definition.aliases),
                    definition.createdDtTm,
                    definition.updatedDtTm)
                    .skipNulls()));

though when I execute this it doesn’t group all the children together and I get 2 objects with the same parent id

{
      "id": "958f-ba7f8897b890",
      "client_id": "9346-666d6ff39329",
      "name": " 00Testgrouppleaseignore-1",
      "group_type": "MULTIVALUED",
      "mnemonic": "UNKNOWN",
      "members": [],
      "aliases": [
        {
          "alias_id": "3214345",
          "assigning_authority": "9346-666d6ff39329",
          "source_type": "43db-b2ae-361aba8da88f",
          "alias_type": "EXTERNAL"
        },
        {
          "alias_id": "543114",
          "assigning_authority": "9346-666d6ff39329",
          "source_type": "43db-b2ae-361aba8da88f",
          "alias_type": "EXTERNAL"
        },
        {
          "alias_id": "98765431148",
          "assigning_authority": "9346-666d6ff39329",
          "source_type": "43db-b2ae-361aba8da88f",
          "alias_type": "EXTERNAL"
        },
        {
          "alias_id": "9876543114123",
          "assigning_authority": "9346-666d6ff39329",
          "source_type": "43db-b2ae-361aba8da88f",
          "alias_type": "EXTERNAL"
        }
      ],
      "tags": [],
      "created_at": "2018-06-28T21:15:17Z",
      "updated_at": "2018-06-28T21:15:17Z"
    }

and

{
      "id": "18420125-3f71-44f8-958f-ba7f8897b890",
      "client_id": "9346-666d6ff39329",
      "name": " 00Testgrouppleaseignore-1",
      "group_type": "MULTIVALUED",
      "mnemonic": "UNKNOWN",
      "members": [],
      "aliases": [
        {
          "alias_id": "9876543214",
          "assigning_authority": "451a-9346-666d6ff39329",
          "source_type": "43db-b2ae-361aba8da88f",
          "alias_type": "EXTERNAL"
        },
        {
          "alias_id": "98765432149",
          "assigning_authority": "9346-666d6ff39329",
          "source_type": "43db-b2ae-361aba8da88f",
          "alias_type": "EXTERNAL"
        }
      ],
      "tags": [],
      "created_at": "2018-06-28T21:15:17Z",
      "updated_at": "2018-06-28T21:15:17Z"
    }

I think the issue is with order by clause. I am ordering by on definition name which is a string. is this a known issue?

[shrds]

Update on this issue.

I have verified by adding this unit test

add a DummyFetchableQuery to AbstractGroupByTest.java

  protected static final DummyFetchableQuery<Tuple> USERS_W_UNORDERED_ROWS = projectable(
        row(null, "null post", 7, "comment 7"),
        row(1, "post 1", 1, "comment 1"),
        row(1, "post 1", 2, "comment 2"),
        row(1, "post 1", 3, "comment 3"),
        row(null, "null post", 8, "comment 8"),
        row(2, "post 2", 4, "comment 4"),
        row(2, "post 2", 5, "comment 5"),
        row(3, "post 3", 6, "comment 6")
    );

Then add below to GroupByListTest.java

@Test
    public void group_order_with_unordered_rows() {
        List<Group> results = USERS_W_UNORDERED_ROWS
            .transform(groupBy(postId).list(postName, set(commentId)));

        assertEquals(4, results.size());
    }

The test fails with below error

java.lang.AssertionError:
Expected :4
Actual   :5
 <Click to see difference>


	at org.junit.Assert.fail(Assert.java:88)
	at org.junit.Assert.failNotEquals(Assert.java:834)
	at org.junit.Assert.assertEquals(Assert.java:645)
	at org.junit.Assert.assertEquals(Assert.java:631)
	at com.querydsl.core.group.GroupByListTest.group_order_with_unordered_rows(GroupByListTest.java:56)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at org.junit.runners.model.FrameworkMethod$1.runReflectiveCall(FrameworkMethod.java:50)
	at org.junit.internal.runners.model.ReflectiveCallable.run(ReflectiveCallable.java:12)
	at org.junit.runners.model.FrameworkMethod.invokeExplosively(FrameworkMethod.java:47)
	at org.junit.internal.runners.statements.InvokeMethod.evaluate(InvokeMethod.java:17)
	at org.junit.runners.ParentRunner.runLeaf(ParentRunner.java:325)
	at org.junit.runners.BlockJUnit4ClassRunner.runChild(BlockJUnit4ClassRunner.java:78)
	at org.junit.runners.BlockJUnit4ClassRunner.runChild(BlockJUnit4ClassRunner.java:57)
	at org.junit.runners.ParentRunner$3.run(ParentRunner.java:290)
	at org.junit.runners.ParentRunner$1.schedule(ParentRunner.java:71)
	at org.junit.runners.ParentRunner.runChildren(ParentRunner.java:288)
	at org.junit.runners.ParentRunner.access$000(ParentRunner.java:58)
	at org.junit.runners.ParentRunner$2.evaluate(ParentRunner.java:268)
	at org.junit.runners.ParentRunner.run(ParentRunner.java:363)
	at org.junit.runner.JUnitCore.run(JUnitCore.java:137)
	at com.intellij.junit4.JUnit4IdeaTestRunner.startRunnerWithArgs(JUnit4IdeaTestRunner.java:68)
	at com.intellij.rt.execution.junit.IdeaTestRunner$Repeater.startRunnerWithArgs(IdeaTestRunner.java:47)
	at com.intellij.rt.execution.junit.JUnitStarter.prepareStreamsAndStart(JUnitStarter.java:242)
	at com.intellij.rt.execution.junit.JUnitStarter.main(JUnitStarter.java:70)


Process finished with exit code 255

There are two solutions to resolve the issue.

1. Ideal fix is to update the querydsl code to preserve the previously read row before creating a new Group object

 @Override
    public List<V> transform(FetchableQuery<?,?> query) {
        // create groups
        FactoryExpression<Tuple> expr = FactoryExpressionUtils.wrap(Projections.tuple(expressions));
        boolean hasGroups = false;
        for (Expression<?> e : expr.getArgs()) {
            hasGroups |= e instanceof GroupExpression;
        }
        if (hasGroups) {
            expr = withoutGroupExpressions(expr);
        }
        final CloseableIterator<Tuple> iter = query.select(expr).iterate();

        List<V> list = Lists.newArrayList();
        List<K> previouslyReadIds = Lists.newArrayList();
        GroupImpl group = null;
        K groupId = null;
        while (iter.hasNext()) {
            @SuppressWarnings("unchecked") //This type is mandated by the key type
            K[] row = (K[]) iter.next().toArray();
            if (group == null) {
                group = new GroupImpl(groupExpressions, maps);
                groupId = row[0];
                previouslyReadIds.add(row[0]);
            } else if (!Objects.equal(groupId, row[0]) && !previouslyReadIds.contains(row[0])) {
                list.add(transform(group));
                group = new GroupImpl(groupExpressions, maps);
                groupId = row[0];
                previouslyReadIds.add(row[0]);
            }
            group.add(row);
        }
        if (group != null) {
            list.add(transform(group));
        }
        iter.close();
        return list;
    }

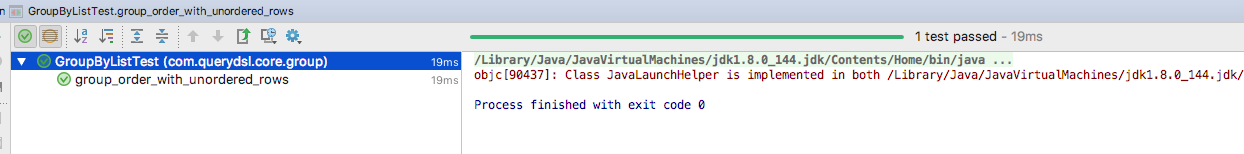

this fixes the tests.

OR 2. Add another OrderBy in your query to order by ids with the field you are sorting the results.

OrderSpecifier<String> orderBy = null;
    boolean descending = order.equals(SortOrder.DESC);
    if (sort != null) {
      switch (sort) {
        case ID:
          orderBy = descending ? group.id.desc() : group.id.asc();
          break;
        case MNEMONIC:
          orderBy = descending ? group.mnemonic.desc() : group.mnemonic.asc();
          break;
        case NAME:
          orderBy = descending ? group.name.lower().desc() : group.name.lower().asc();
      }
    } else {
      orderBy = descending ? group.id.desc() : group.id.asc();
    }

List<GroupEntity> groupEntities = newQuery().distinct().from(group)
        .where(group.clientId.in(clientId))
        .where(group.id.in(ids))
        .orderBy(orderBy)
        .leftJoin(group.aliases, alias)
        .orderBy(group.id
            .asc()) //this is necessary to maintain the resultset order when its grouped by field other than id
        .transform(
            groupBy(group.id).list(
                Projections.fields(
                    GroupEntity.class,
                    group.id,
                    group.rawGroupId,
                    group.definitionGroupId,
                    group.groupViewId,
                    group.name,
                    group.clientId,
                    group.groupType,
                    group.mnemonic,
                    group.opaqueId,
                    group.groupTypeUniquenessId,
                    list(Projections.fields(
                        AliasEntity.class,
                        alias.clientId,
                        alias.aliasId,
                        alias.aliasType,
                        alias.assigningAuthority,
                        alias.source).skipNulls())
                        .as(group.aliases),
                    group.createdDtTm,
                    group.updatedDtTm)
                    .skipNulls()));

[jwgmeligmeyling]

This issue is supposedly fixed by https://github.com/querydsl/querydsl/pull/2330 (according to the author of this issue). That pull request is now merged. Please reopen or file an new issue if the issue remains.
