`allOf` + `if/then/else` break when present at different levels.

See original GitHub issue

Prerequisites

[ x] I have read the documentation;
[ x] In the case of a bug report, I understand that providing a SSCCE example is tremendously useful to the maintainers.
[ x] Ideally, I’m providing a sample JSFiddle or a shared playground link demonstrating the issue.

Description

I tried to implement multiple if/then/else on nested objects.

While correctly working on nested objects, if I try to add a allOf on main object, this doesn’t work anymore.

Ex if you try to paste those schemas on the playground

allOf in nested object

Playground Link

{
  "type": "object",
  "properties": {
    "animal": {
      "enum": [
        "Cat",
        "Fish"
      ]
    },
    "venue": {
      "type": "object",
      "title": "Location",
      "properties": {
        "space": {
          "enum": ["inside", "outside"] ,
          "default": "outside"
        }
      },
      "allOf": [
        {
          "if": {"properties": {"space": {"const": "inside"}}},
          "then": {"properties": {"room": {"type": "string", "enum": ["bedroom", "living room"]}}}
        },
                {
          "if": {"properties": {"space": {"const": "outside"}}},
          "then": {"properties": {"room": {"type": "string", "enum": ["garden", "terrace"]}}}
        }
      ]
    }
  }
}

Still OK

allOf in main object

Playground link

{
  "type": "object",
  "properties": {
    "animal": {
      "enum": [
        "Cat",
        "Fish"
      ]
    }
  },
  "allOf": [
    {
      "if": {
        "properties": {
          "animal": {
            "const": "Cat"
          }
        }
      },
      "then": {
        "properties": {
          "food": {
            "type": "string",
            "enum": [
              "meat",
              "grass",
              "fish"
            ]
          }
        },
        "required": [
          "food"
        ]
      }
    },
    {
      "if": {
        "properties": {
          "animal": {
            "const": "Fish"
          }
        }
      },
      "then": {
        "properties": {
          "food": {
            "type": "string",
            "enum": [
              "insect",
              "worms"
            ]
          },
          "water": {
            "type": "string",
            "enum": [
              "lake",
              "sea"
            ]
          }
        },
        "required": [
          "food",
          "water"
        ]
      }
    },
    {
      "required": [
        "animal"
      ]
    }
  ]
}

NOT OK

allOf in both main and nested object

Playground link

{
  "type": "object",
  "properties": {
    "animal": {
      "enum": [
        "Cat",
        "Fish"
      ]
    },
    "venue": {
      "type": "object",
      "title": "Location",
      "properties": {
        "space": {
          "enum": ["inside", "outside"] ,
          "default": "outside"
        }
      },
      "allOf": [
        {
          "if": {"properties": {"space": {"const": "inside"}}},
          "then": {"properties": {"room": {"type": "string", "enum": ["bedroom", "living room"]}}}
        },
                {
          "if": {"properties": {"space": {"const": "outside"}}},
          "then": {"properties": {"room": {"type": "string", "enum": ["garden", "terrace"]}}}
        }
      ]
    }
  },
  "allOf": [
    {
      "if": {
        "properties": {
          "animal": {
            "const": "Cat"
          }
        }
      },
      "then": {
        "properties": {
          "food": {
            "type": "string",
            "enum": [
              "meat",
              "grass",
              "fish"
            ]
          }
        },
        "required": [
          "food"
        ]
      }
    },
    {
      "if": {
        "properties": {
          "animal": {
            "const": "Fish"
          }
        }
      },
      "then": {
        "properties": {
          "food": {
            "type": "string",
            "enum": [
              "insect",
              "worms"
            ]
          },
          "water": {
            "type": "string",
            "enum": [
              "lake",
              "sea"
            ]
          }
        },
        "required": [
          "food",
          "water"
        ]
      }
    },
    {
      "required": [
        "animal"
      ]
    }
  ]
}

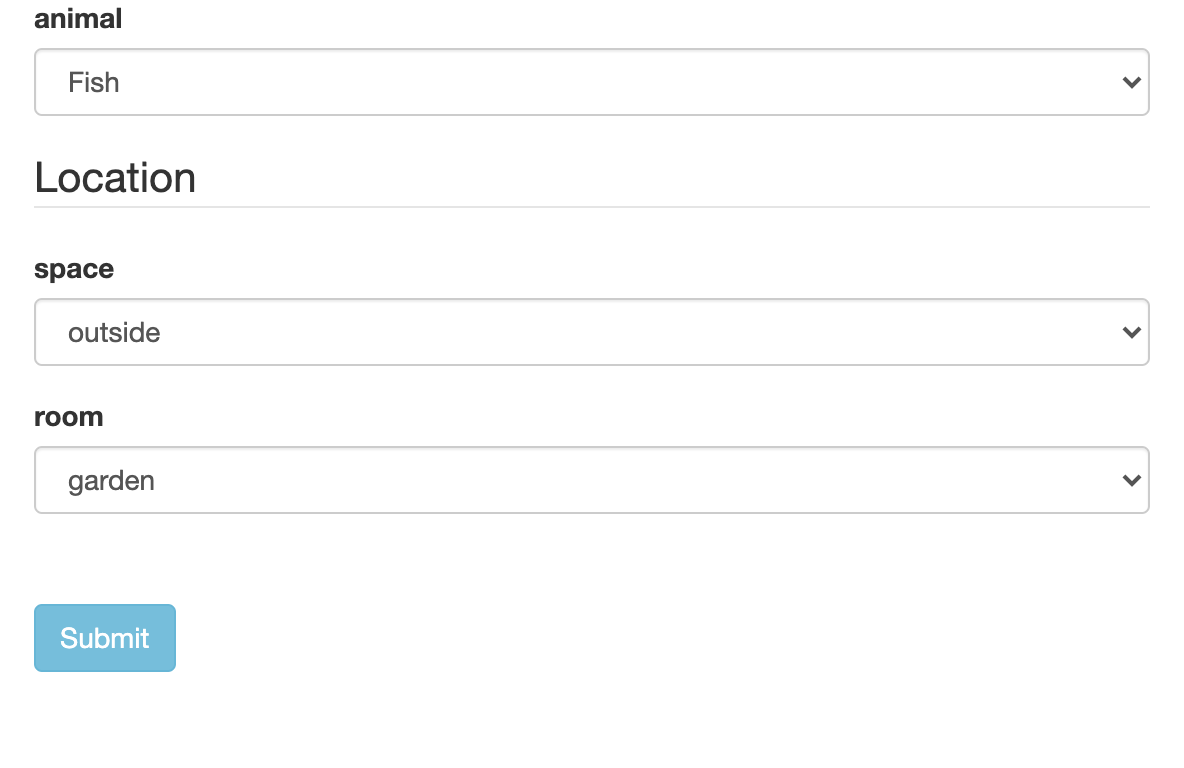

Food and water doesn’t appear anymore :

Expected behavior

Conditional properties food and water should also appear when nested objects contains allOf

Version

    "@rjsf/bootstrap-4": "^3.2.1",
    "@rjsf/core": "^4.0.1",

Issue Analytics

State:
Created 2 years ago
Comments:9 (1 by maintainers)

Top GitHub Comments

1reaction

phazebroekcommented, Sep 30, 2022

Using @rjsf/core 4.2.0, I’m seeing the same error reported for the following schema:

{
  "type": "object",
  "properties": {
    "liminar": {
      "type": "boolean",
      "title": "Há liminar?",
      "default": false,
      "enum": [
        true,
        false
      ]
    },
    "prazo": {
      "type": "string",
      "format": "date",
      "readOnly": true
    }
  },
  "allOf": [
    {
      "if": {
        "properties": {
          "liminar": {
            "const": true
          }
        }
      },
      "then": {
        "properties": {
          "prazo": {
            "readOnly": false
          }
        },
        "required": [
          "prazo"
        ]
      }
    }
  ]
}

However, if we not define “prazo” beforehand, it works:

{
  "type": "object",
  "properties": {
    "liminar": {
      "title": "Há liminar?",
      "type": "boolean",
      "enum": [
        true,
        false
      ]
    }
  },
  "allOf": [
    {
      "if": {
        "properties": {
          "liminar": {
            "const": true
          }
        }
      },
      "then": {
        "properties": {
          "prazo": {
            "type": "string",
            "format": "date",
            "readOnly": false
          }
        },
        "required": [
          "prazo"
        ]
      },
      "else": {
        "properties": {
          "prazo": {
            "type": "string",
            "format": "date",
            "readOnly": true
          }
        }
      }
    }
  ]
}

The observed behaviour makes sense to me and is not a bug but a feature imho. It will try to “merge” the readOnly property. But since it’s already defined, the value from “then” is ignored / overruled. As an alternative, you still can define the field upfront, but specify the readOnly true/false in either the “then” and “else” sections like so:

{
  "type": "object",
  "properties": {
    "liminar": {
      "type": "boolean",
      "title": "Há liminar?",
      "default": false,
      "enum": [
        true,
        false
      ]
    },
    "prazo": {
      "type": "string",
      "format": "date"
    }
  },
  "allOf": [
    {
      "if": {
        "properties": {
          "liminar": {
            "const": true
          }
        }
      },
      "then": {
        "properties": {
          "prazo": {
            "readOnly": false
          }
        },
        "required": [
          "prazo"
        ]
      },
      "else": {
        "properties": {
          "prazo": {
            "readOnly": true
          }
        }
      }
    }
  ]
}

1reaction

kfcaiocommented, Sep 12, 2022

Using @rjsf/core 4.2.0, I’m seeing the same error reported for the following schema:

{
  "type": "object",
  "properties": {
    "liminar": {
      "type": "boolean",
      "title": "Há liminar?",
      "default": false,
      "enum": [
        true,
        false
      ]
    },
    "prazo": {
      "type": "string",
      "format": "date",
      "readOnly": true
    }
  },
  "allOf": [
    {
      "if": {
        "properties": {
          "liminar": {
            "const": true
          }
        }
      },
      "then": {
        "properties": {
          "prazo": {
            "readOnly": false
          }
        },
        "required": [
          "prazo"
        ]
      }
    }
  ]
}

However, if we not define “prazo” beforehand, it works:

{
  "type": "object",
  "properties": {
    "liminar": {
      "title": "Há liminar?",
      "type": "boolean",
      "enum": [
        true,
        false
      ]
    }
  },
  "allOf": [
    {
      "if": {
        "properties": {
          "liminar": {
            "const": true
          }
        }
      },
      "then": {
        "properties": {
          "prazo": {
            "type": "string",
            "format": "date",
            "readOnly": false
          }
        },
        "required": [
          "prazo"
        ]
      },
      "else": {
        "properties": {
          "prazo": {
            "type": "string",
            "format": "date",
            "readOnly": true
          }
        }
      }
    }
  ]
}
