Spectral Clustering Algorithm documentation clarification

Description

The current implementation of Spectral Clustering does not correctly implement the algorithms presented in the referenced papers (references again added below for convenience). The implementation is supposed to produce an approximation to the normalized cut using the algorithm presented in (Shi and Malik 2000).

The current implementation takes the first k eigenvectors of the normalized laplacian matrix D^-1/2 L D^-1/2 as returned by spectral_embedding (https://github.com/scikit-learn/scikit-learn/blob/a24c8b464d094d2c468a16ea9f8bf8d42d949f84/sklearn/cluster/spectral.py#L259) and then uses k-means on the embedding to obtain a clustering. However, as can be seen for example in section 5.3 of (von Luxburg 2007), this is not the solution to the relaxed Ncut problem, but instead is the matrix that von Luxburg denotes by T. So while the current implementation uses the matrix T, the actual solution to the relaxed Ncut problem is obtained by using H=D^-1/2 T.

Possible solutions to making the algorithm true to the referenced papers:

• replace the current matrix maps with D^-1/2 maps before calling kmeans, where D is the degree matrix (https://github.com/scikit-learn/scikit-learn/blob/a24c8b464d094d2c468a16ea9f8bf8d42d949f84/sklearn/cluster/spectral.py#L259) but this is inefficient
• instead of obtaining a spectral embedding with the symmetric normalized laplacian, use the random walk normalized laplacian.
• obtain the generalized eigenvectors u with eigenvalues e, by computing Au=eBu and set A=L to the unnormalized laplacian matrix and B=D the degree matrix.
• normalize the rows of maps to 1, which would make this the spectral clustering algorithm of Ng, Jordan, and Weiss (2002)
• acknowledge the difference between implementation and papers in the comments if someone conducted experiments showing that this difference does not affect the quality of the obtained solutions.

References

Normalized cuts and image segmentation, 2000 Jianbo Shi, Jitendra Malik http://citeseer.ist.psu.edu/viewdoc/summary?doi=10.1.1.160.2324 A Tutorial on Spectral Clustering, 2007 Ulrike von Luxburg http://citeseerx.ist.psu.edu/viewdoc/summary?doi=10.1.1.165.9323 Multiclass spectral clustering, 2003 Stella X. Yu, Jianbo Shi http://www1.icsi.berkeley.edu/~stellayu/publication/doc/2003kwayICCV.pdf

[lobpcg]

Please see my answers below:

According to the source code, csgraph_laplacian with normed=True returns the symmetric normalized laplacian L_sym = D^-1/2 L D^-1/2. In spectral_embedding do we then solve L_sym u = lambda Du ? Or L_sym u = lambda u ?

It’s my case (II.2.b), so L_sym u = lambda u

It looks to me like we solve a generalized eigenvalue problem since we call lobpcg(laplacian, X, ... where X contains D.

No, X does not contain D. For generalized solve with lobpcg you need lobpcg(laplacian, X, D, ... see https://docs.scipy.org/doc/scipy/reference/generated/scipy.sparse.linalg.lobpcg.html

edit: btw I understand we can use unnormalized L and Lx = lambda x to obtain an approximation to RatioCut and we can use a normalized laplacian to approximate Ncut (in different ways depending on how we normalize and how we set up the eigenvalue problem).

Yes. In fact one can choose D independently of L, and D does not even have to be diagonal - that will still produce some good clustering solving Lu = lambda Du for some D, see https://sigport.org/documents/models-spectral-clustering-and-their-applications that tries to analyze how changing D affects the spectral clustering.

[SonicStark]

@DanBenHa

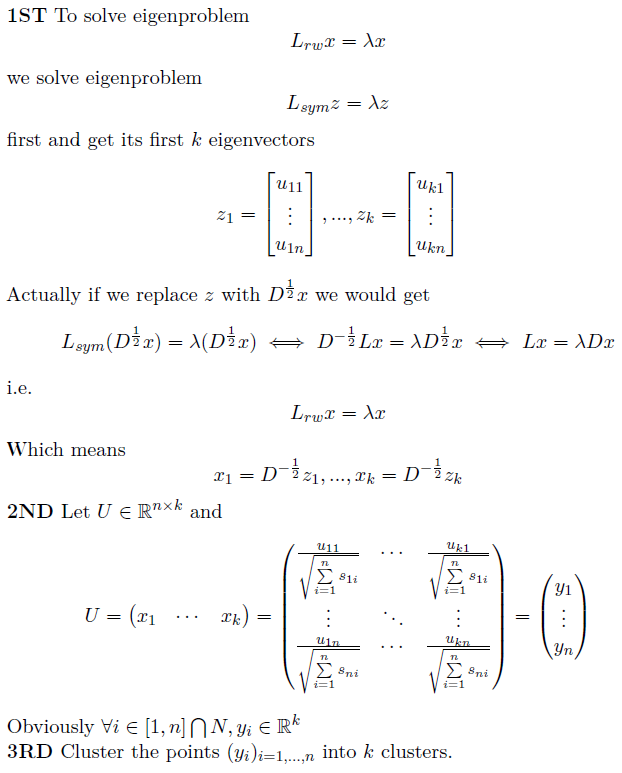

From an algebraic point of view, the actual implementation goes like this

References A Tutorial on Spectral Clustering, 2007 Ulrike von Luxburg http://citeseerx.ist.psu.edu/viewdoc/summary?doi=10.1.1.165.9323
