useAnimatedStyle does not re-render when sharedValue changes

Description

I am trying to create spotify kind of scroll view, where the list items are going on top of the first sticky item, then the first sticky item will go blurry on scroll. I implemented it in the native Animated RN API, and now want to convert it to reanimated. However I can’t seem to make the animation re-render on scroll.

this is the overall component:

  const scrollOffSet = useSharedValue(0);
  const scrollHandler = useAnimatedScrollHandler({
    onScroll: (event) => {
      scrollOffSet.value = event.contentOffset.y;
    },
  });
  const headerAnimatedStyle = useAnimatedStyle(() => {
    const result = {
      opacity: interpolate(scrollOffSet.value, [0, 80], [1, 0], Extrapolate.CLAMP),
      transform: [
        {
          scale: interpolate(scrollOffSet.value, [0, -80], [1, 2], Extrapolate.CLAMP),
        },
      ],
    };
    return result;
  });



return (
         <Animated.ScrollView
            stickyHeaderIndices={[0]}
            showsVerticalScrollIndicator={false}
            contentContainerStyle={[s.mt0, s.pt0]}
            style={s.bg_white}
            onScroll={scrollHandler}
            scrollEventThrottle={16}
          >
            <Animated.View
              style={[s.bg_white, s.flx_i, { zIndex: 50 }, headerAnimatedStyle]}
            >
              <View style={s.ph3}>
                <ProfileHeaderV2 />
              </View>
            </Animated.View>

            {/* unanimated scrollable items go here*/}
            <View style={[{ zIndex: 1000 }, s.bg_white]}>
            </View>
         </Animated.ScrollView>
 );

Expected behavior

On scroll, first item should go blurry, until the opacity is gone

Actual behavior & steps to reproduce

Doesn’t re-render at all. however if i scroll a bit, then save the code (force to re-render), the style applies. Am i allowed to have nested Animated.View in Animated.ScrollView? I’m not sure why this is not working.

also when i put console.log in scrollHandler, it is applying the scroll offset value on scroll. it’s just that the useAnimatedStyle is not re-rendering

i’m on iOS simulator iphone 13

Package versions

    "react-native": "^0.65.0-0",
    "react-native-reanimated": "^2.3.1",

• NodeJS: v16

[chinhfyb12]

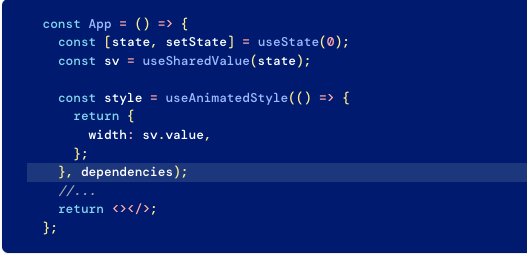

@robertwt7 you should add dependencies like this. it’s work!

[MehmetKaplan]

I am not sure if the cases are the same or not but I had a case with similar symptoms for the useAnimatedStyle. But my case does not have the useSharedValue functionality.

Logging the animated style, I observed viewDescriptors fields waitForInsertSync, sharableViewDescriptors, items are changing in the steps. My conclusion is Reanimated can be mutating the same object, which is not caught by the react as a re-render change. The log steps:

STEP-1:  {"viewDescriptors":{"batchToRemove":{},"tags":{},"waitForInsertSync":false,"waitForRemoveSync":false,"sharableViewDescriptors":{"value":[]},"items":[]},"initial":{"value":{"height":57.875,"width":57.875,"borderRadius":8.94217927472446}},"viewsRef":{"items":{}}}

STEP-2:  {"viewDescriptors":{"batchToRemove":{},"tags":{},"waitForInsertSync":false,"waitForRemoveSync":false,"sharableViewDescriptors":{"value":[]},"items":[]},"initial":{"value":{"height":57.875,"width":57.875,"borderRadius":8.94217927472446}},"viewsRef":{"items":{}}}

STEP-3:  {"viewDescriptors":{"batchToRemove":{},"tags":{},"waitForInsertSync":true,"waitForRemoveSync":false,"sharableViewDescriptors":{"value":[]},"items":[{"tag":43,"name":"RCTView"}]},"initial":{"value":{"height":57.875,"width":57.875,"borderRadius":8.94217927472446}},"viewsRef":{"items":{}}}

STEP-4:  {"viewDescriptors":{"batchToRemove":{},"tags":{},"waitForInsertSync":false,"waitForRemoveSync":false,"sharableViewDescriptors":{"value":[{"tag":43,"name":"RCTView"}]},"items":[{"tag":43,"name":"RCTView"}]},"initial":{"value":{"height":57.875,"width":57.875,"borderRadius":8.94217927472446}},"viewsRef":{"items":{}}}

My workaround

For my case I was lucky since I have no strict performance handicaps so I implemented following workaround. I introduced a new state variable, rerender and used it to signal react to re-render. But let me emphasize, if you will use this you’ll want to consider performance impact.

...
const [rerender, setRerender] = React.useState(0);
function incrementRerender() {
	let nextVal = rerender + 1;
	setRerender(nextVal);
}
...
const animatedStyles = useAnimatedStyle(() => {
	runOnJS(incrementRerender)(); // <<<<<<-----  Injected to signal react to re-render. (WORKAROUND)
	return {
		height: props.height,
		width: props.width,
		borderRadius: props.borderRadius,
	}
}, [props.height, props.width, props.borderRadius]);
...
return <PanGestureHandler
	rerender={rerender}
	onGestureEvent={gestureHandler}
	maxPointers={1}
	minDist={10}
>
	<Animated.View style={[constantStyles.tile, animatedStyles, animatedTransformStyles]}>
		{props.children}
	</Animated.View>
</PanGestureHandler>
