Optional<LocalDate> in model parameter not rendered as String

Version :

What kind of issue is this?

• Question. Is this a question about how to do a certain thing? (May be)
• Bug report. (may be)
  • Repository with minimal code for reproduction : link

Hi,

I don’t know if it is a bug or a misconfiguration but when i use an Òptional<LocalDate>inside a model like this (all the code is available in the linked repo) :

// Model
public class Modele {

        @DateTimeFormat(pattern = SwaggerConfiguration.LOCAL_DATE_IN_URL)
	private Optional<LocalDate> date;

         public Optional<LocalDate> getDate() {
		return date;
	}

	public void setDate(Optional<LocalDate> date) {
		this.date = date;
	}
}

// Controller
@Controller
@RequestMapping("/test")
public class SampleController {

	@GetMapping
	@ResponseBody
	public ResponseEntity<Object> test(@RequestParam(name = "date", required=false) @DateTimeFormat(pattern = SwaggerConfiguration.LOCAL_DATE_IN_URL) Optional<LocalDate> date) {
		return new ResponseEntity<>(HttpStatus.OK);
	}

	@GetMapping("/model")
	@ResponseBody
	public ResponseEntity<Object> test(Modele modele) {
		return new ResponseEntity<>(HttpStatus.OK);
	}
}

// Configuration
@Configuration
@EnableSwagger2
public class SwaggerConfiguration {

	public static final String LOCAL_DATE_IN_URL = "dd-MM-yyyy";
	public static final String LOCAL_DATE_TIME_IN_URL = "yyyy-MM-dd HH:mm:ss";

	@Bean
	public Docket api() {
		return new Docket(DocumentationType.SWAGGER_2)
			.select()
			.apis(RequestHandlerSelectors.any())
			.paths(PathSelectors.any())
			.build()
			.genericModelSubstitutes(Optional.class)
			.apiInfo(apiInfo());
	}

	@Bean
	public FormattingConversionService conversionService() {
		DefaultFormattingConversionService conversionService = new DefaultFormattingConversionService(false);

		DateTimeFormatterRegistrar registrar = new DateTimeFormatterRegistrar();
		registrar.setDateFormatter(DateTimeFormatter.ofPattern(LOCAL_DATE_IN_URL));
		registrar.setDateTimeFormatter(DateTimeFormatter.ofPattern(LOCAL_DATE_TIME_IN_URL));
		registrar.registerFormatters(conversionService);

		return conversionService;
	}

	private ApiInfo apiInfo() {
		return new ApiInfoBuilder().title("FBO Spring REST Sample with Swagger")
			.description("FBO Spring REST Sample with Swagger")
			.termsOfServiceUrl("https://groupefbo.com/")
			.version("1.0.0")
			.build();
	}
}

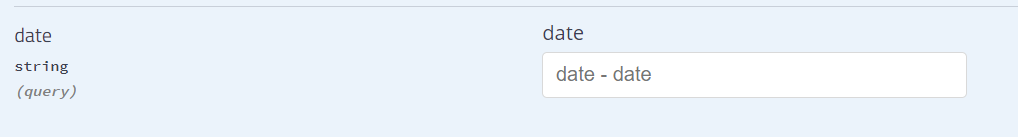

It works as expected when using directly an Optional<LocalDate> as a @RequestParam or when using a plain LocalDate field in the model.

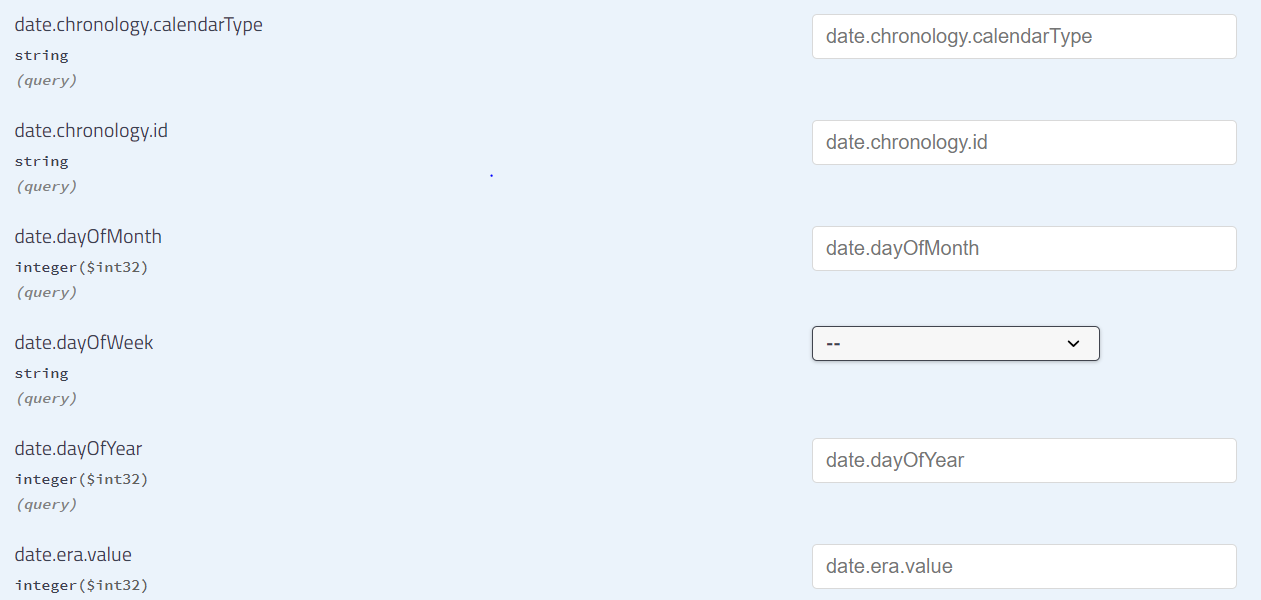

But when i use an Optional<LocalDate> as a field the ouput is :

Is there a configuration that can solve my issue ?

Thanks !

[bbeauvais]

Yes, it did ! Thanks. (Sorry for a long time before answering, the project was dropped off and I forgot)

[LukeButters]

ok:

import java.util.List;
import java.util.Optional;
import java.util.Set;

import java.lang.reflect.Type;
import java.net.URI;

import org.springframework.context.annotation.Bean;

import com.fasterxml.classmate.TypeResolver;

import springfox.documentation.schema.AlternateTypeRule;
import springfox.documentation.schema.AlternateTypeRules;
import springfox.documentation.schema.WildcardType;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spring.web.plugins.Docket;

public class Example {

    @Bean
    public Docket swaggerSpringMvcPlugin(ApiInfo apiInfo) {
        TypeResolver resolver = new TypeResolver();
        Docket result = null; // Get your Docket however you do that

       //-----------------------------------LOOK HERE----------------------------------------
        // Tell swagger that URI is just a string
        addAlternateTypeWithSomeGenerics(result, resolver, URI.class, String.class);
       //---------------------------------------------------------------------------------------------
       // All Optionals are unpacked and just returned as either the object or null.
        result.alternateTypeRules(new AlternateTypeRule(
            resolver.resolve(Optional.class, WildcardType.class),
            resolver.resolve(WildcardType.class)));

        return result;
    }

    /**
     * Tell swagger that we when the JSON is returned the original object will actually look like alternate
     * e.g. ZonedDateTime.class will be flattened into a String.class
     *
     * Use this method when you want to do this conversion for Set<OriginalType>, List<OriginalType>,
     * Optional<OriginalType> otherwise swagger wont do the conversion. I am not sure why.
     *
     * This doesn't work for Map. I think Map will be a pain because we have to tell it what to do
     * when the key is one type and the value is another type but we would want to handle
     * Map<CollectionId, ZonedDateTime> in such a way that CollectionId maps to string by one rule
     * and ZonedDateTime maps to string by another rule but swagger doesn't allow two rules to apply
     * to one thing! I think we would need to do:
     * https://github.com/springfox/springfox/issues/2287#issuecomment-373990884
     * for maps.
     *
     * Maybe in the future we would need to do it anyway depending how complicated the responses get.
     *
     * @param docket
     * @param typeResolver
     * @param original
     * @param alternate
     */
    public void addAlternateTypeWithSomeGenerics(Docket docket, TypeResolver typeResolver, Type original, Type alternate) {
        // For all examples we will pretend original is Date and alternate is String
        // to make it easier to understand what is happening

        // e.g. if swagger sees Date convert it to String
        docket.alternateTypeRules(AlternateTypeRules.newRule(original, alternate));

        // e.g. if swagger sees Set<Date> convert it to Set<String>
        docket.alternateTypeRules(
                new AlternateTypeRule(typeResolver.resolve(Set.class, original),
                                    typeResolver.resolve(Set.class, alternate)));

        // e.g. if swagger sees List<Date> convert it to List<String>
        docket.alternateTypeRules(
            new AlternateTypeRule(typeResolver.resolve(List.class, original),
                                typeResolver.resolve(List.class, alternate)));

        // We will later tell swagger that optionals are all unpacked but remember swagger is not recursive so
        // we must again tell it for this specific type what it unpacks to e.g. Optional<Date> maps to String
        // e.g. if swagger sees Optional<Date> convert it to String
        docket.alternateTypeRules(
            new AlternateTypeRule(typeResolver.resolve(Optional.class, original),
                                typeResolver.resolve(alternate)));
    }
}

Note that a big down side exists where you get ride of some type information e.g. your api doc know longer knows what part of a model is a URI for example it only knows it is a String. This is the pain I have https://github.com/springfox/springfox/issues/2987 that might not be an issue for you though.
