NodeJS approach to producing SVGs

So what’s the feature? Some documented way to produce SVGs from state machines in Node.

Is this related to a problem? If so, what? The jssm-vis-demo, while good at quickly visualizing and getting started, is not useful for more serious work. Closing the browser windows destroys all progress. Describe the solution you’d like Currently, I’ve pulled the dot function out of src/ts/jssm-viz.ts in https://github.com/StoneCypher/jssm-viz/, and imported that function into my project for generating SVGs. I saved the code as js, removing the few ts type references. I then used spawn imported from child_process to run GraphViz’ dot executable on the .dot file I produce to get an svg. Describe alternatives you’ve considered I tried using jssm-viz, but it died without error messages in Node. Additional context as you see fit

[StoneCypher]

This is now implemented in jssm-viz and the cli is mostly done

The github action is also mostly done

[StoneCypher]

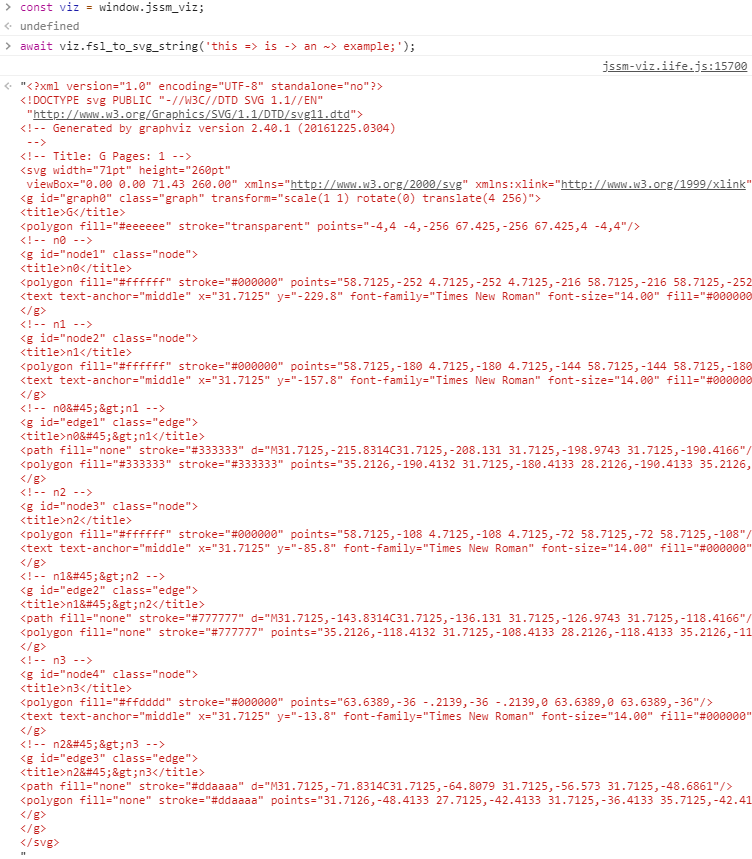

Actually, there’s a live instance of jssm-viz bound to window on graph explorer, so you can just open a developer console and try it there

const viz = window.jssm_viz;
await viz.fsl_to_svg_string('this => is -> an ~> example;');

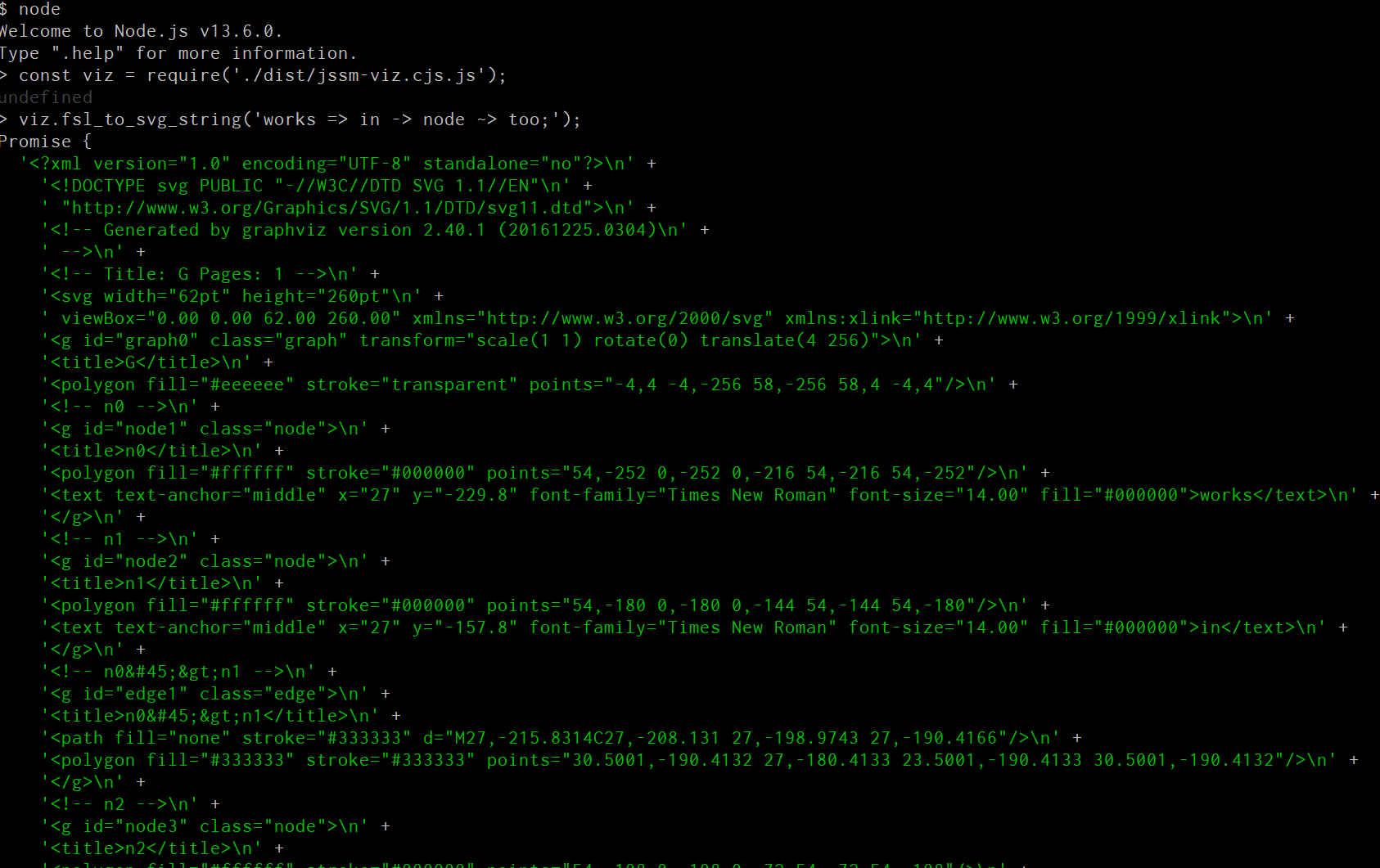

works in node too
